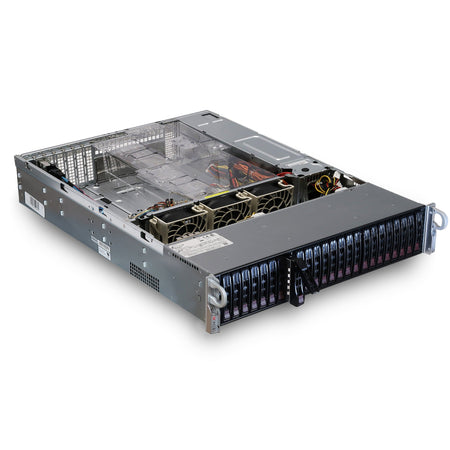

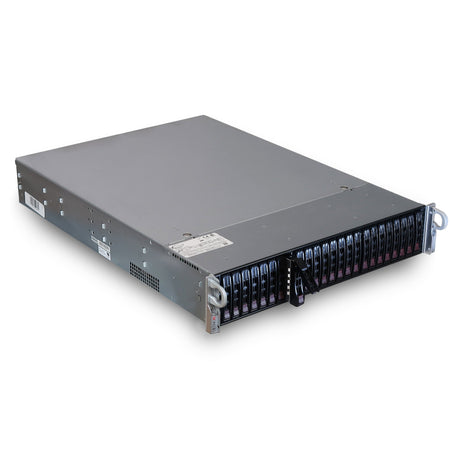

Supermicro SuperChassis 216BE1C-R741JBOD 2U 24 Bay JBOD SFF SAS 12Gb/s Storage Chassis | 24x 2.5" SAS/SATA Front Loading Expansion Enclosure
Supermicro SuperChassis 216BE1C-R741JBOD 2U 24 Bay JBOD SFF SAS 12Gb/s Storage Chassis | 24x 2.5" SAS/SATA Front Loading Expansion Enclosure
How We Test
Every unit is diagnostic-tested and verified healthy before shipment. Learn about our full testing process ↓
Supermicro 216BE1C-R741JBOD
Enclosure Condition: Refurbished, all ports tested, all functions working
Enclosure Warranty: 90 Days
Drive Condition / Warranty: Varies, check selections
Supermicro 216BE1C-R741JBOD is a high-performance storage chassis designed to meet the demands of today's data-driven businesses. Featuring a robust and scalable architecture, this 2U rackmount enclosure supports up to 24 hot-swappable 2.5" SAS/SATA drives for maximum storage capacity. With advanced airflow optimization and redundant power supplies, the 216BE1C-R741JBOD ensures reliable operation and easy maintenance. This expansion enclosure is ideal for data-intensive applications such as cloud computing, archive storage, and high-performance data duplication. Trust Supermicro's 216BE1C-R741JBOD to deliver the performance, reliability, and flexibility your business needs to stay on top of your data storage.
Key Features
- 2U Storage JBOD Chassis with capacity 24 x 2.5" hot-swappable HDDs bays
- Single Expander Backplane Boards support SAS3/2 or SATA3 HDDs with 12Gb/s throughput
- 4 x Mini-SAS HD ports for Internal / External Cascading Expander Combination for high performance, high availability or high redundancy requirements
- 1x IPMI port for Remote System Power on/off and system monitoring
- Support NTP for time synchronization & RTC battery backup
- 740W (1+1) 95% efficient Platinum level power supplies

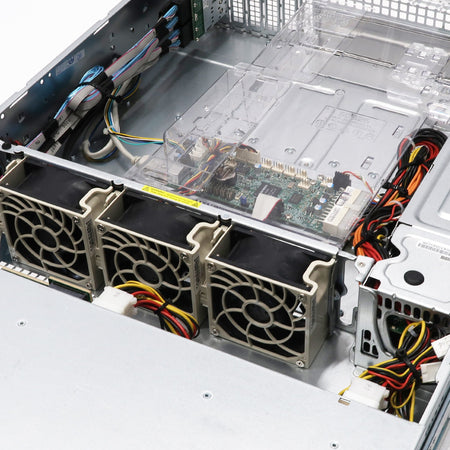

- 3 x 80mm high efficient hot-swappable fans for best system cooling
- Ideal for Cloud backup, data Replication or High density Archive Storage Applications
Qualified SAS HBA / controller:
- Broadcom / LSI 9300-8E - 12Gb/s 2-external ports SAS3 HBA
- Broadcom / LSI 9380-8E - 12Gb/s 2-external ports SAS3 RAID Controller
| Selection | Drive Model | Warranty |
| Refurbished 1.92TB SATA | Samsung PM863a MZ7LM1T9HMJP | 90 Day Warranty |
Disclaimer
Some references may appear on this website or product descriptions to trademarks belonging to others not affiliated with ServerPartDeals.com (SPD), including references which may not display the ® symbol. All third-party trademarks (including logos and icons) referenced by SPD remain the property of their respective owners. Unless specifically identified as such, SPD’s use of third-party trademarks does not indicate any relationship, sponsorship, or endorsement between SPD and the owners of these trademarks. Any references by SPD to third party trademarks is to identify the corresponding third-party goods and/or services and shall be considered nominative fair use under trademark law.Warning
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
This animation is a visual aid only and does not represent the actual testing methodology, sequence, or results for this drive.
We test every JBOD enclosure before you do.
Every JBOD enclosure Server Part Deals sells passes an internal 4-stage testing protocol before it ships. While many resellers stop at a basic power-on check, we validate every drive bay, backplane connection, SAS expander, power supply, and cooling component. Each enclosure is tested under sustained operation to confirm reliable connectivity, airflow, and system stability.
Stage 1: Physical Inspection
- Chassis and structural inspection
- Drive-bay and caddy alignment check
- SAS, power, and management-port inspection
- Fan, power-supply, and cable inspection
Stage 2: Hardware Validation
- Backplane and SAS expander detection
- Drive-bay connectivity verification
- Power-supply and fan-status review
- Firmware and enclosure-ID validation
Stage 3: Throughput Testing
- Multi-drive read/write cycles
- SAS link-speed validation
- Concurrent bay-load testing
Stage 4: Stability & Bay Testing
- Full drive-bay population scan
- Link-error and disconnect monitoring
- Temperature and airflow verification
- Final enclosure and inventory check
