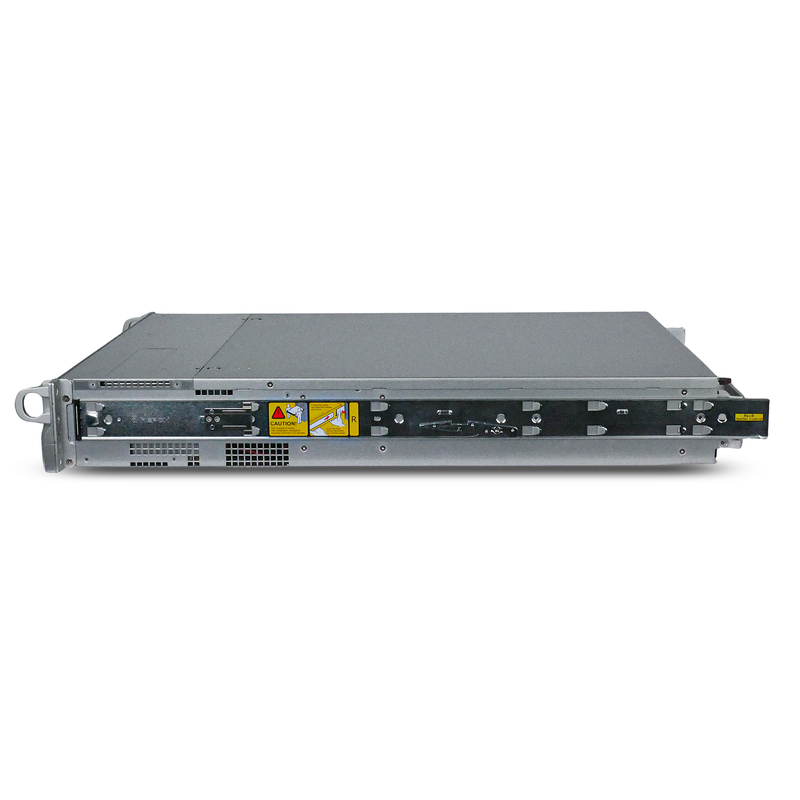

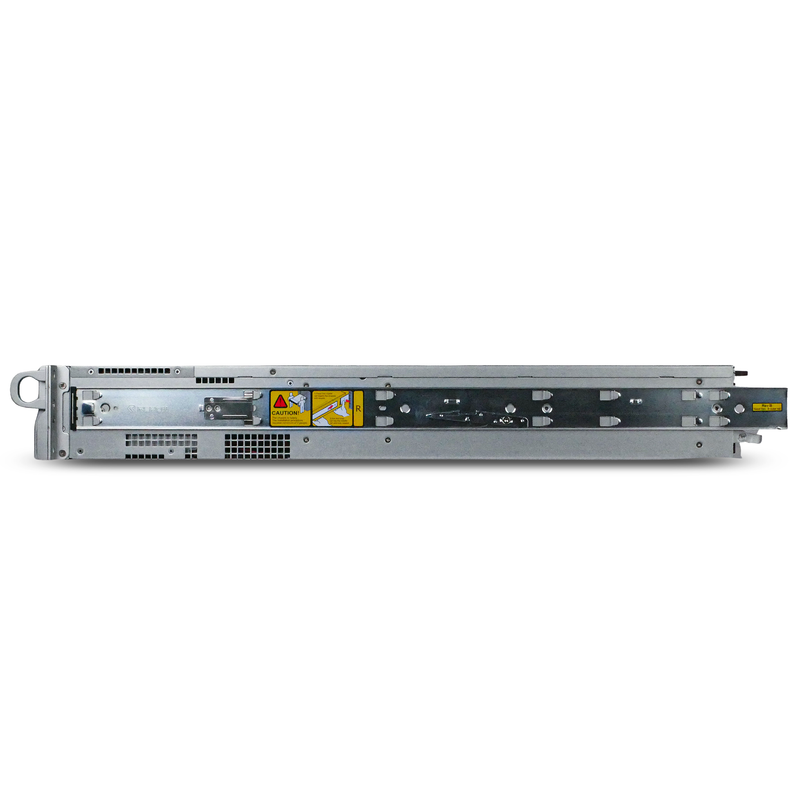

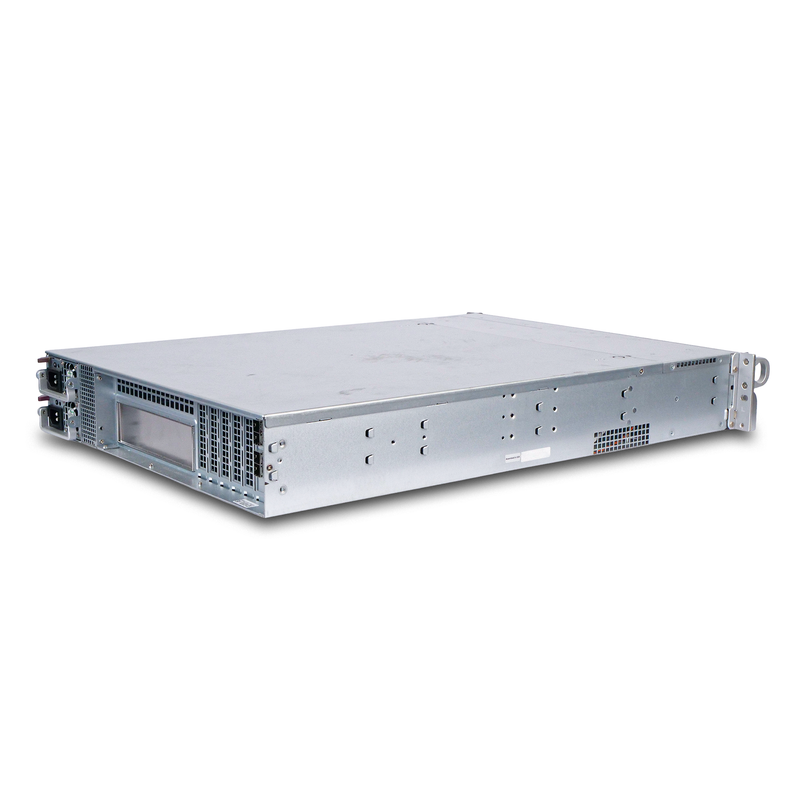

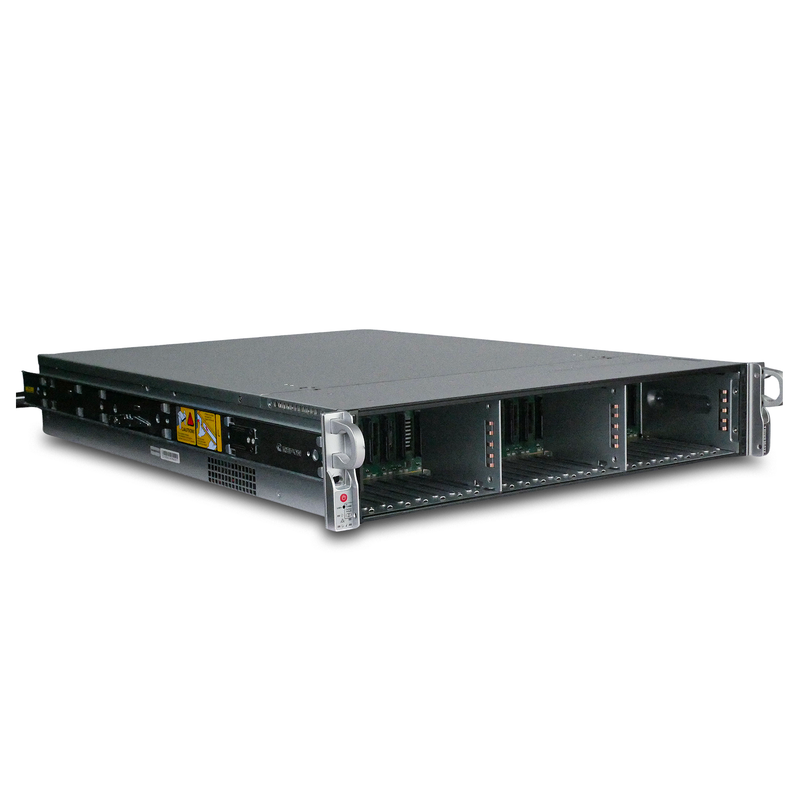

Supermicro SC216B 24-Bay 2.5" SAS/SATA JBOD 2U Rackmount Storage Enclosure CSE-216BE1C-R609JBOD | 24-Bay Data Center JBOD Enclosure (Refurbished)
Supermicro SC216B 24-Bay 2.5" SAS/SATA JBOD 2U Rackmount Storage Enclosure CSE-216BE1C-R609JBOD | 24-Bay Data Center JBOD Enclosure (Refurbished)
How We Test
Every unit is diagnostic-tested and verified healthy before shipment. Learn about our full testing process ↓
About this item
Supermicro CSE-216BE1C-R609JBOD — Single-Expander Storage Array (JBOD Only)

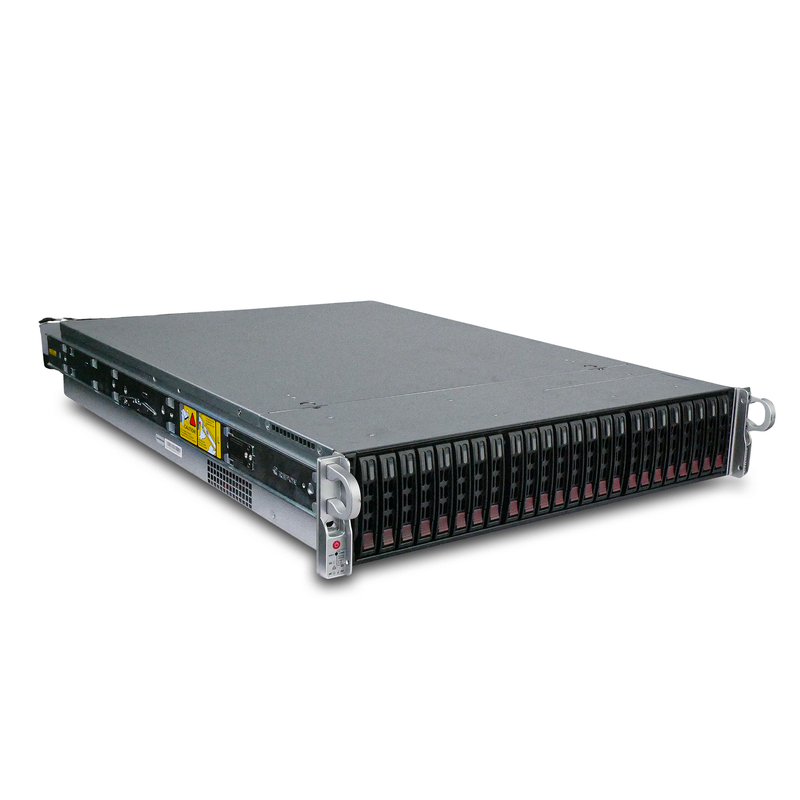

This Supermicro 2U 24-bay JBOD enclosure is an enterprise-grade, space-efficient storage solution designed for high-performance and scalable data environments. Built around a SAS3 infrastructure, it delivers reliable, high-speed disk expansion for servers requiring flexible storage configurations without integrated RAID dependency.
Highlights

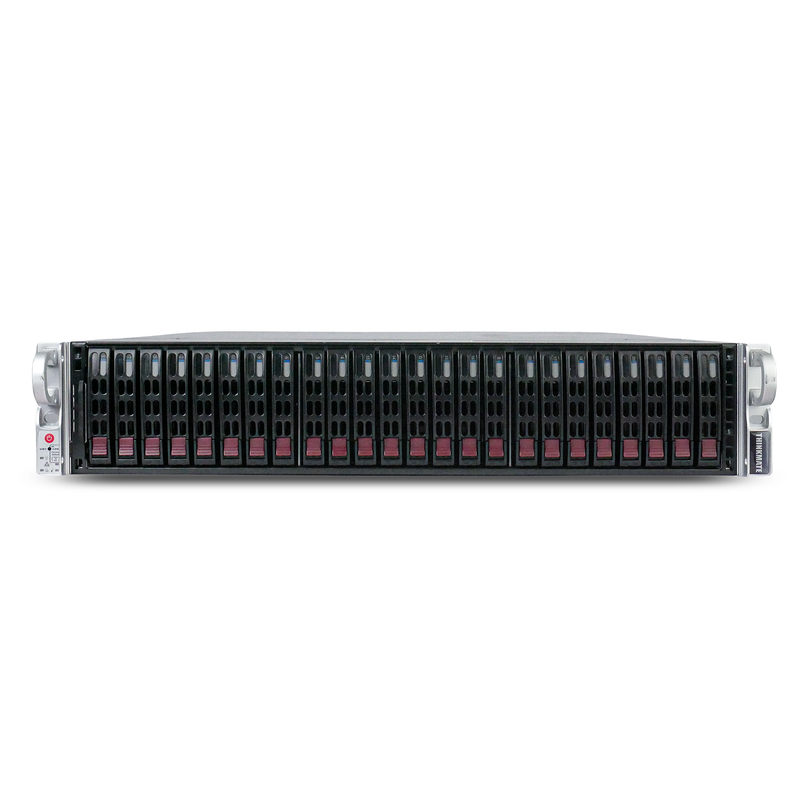

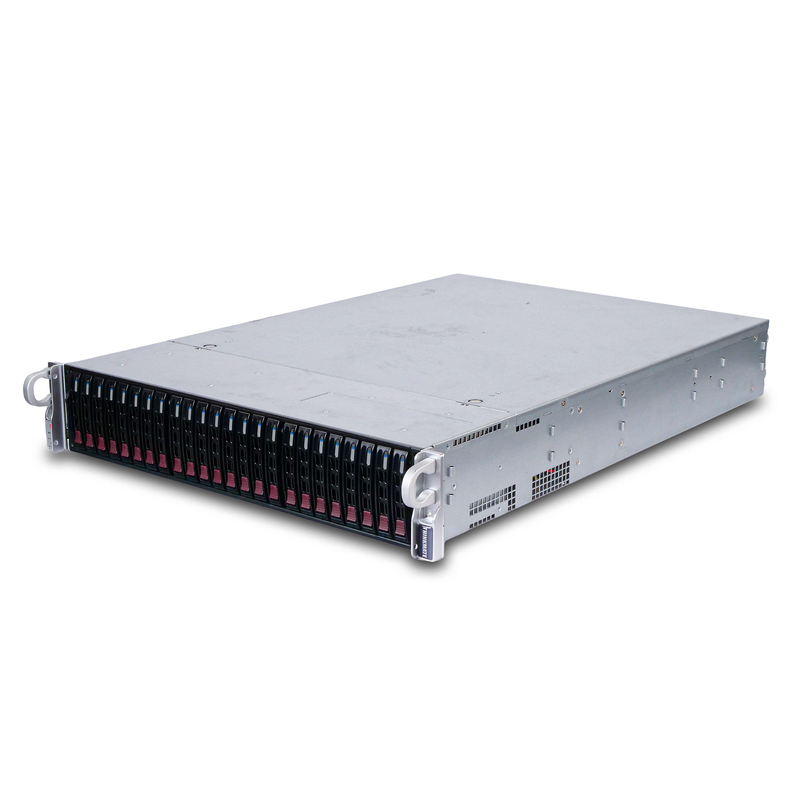

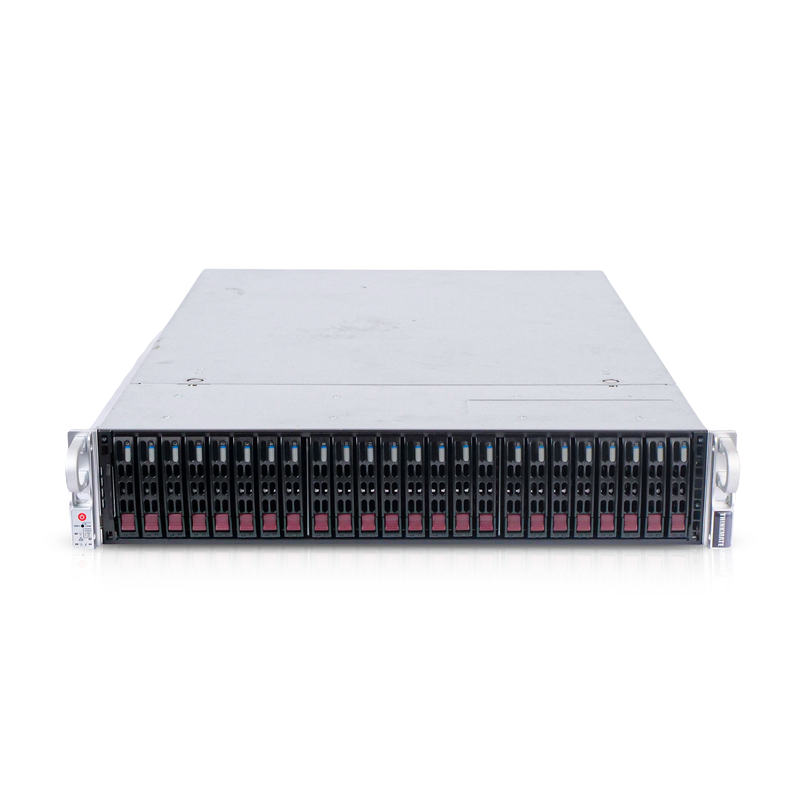

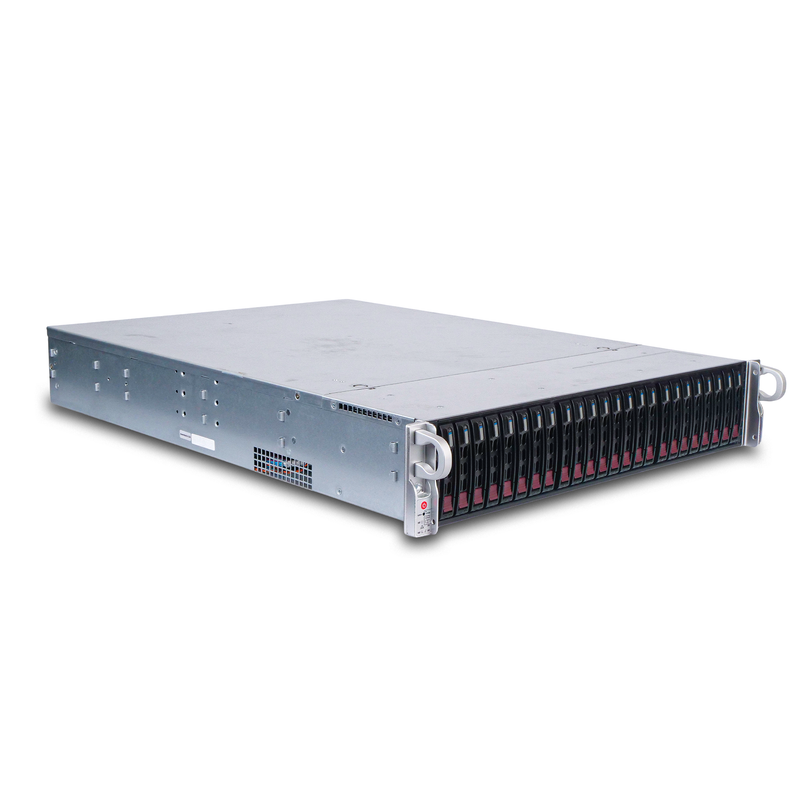

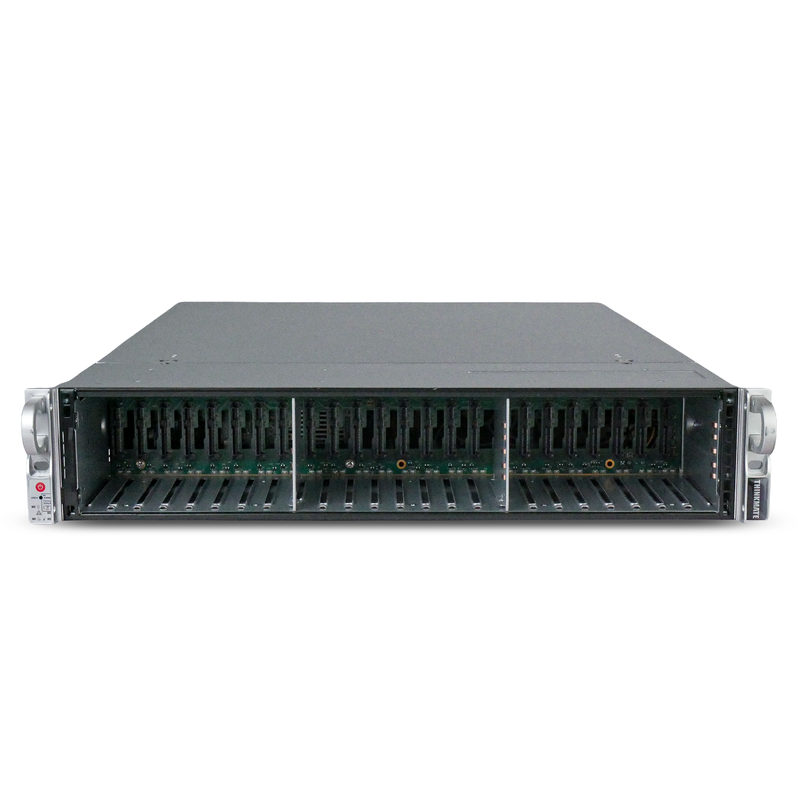

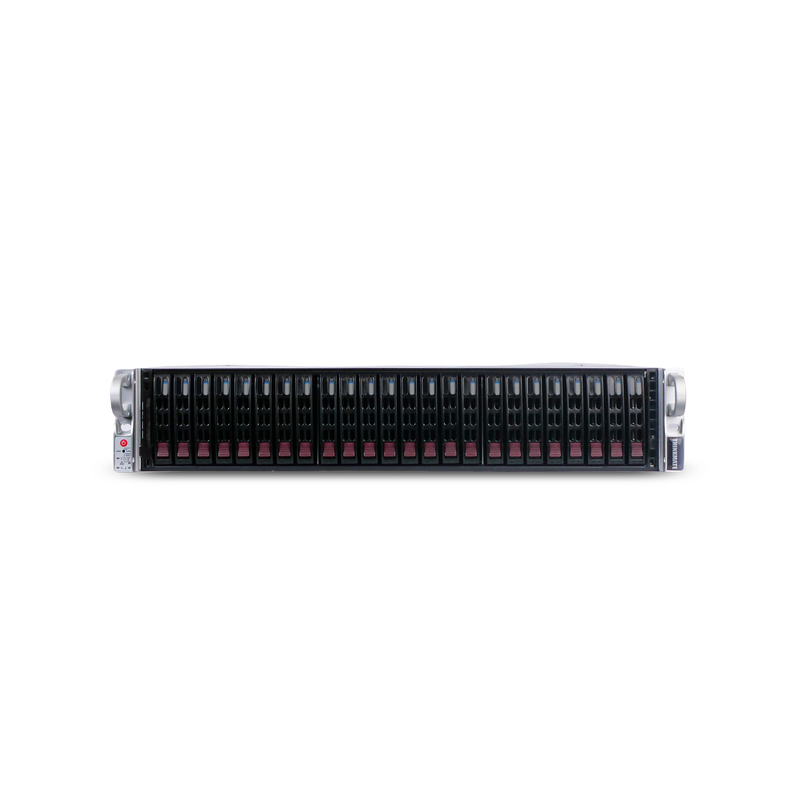

- Compact High-Density 2U Chassis: Supports up to 24 hot-swappable 2.5" SAS/SATA drives in a space-saving 2U rackmount form factor, ideal for dense data center deployments.

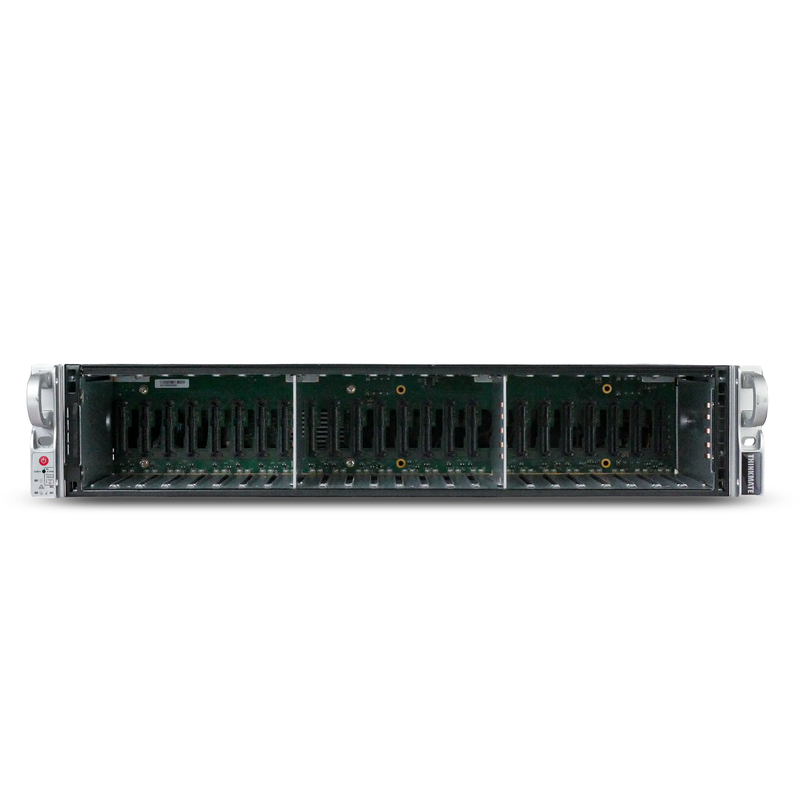

- SAS3 Expander-Based Architecture: Equipped with a 24-port SAS3 (12Gbps) single-expander backplane, enabling efficient data routing and high-bandwidth connectivity across all drives via a reduced number of external SAS links.
- Flexible Drive Compatibility: Supports both SAS and SATA 2.5" drives, allowing a mix of high-performance SSDs and capacity-focused HDDs depending on workload requirements.
- JBOD-Only Operation: Functions purely as a JBOD enclosure with no built-in RAID controller, giving full control to the host system or external SAS HBA/RAID controller for storage configuration.

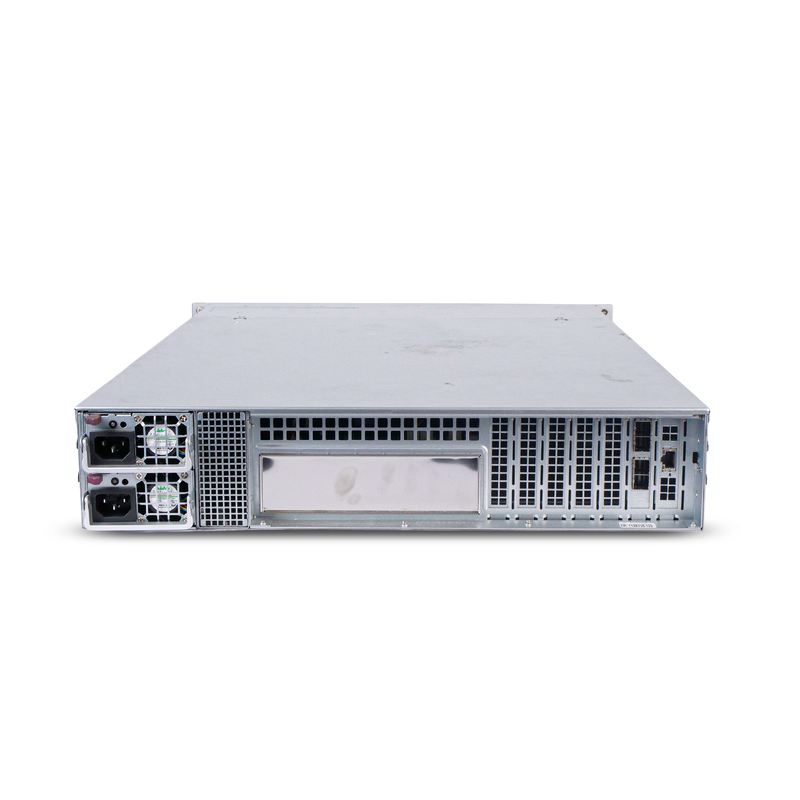

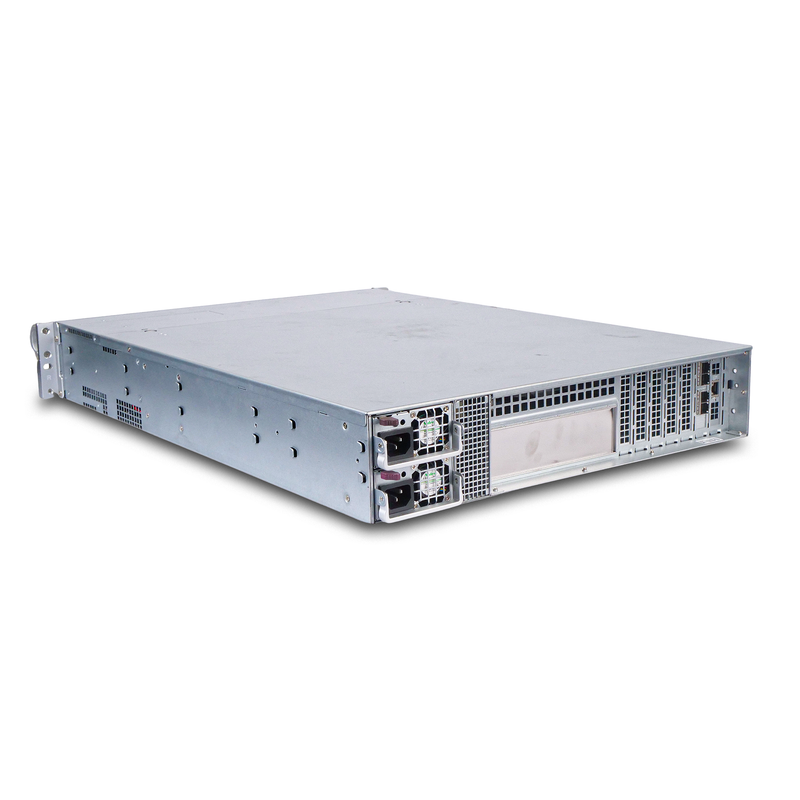

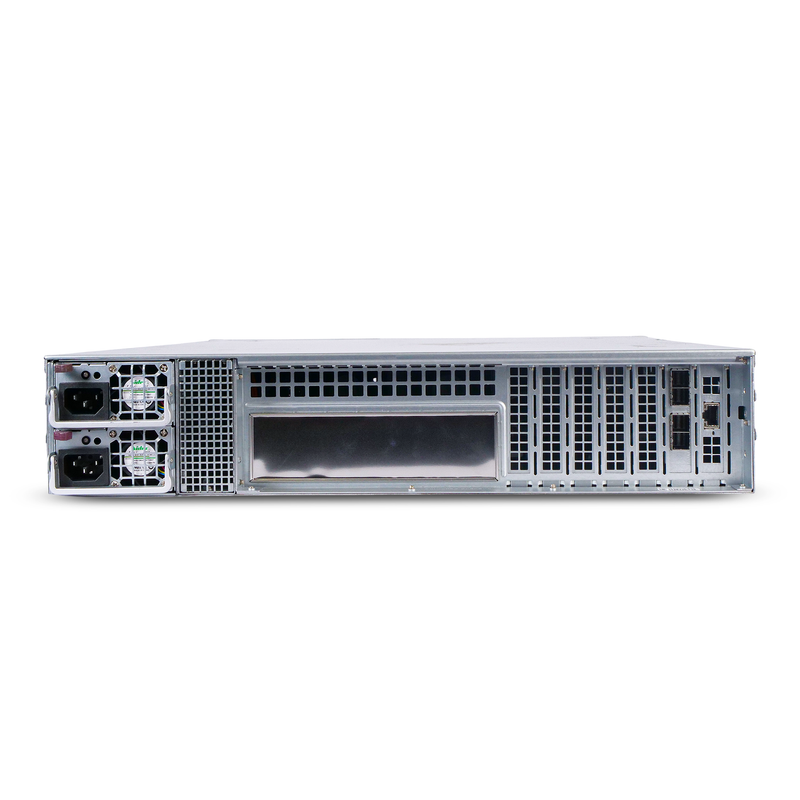

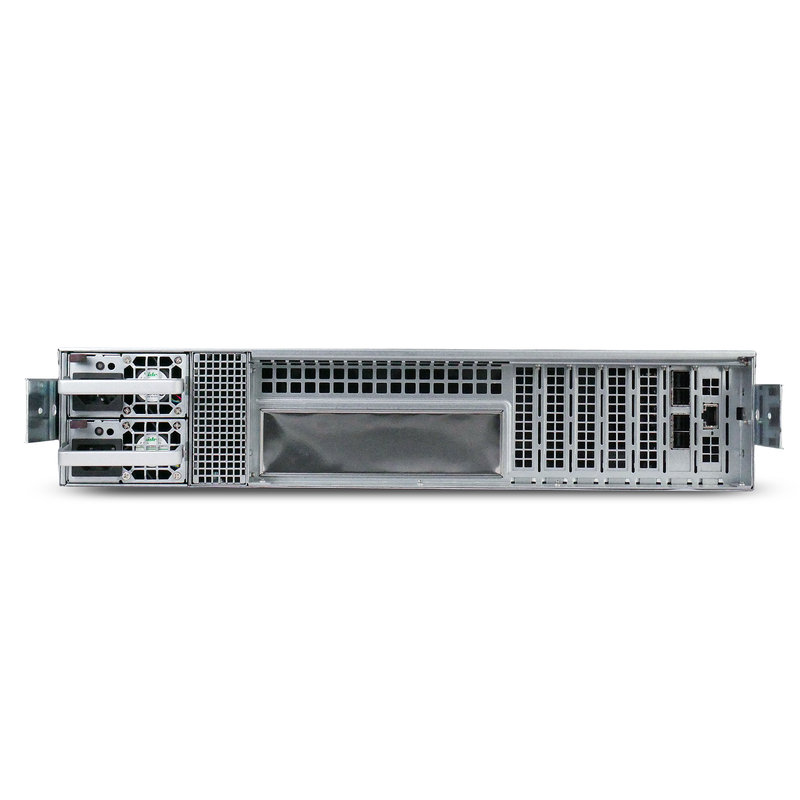

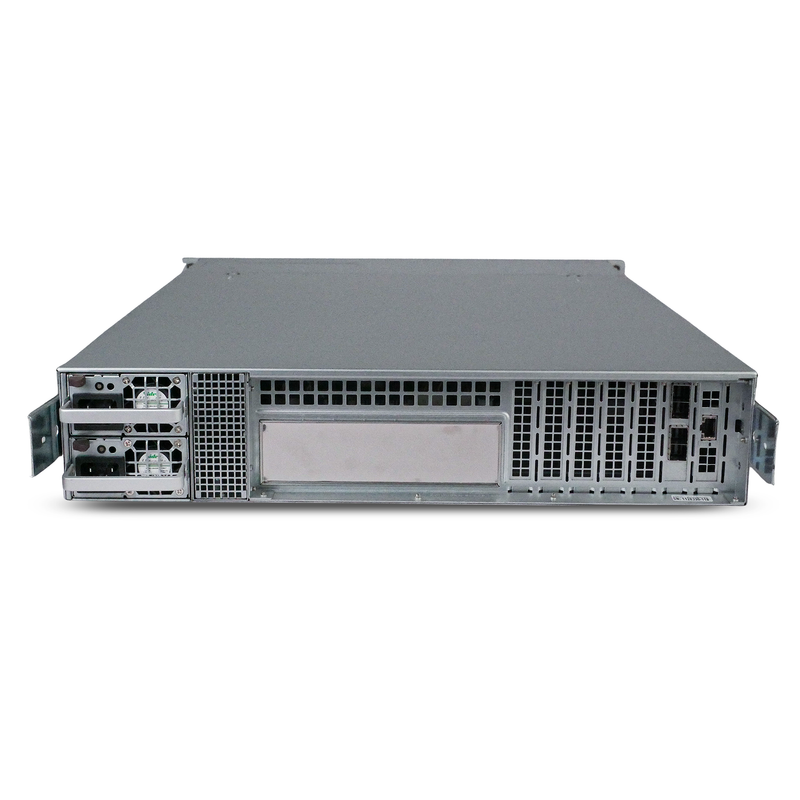

- Redundant Power Design: Includes dual hot-swappable 650W Platinum-level (95% efficiency) power supplies, ensuring reliable and energy-efficient operation with minimal downtime.
- Enterprise-Ready Reliability: Designed for continuous operation with hot-swappable drive bays and power modules, making it suitable for mission-critical storage expansion and data-intensive applications.
Note: Many configurations available, contact us via email or call us for custom options
Datasheet: Supermicro SC216BSpecifications
| Brand |
Supermicro |
| Series |
SC216B |
| Model Number |
CSE-216BE1C-R609JBOD |
| Form Factor |
2U Rackmount |
| Drive Capacity |
Up to 24 hot-swappable 2.5" SAS/SATA drives |
| Interface Protocols | SAS/SATA (via external SAS HBA or RAID controller) |
| Host Connectivity |
External SAS3 12Gbps connections via mini-SAS HD (SFF-8644) ports |
| Internal Interface |
12Gbps SAS3 expander backplane |
| Performance |
Depends on host controller bandwidth (SAS3 up to 12Gbps per lane) |
| Management |
SES (SCSI Enclosure Services) via host system |
| Power Supply |
Dual 650W hot-swappable Platinum-level (≈95% efficiency) |
| Cooling |
3x 80x38mm hot-swap cooling fan(s) |
| Operating Temperature Range |
5°C - 35°C (41°F - 95°F) |
| Non-Operating Temperature Range |
-40°C - 70°C (-40°F - 158°F) |
| Operating Relative Humidity Range |
8% - 90% (non-condensing) |
| Non Operating Relative Humidity Range |
5% - 95% (non-condensing) |
| Weight |
31 lbs (14.06 kg) |
| Height |
3.5" (89 mm) |
| Width |
17.2" (437 mm) |
| Depth |
24.8" (630 mm) |
Disclaimer
Some references may appear on this website or product descriptions to trademarks belonging to others not affiliated with ServerPartDeals.com (SPD), including references which may not display the ® symbol. All third-party trademarks (including logos and icons) referenced by SPD remain the property of their respective owners. Unless specifically identified as such, SPD’s use of third-party trademarks does not indicate any relationship, sponsorship, or endorsement between SPD and the owners of these trademarks. Any references by SPD to third party trademarks is to identify the corresponding third-party goods and/or services and shall be considered nominative fair use under trademark law.This animation is a visual aid only and does not represent the actual testing methodology, sequence, or results for this drive.
We test every JBOD enclosure before you do.
Every JBOD enclosure Server Part Deals sells passes an internal 4-stage testing protocol before it ships. While many resellers stop at a basic power-on check, we validate every drive bay, backplane connection, SAS expander, power supply, and cooling component. Each enclosure is tested under sustained operation to confirm reliable connectivity, airflow, and system stability.
Stage 1: Physical Inspection
- Chassis and structural inspection
- Drive-bay and caddy alignment check
- SAS, power, and management-port inspection
- Fan, power-supply, and cable inspection
Stage 2: Hardware Validation
- Backplane and SAS expander detection
- Drive-bay connectivity verification
- Power-supply and fan-status review
- Firmware and enclosure-ID validation
Stage 3: Throughput Testing
- Multi-drive read/write cycles
- SAS link-speed validation
- Concurrent bay-load testing
Stage 4: Stability & Bay Testing
- Full drive-bay population scan
- Link-error and disconnect monitoring
- Temperature and airflow verification
- Final enclosure and inventory check
