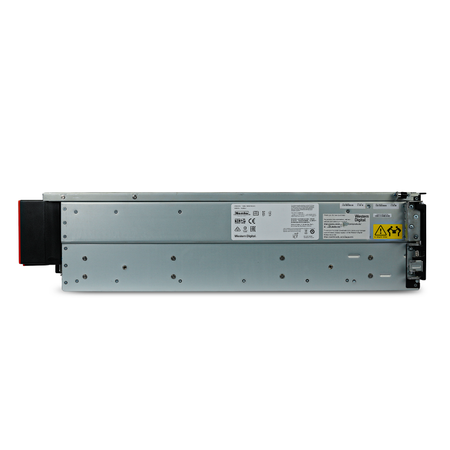

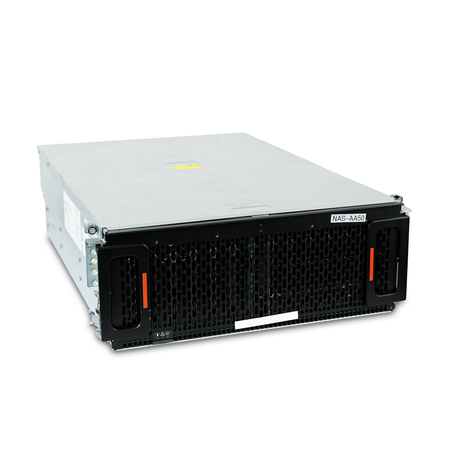

Western Digital Ultrastar Data60 Dual IOM Hybrid Storage Platform SE4U60 Gen3 | 4U60 60-Bay Data Center JBOD Enclosure | Up to 1.3PB (Refurbished)
Western Digital Ultrastar Data60 Dual IOM Hybrid Storage Platform SE4U60 Gen3 | 4U60 60-Bay Data Center JBOD Enclosure | Up to 1.3PB (Refurbished)
How We Test
Every unit is diagnostic-tested and verified healthy before shipment. Learn about our full testing process ↓
About this item
WesternDigital Ultrastar Data60 JBOD Enclosure

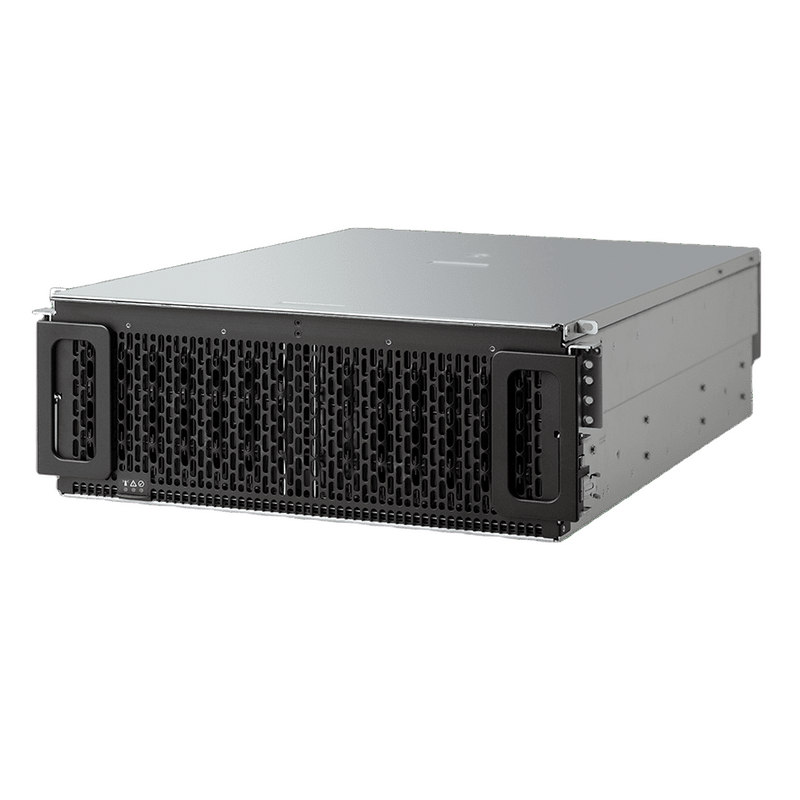

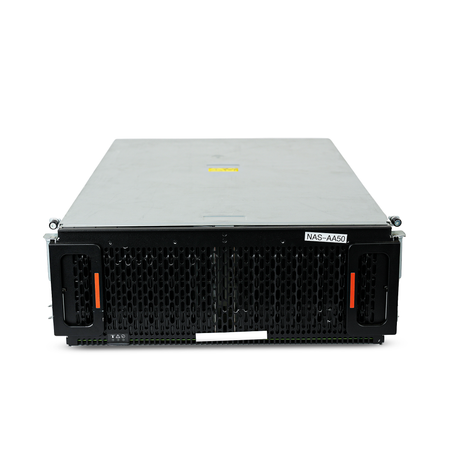

The Western Digital Ultrastar Data60 SE4U60 Gen3 is a high-density enterprise hybrid storage platform designed for large-scale, software-defined storage deployments. Unlike controller-based storage arrays, the Data60 operates as a JBOD expansion enclosure, relying on external servers or RAID/HBA controllers for storage management. Supports up to 60 x 3.5" SAS or SATA HDDs, with up to 24 bays configurable as SAS or SATA SSDs to create a dedicated data acceleration tier. Multiple units may be daisy-chained for expanded raw capacity.
Highlights
-

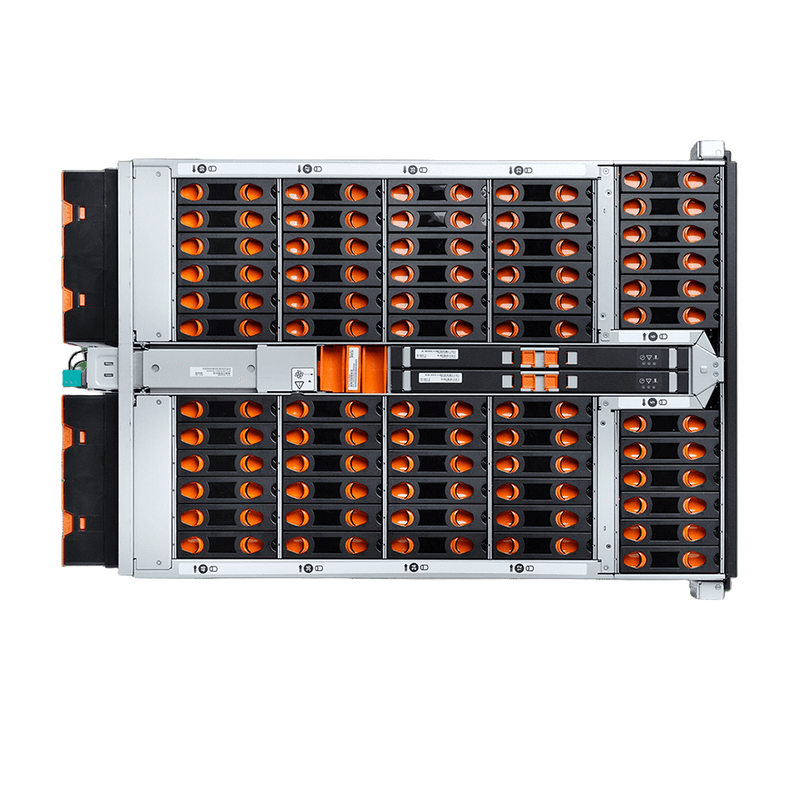

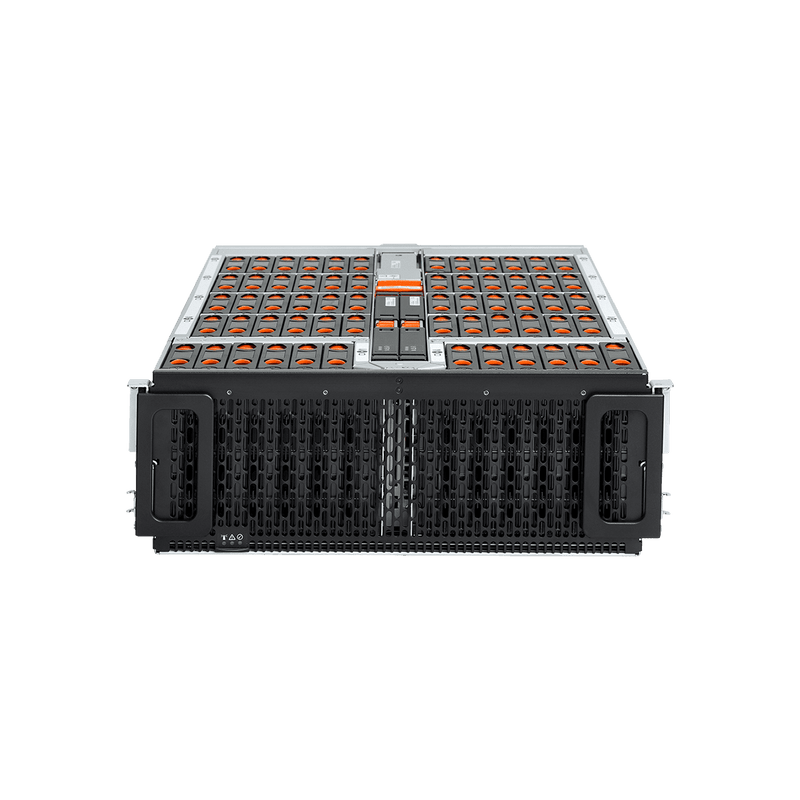

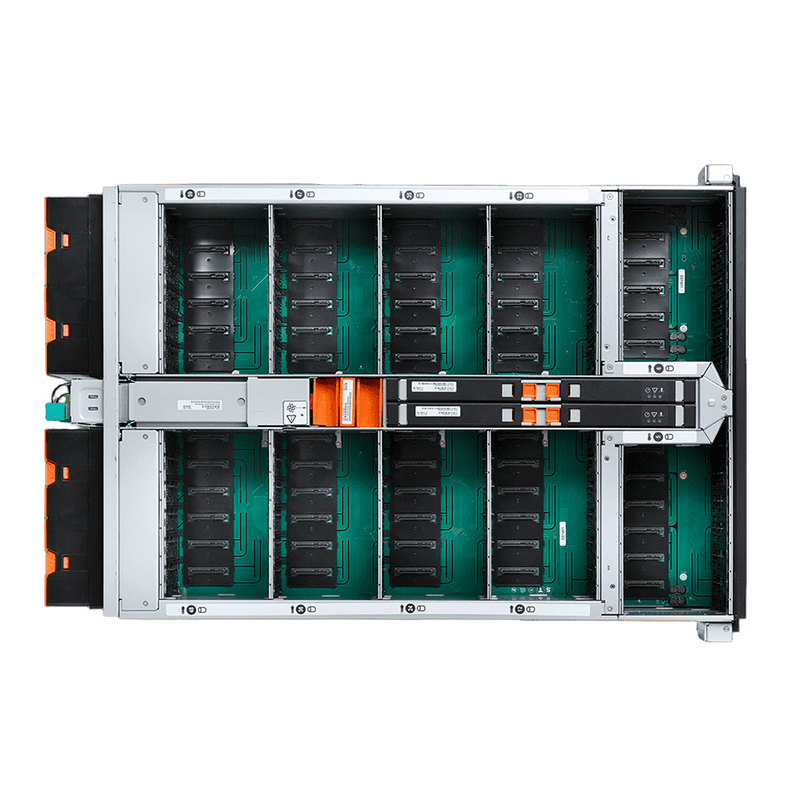

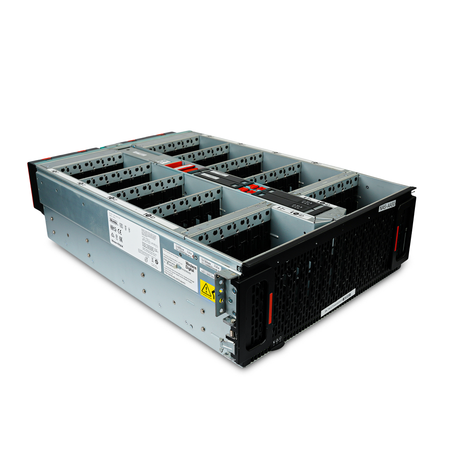

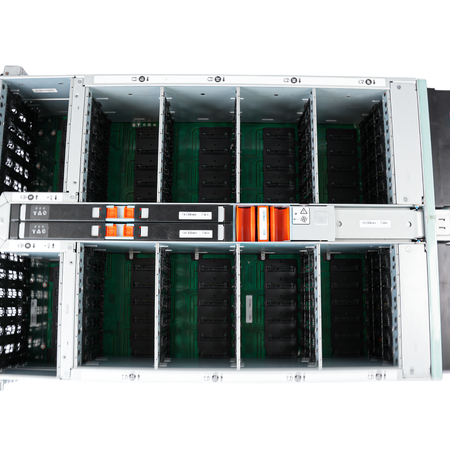

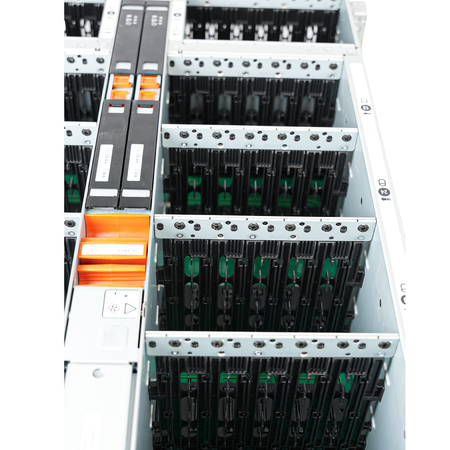

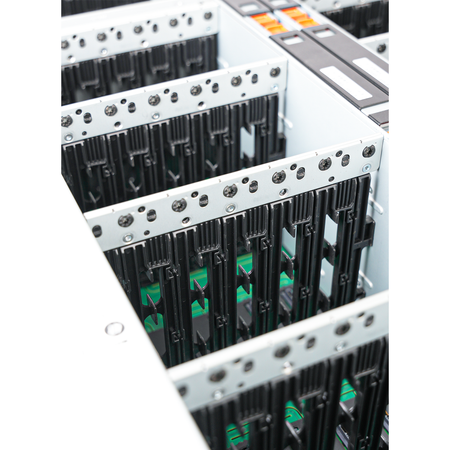

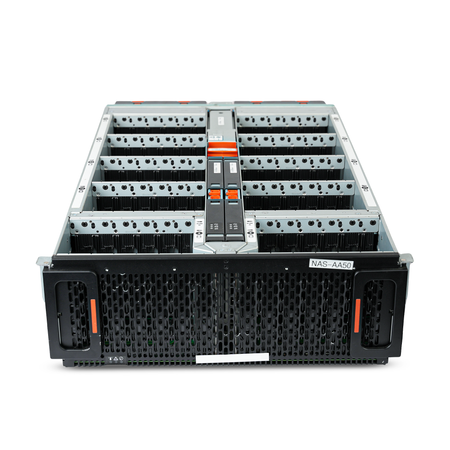

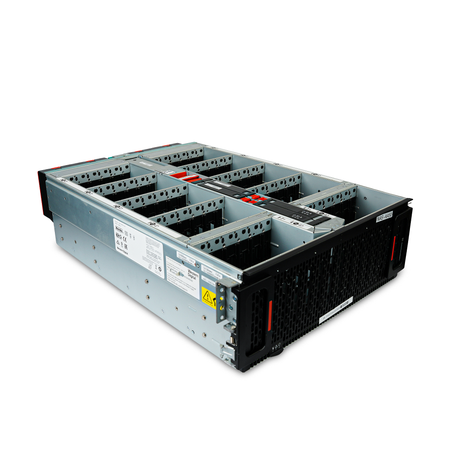

Ultra-Dense 4U Chassis: Houses 60 hot-swappable 3.5" drive bays in a 4U rackmount form factor, delivering high-density enterprise storage expansion for data center environments.
-

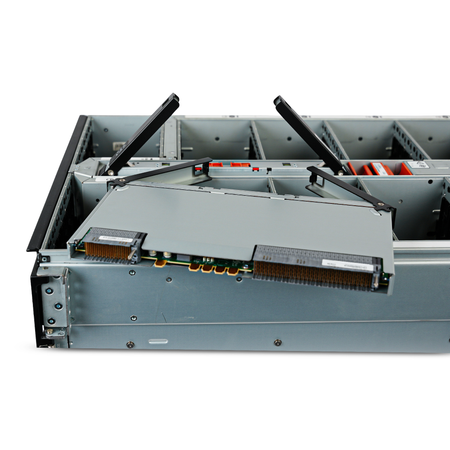

12Gb/s SAS-3 / 6Gb/s SATA Expansion Architecture: Equipped with Dual Redundant I/O Modules (IOMs), providing high-speed external SAS or SATA connectivity via host HBA or RAID controller, with up to 12 x 12Gb/s SAS-3 host connections and multipath redundancy (single-port SATA configurations available for lower-cost deployments).
-
Hybrid Drive Flexibility: Supports SAS and SATA HDDs across all 60 bays for high-capacity storage, with up to 24 bays configurable for SAS/SATA SSDs to create a dedicated data acceleration tier for HDD/SSD hybrid deployments. Only compatible with Western Digital Ultrastar Hard Drives
-

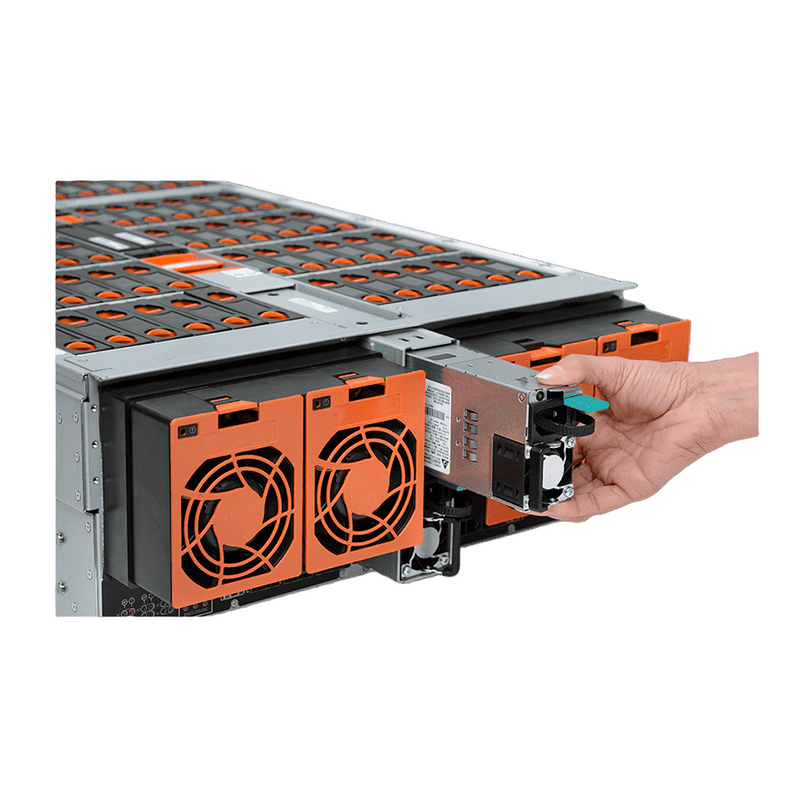

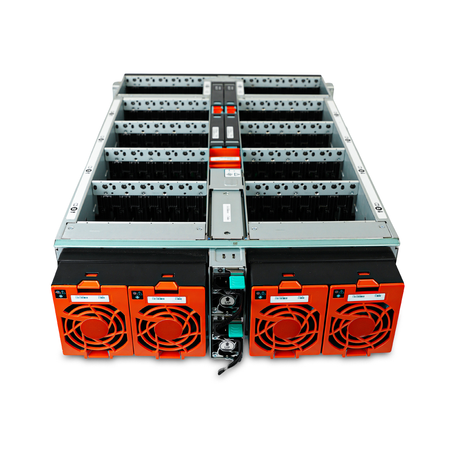

Carrier-Grade Redundancy: Features dual redundant SAS I/O Modules (IOMs), dual 1800W 80+ Platinum hot-swappable power supplies, and cable-free hot-swap servicing for IOMs, PSUs, fans, and drives — no single point of failure.
-
Advanced Enclosure Management: Supports SES (SCSI Enclosure Services) plus out-of-band Redfish management via RJ45, providing real-time health monitoring for temperature, power status, and drive activity through the connected host system.
-
Warranty: When purchased with recertified hard drives, the drives inside of the JBOD will come with a 2 year warranty. The JBOD will have a 6 Month warranty.
Applications and Workloads
- Enterprise Data Centers: Dense, shared HDD or hybrid storage for large enterprise environments
- Software-Defined Storage (SDS): Key element of next-generation disaggregated storage and SDS systems
- Hybrid Workloads: SAS/SATA HDD bays paired with an optional SSD acceleration tier for balanced capacity and performance
- Cloud & Service Provider Storage: Dense, cost-effective raw capacity for storage OEMs, cloud service providers, and resellers/integrators
- Scale-Out Storage Expansion: Multiple units daisy-chainable for growing raw capacity needs
Note: Many configurations available, contact us via email or call us for custom options.
Compatibility Matrix: Data60 compatible parts
Installation Guide: Data60 install guide
Product Brief: Ultrastar 4U JBOD overview
Tech Brief: IsoVibe and ArcticFlow overview
Manual: WD Ultrastar Data60 User Guide
| Brand | Western Digital |
| Series | Ultrastar Data60 |
| Model Number | SE4U60 |
| Form Factor | 4U Rackmount JBOD Enclosure |
| Max. Drives |
60 x 3.5" drive bays |
| Drive Interface |
12Gb/s SAS |
| Available Drive Capacities |
HDD up to 22TB CMR |
| Host Interface |
Dual redundant I/O Modules (IOM)* *SATA HDD configurations include only one I/O module |
| Weight |
Without Drives: 27.3kg (60lbs) |
| LED Indicators | Front/Rear: Power, ID, Fault Drive: Activity, Fault |
| Physical Dimensions |
Height: 175mm (6.89") |
| Management |
SCSI Enclosure Services |
| Power |
Dual 1600W, 80+ Platinum |
| Cooling |

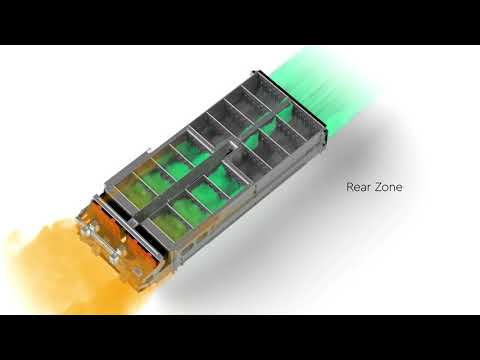

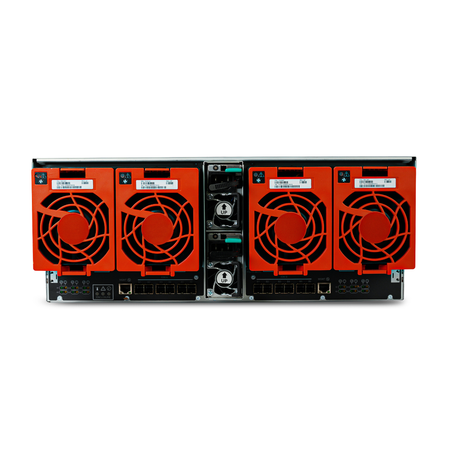

4 main enclosure fans, front-to-rear system cooling with zero-loss backflow prevention |
| Environmental |
Operating Temperature: 5 C to 35 C |
| Serviceability |
Cable-free hot-swappable IOM, power supply, fans and drives |
Disclaimer
Some references may appear on this website or product descriptions to trademarks belonging to others not affiliated with ServerPartDeals.com (SPD), including references which may not display the ® symbol. All third-party trademarks (including logos and icons) referenced by SPD remain the property of their respective owners. Unless specifically identified as such, SPD’s use of third-party trademarks does not indicate any relationship, sponsorship, or endorsement between SPD and the owners of these trademarks. Any references by SPD to third party trademarks is to identify the corresponding third-party goods and/or services and shall be considered nominative fair use under trademark law.Warning
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
This animation is a visual aid only and does not represent the actual testing methodology, sequence, or results for this drive.
We test every JBOD enclosure before you do.
Every JBOD enclosure Server Part Deals sells passes an internal 4-stage testing protocol before it ships. While many resellers stop at a basic power-on check, we validate every drive bay, backplane connection, SAS expander, power supply, and cooling component. Each enclosure is tested under sustained operation to confirm reliable connectivity, airflow, and system stability.
Stage 1: Physical Inspection
- Chassis and structural inspection
- Drive-bay and caddy alignment check
- SAS, power, and management-port inspection
- Fan, power-supply, and cable inspection
Stage 2: Hardware Validation

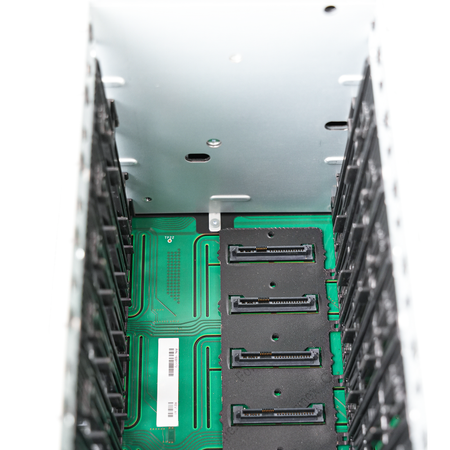

- Backplane and SAS expander detection
- Drive-bay connectivity verification
- Power-supply and fan-status review
- Firmware and enclosure-ID validation
Stage 3: Throughput Testing
- Multi-drive read/write cycles
- SAS link-speed validation
- Concurrent bay-load testing
Stage 4: Stability & Bay Testing
- Full drive-bay population scan
- Link-error and disconnect monitoring
- Temperature and airflow verification
- Final enclosure and inventory check
