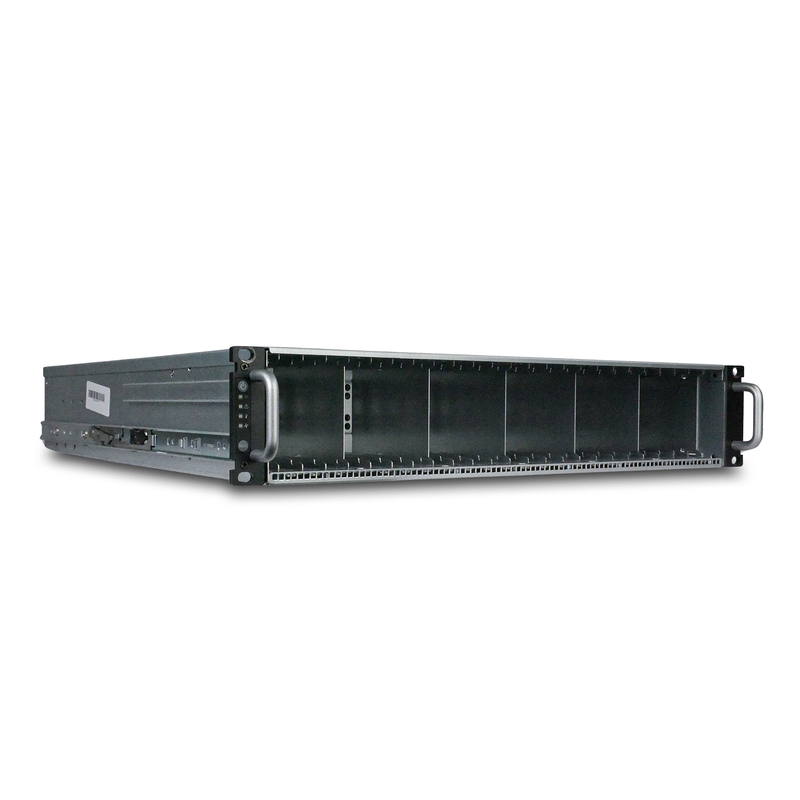

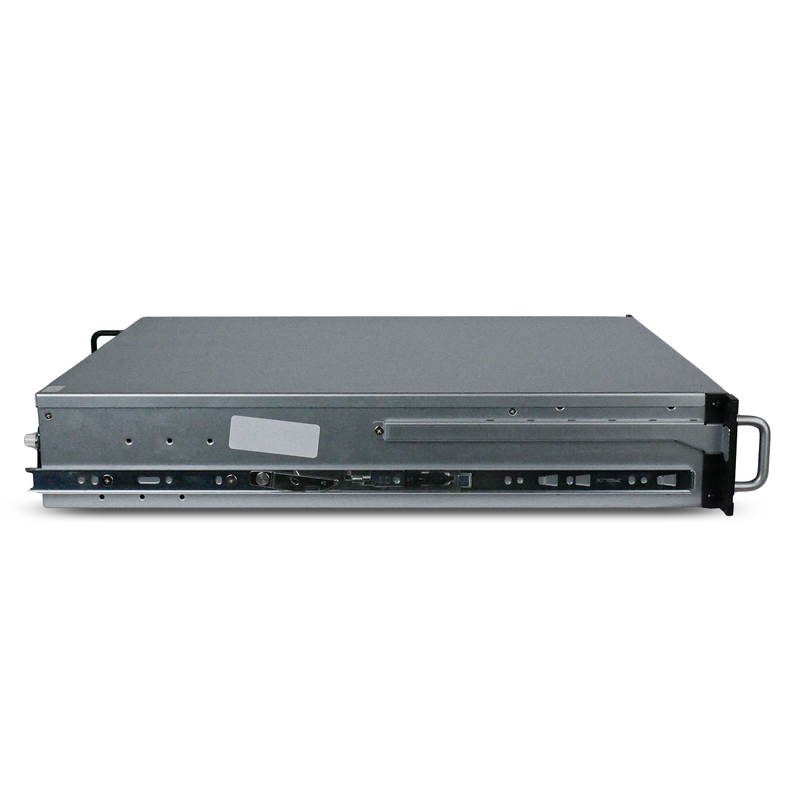

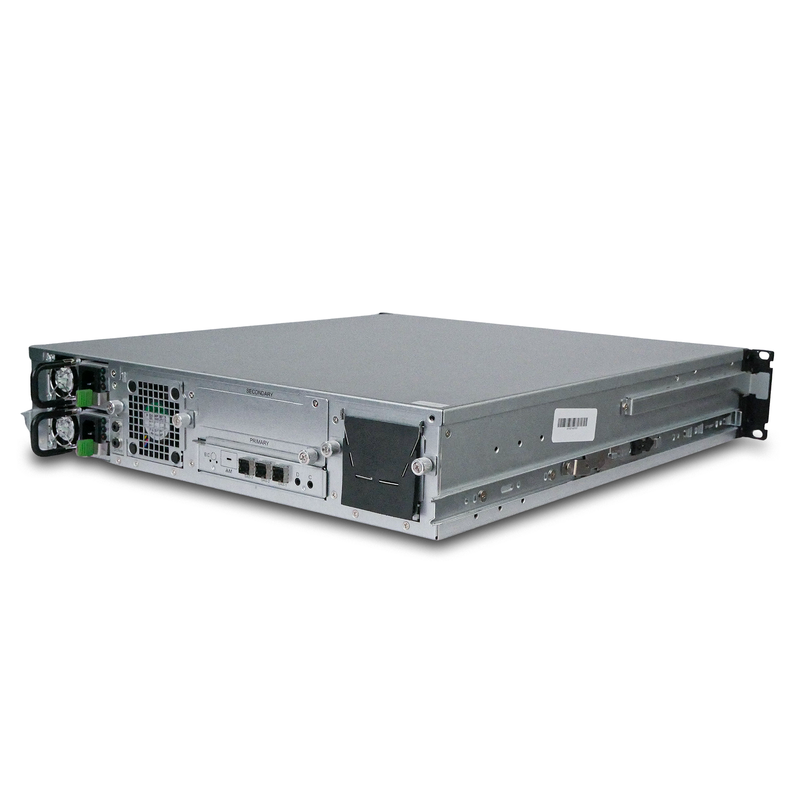

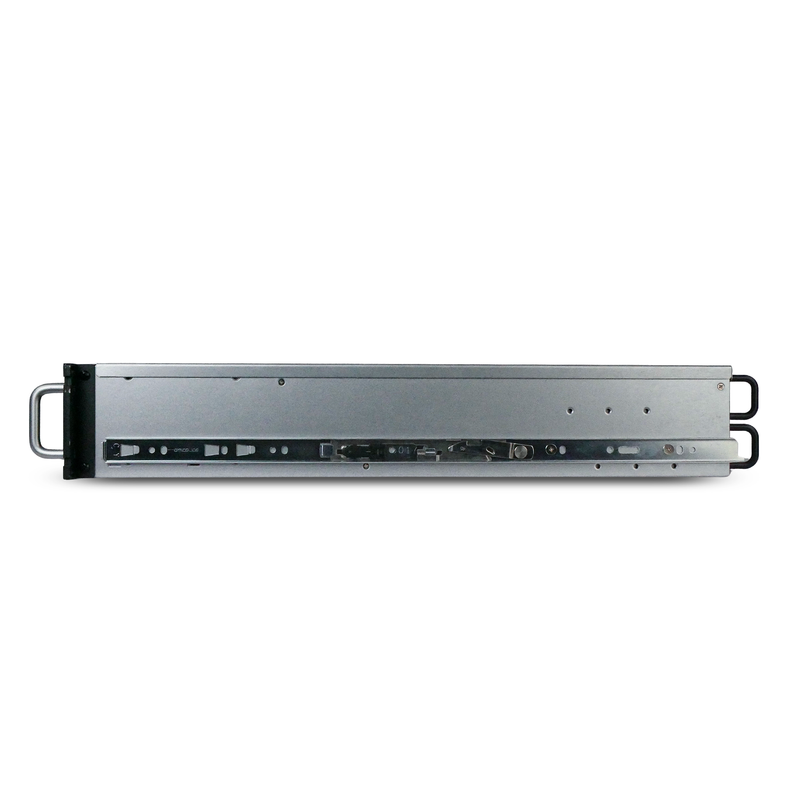

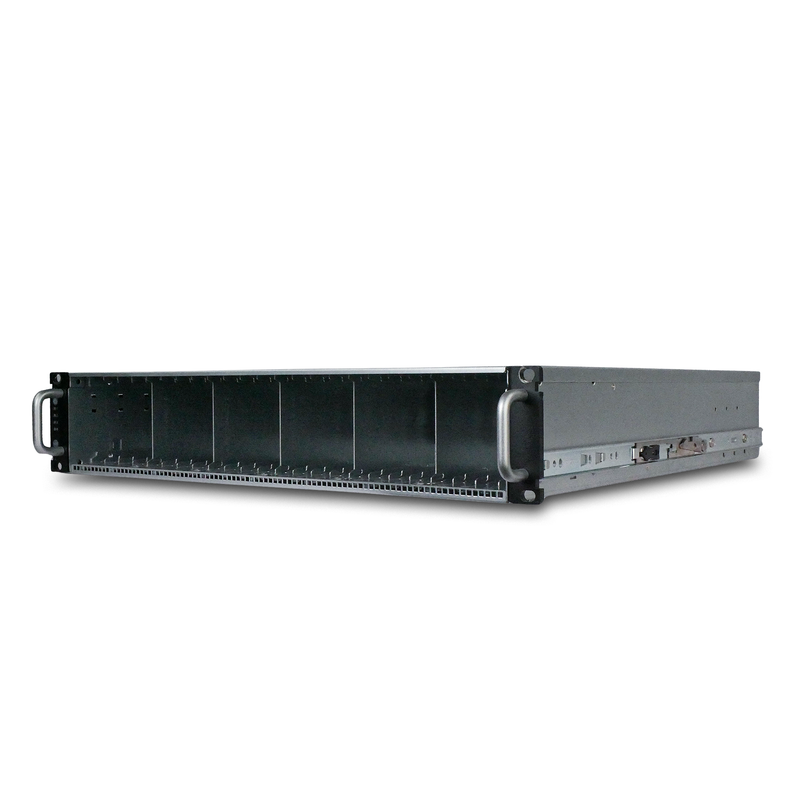

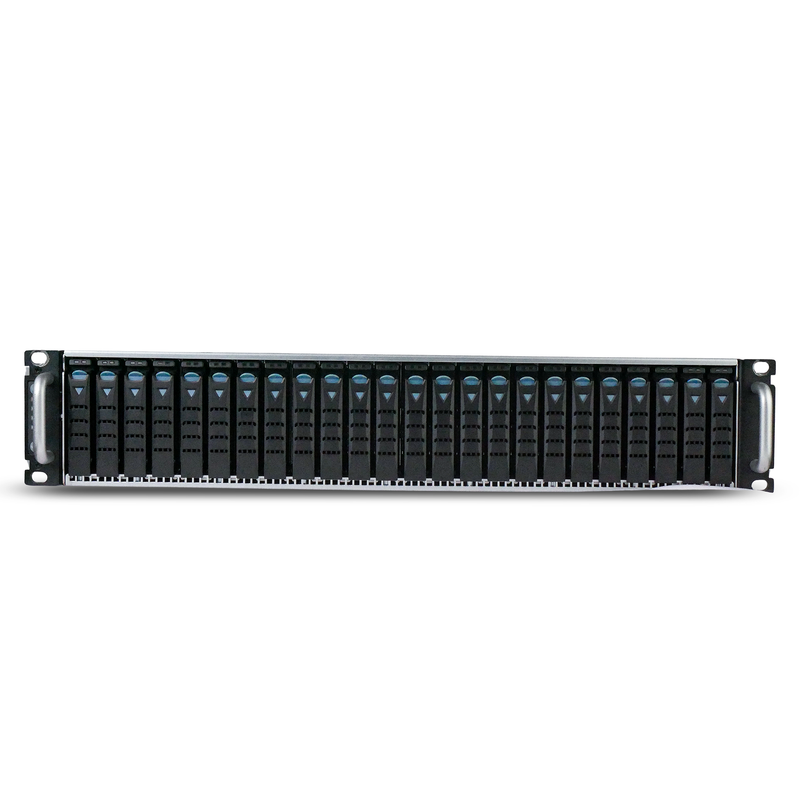

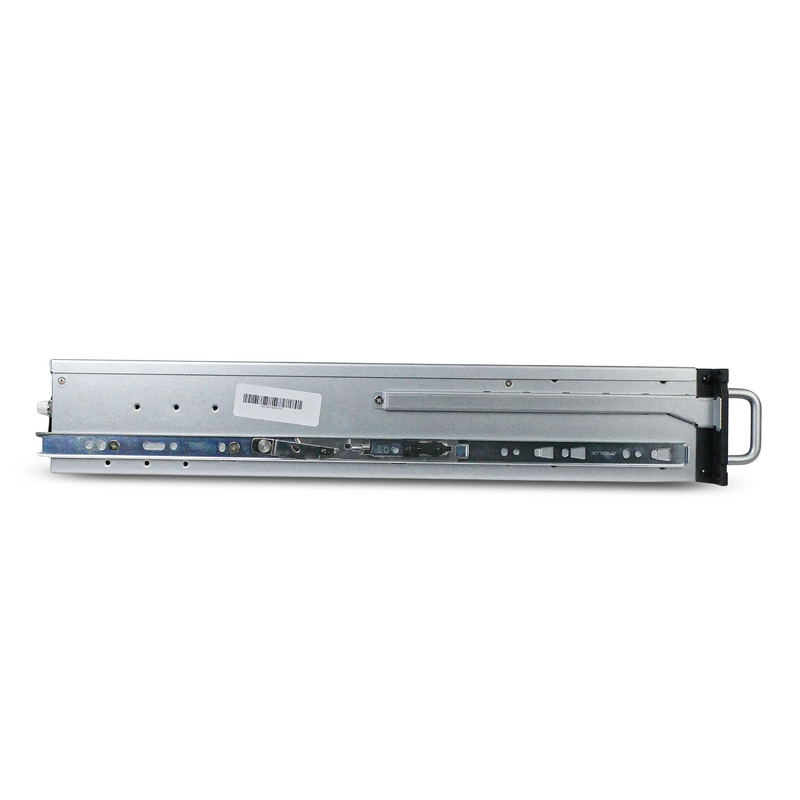

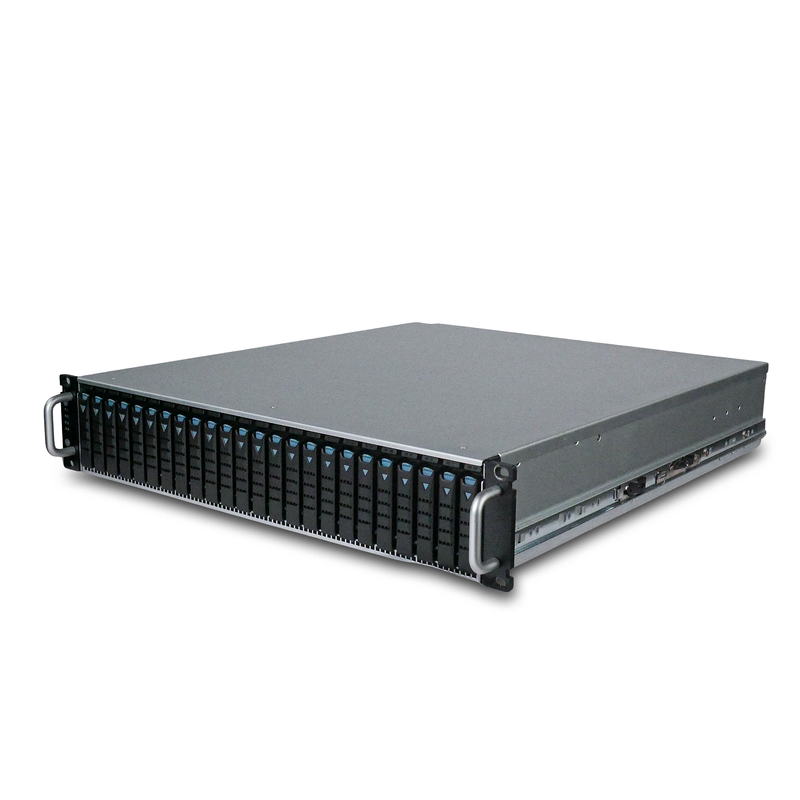

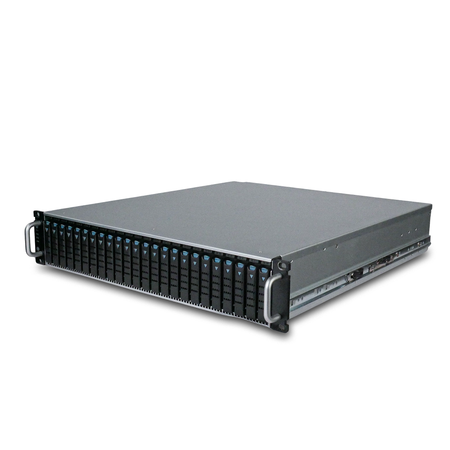

AIC J2024-01 24-Bay 2.5" SAS/SATA JBOD 2U Rackmount Storage Enclosure 2U24SAS3 Single Expander | 24-Bay Data Center JBOD Enclosure (Refurbished)
By AIC
About this item
24 Bay Rackmount JBOD
AIC J2024-01 — Single-Expander 24-Bay 2U JBOD Storage Enclosure (JBOD Only)
This AIC 2U 24-bay JBOD enclosure is an enterprise-grade, high-density storage expansion platform designed for scalable data center environments. Built on a SAS3 architecture with a modular expander design, it provides reliable, high-throughput external storage expansion without integrated RAID dependency.
Highlights

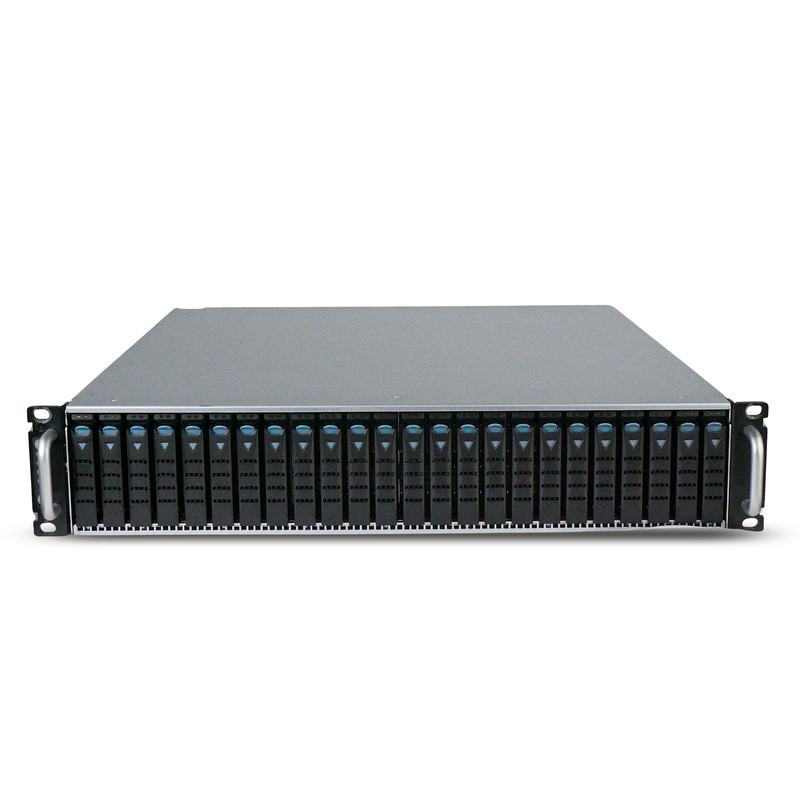

- Compact High-Density 2U Chassis: Supports up to 24 hot-swappable 2.5" SAS/SATA drives in a space-saving 2U rackmount form factor, ideal for dense data center deployments.
- SAS3 Single-Expander Architecture: Equipped with an LSI SAS3x36R expander chip in a single-expander configuration, enabling efficient 12Gbps SAS connectivity and high-bandwidth data routing across all drives via external SAS links.
- Flexible Drive Compatibility: Supports both SAS and SATA 2.5" (SFF) drives, with 12Gb and 6Gb SAS/SATA compatibility in single-expander mode; interposer kits are optional for expanded compatibility depending on drive type.
- JBOD-Only Operation: Functions purely as a JBOD enclosure with no built-in RAID controller, giving full control to the host system or external SAS HBA/RAID controller for storage configuration flexibility.
- Redundant Power Design: Includes dual hot-swappable 549W 80+ Platinum power supplies (1+1 redundant configuration), ensuring high efficiency, stable power delivery, and reduced downtime.
- Enterprise-Ready Reliability: Designed for continuous operation with hot-swappable drive bays, redundant power modules, high-airflow cooling via 2 x 6038 hot-swap fans, and integrated LED indicators with audible alarm support for system monitoring and alerts.
Applications
- Near-line Database Expansion Storage
- High Performance Direct Attached Storage for HPC or Application Server
- Virtual Tape Library
- Multimedia on Demand
- Online E-mail Storage
- Local Storage for Video Post-productions
- Digital Content Source Database Storage
- Private / Public Cloud Expansion
Note: Many configurations available, contact us via email or call us for custom options
Datasheet: AIC J2024-01Specifications
| Brand |
AIC |
| Series |
J2024 |
| Model Number |
J2024-01 |
| Form Factor |
2U Rackmount |
| Drive Capacity |
Up to 24 hot-swappable 2.5" SAS/SATA drives |
| Drive Interface |
12Gb & 6Gb SAS/SATA |
| Expander |
Single |
| Expander Chip |
LSI SAS3x36R |

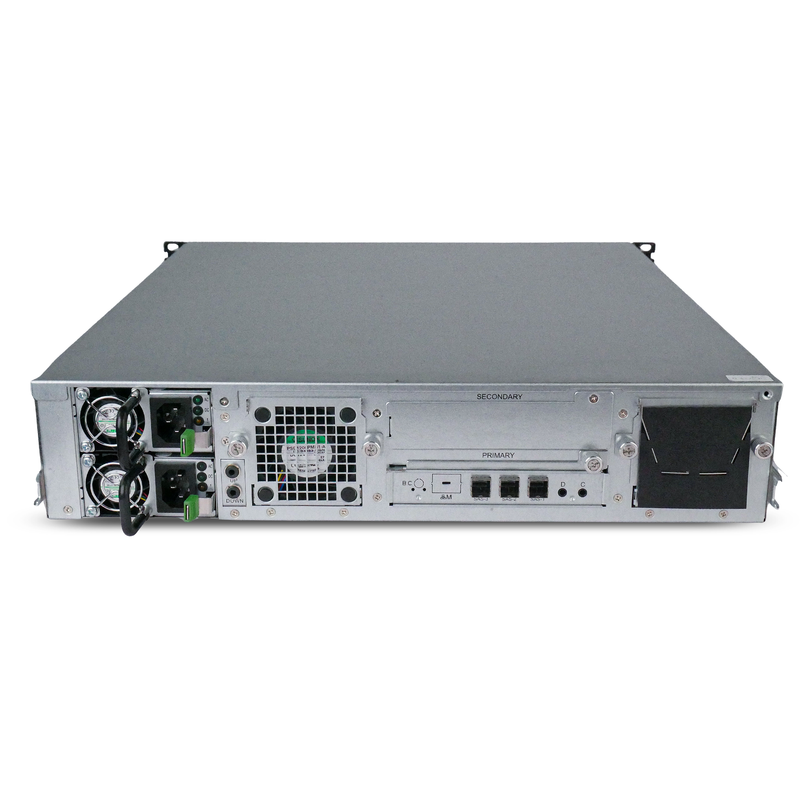

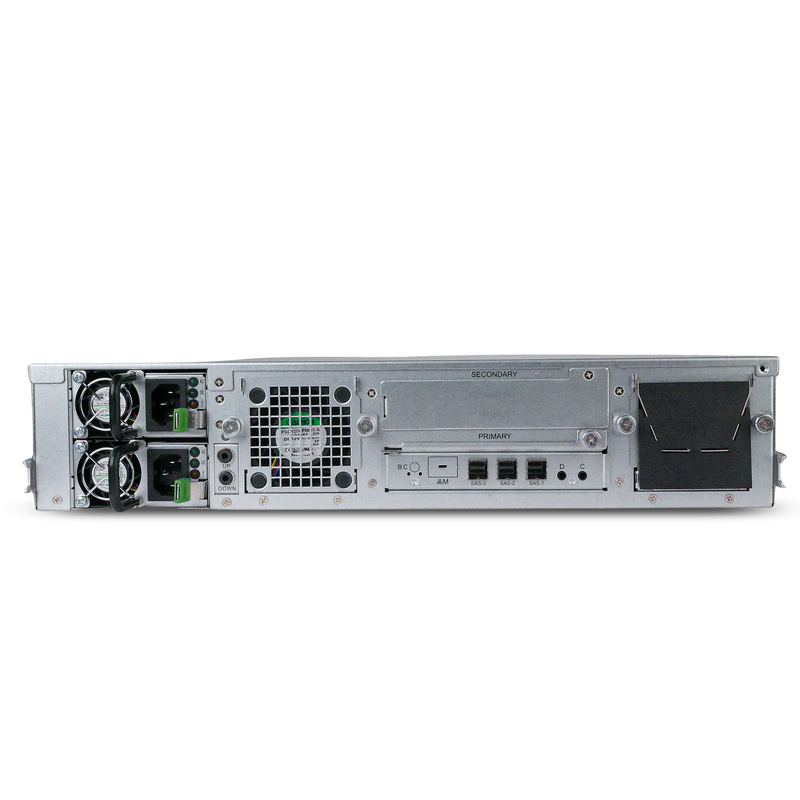

| Host/Expansion Interface |
3 x Mini SAS HD (SFF-8644) |
| Cooling |
2 x 6038 hot swap fans |
| Power Supply |
549W 1+1 hot swap redundant 80+ |
| Universal A/C Input |
100~240V AC full range |
| Operating Environment |
Temperature : 0ºC to 35ºC |
| Non-operating Environment |
Temperature : -20ºC to 60ºC |
| Dimensions (W x D x H) (with chassis ears) |
mm : 483 x 511 x 88 |
| Gross Weight (w/ PSU, w/o Rail & Disks) |
51 lbs (23 kg) |
