Supermicro SC847 44-Bay SATA/SAS JBOD 4U Rackmount Storage Enclosure CSE-847E1C-R1K23JBOD | 44-Bay Data Center JBOD Enclosure (Refurbished)
Supermicro SC847 44-Bay SATA/SAS JBOD 4U Rackmount Storage Enclosure CSE-847E1C-R1K23JBOD | 44-Bay Data Center JBOD Enclosure (Refurbished)

Supermicro SC847 44-Bay SATA/SAS JBOD 4U Rackmount Storage Enclosure CSE-847E1C-R1K23JBOD | 44-Bay Data Center JBOD Enclosure (Refurbished)

By SuperMicro
| Contact Seller

Freight Shipping is included in the price.

Please allow a 4-5 day lead time on orders for preparations

For international orders, please contact us directly.

Drive Type
Storage Capacity
About this item

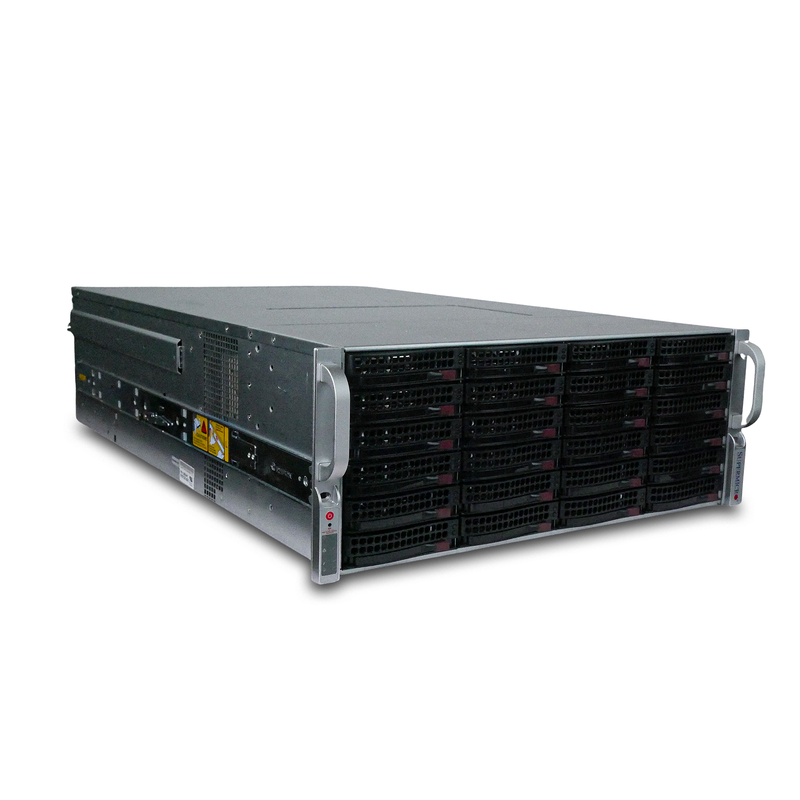

The Supermicro SuperChassis CSE-847E1C-R1K23JBOD is a 4U high-density JBOD (Just a Bunch Of Disks) storage enclosure. It is designed for enterprise-level, heavy-capacity storage applications like cloud backups, data replication, and data warehousing.

  • High-density storage: The chassis supports up to 44x 3.5" hot-swappable SAS/SATA drive bays (24 in the front and 20 in the rear).
  • High-speed connectivity: Features a Single SAS3 (12Gbps) expander backplane, manages all 44 drives through the expander.
  • Dual Redundant 1280W Power Supply — Hot-swappable PSU with 95% efficiency and PMBus 1.2 remote management support ensures continuous, reliable power delivery with zero-downtime replacement capability
  • Hot-swap components: Features hot-swappable, redundant cooling fans (7x 80mm middle fans) and hot-swappable hard drive bays for easy maintenance and zero downtime.
  • Connectivity ports: Includes 8x External mini-SAS HD (SFF 8644) ports.
  • IPMI/BMC remote management is present but unverified — default SuperMicro login credentials do not work. Core server functionality is fully operational.

Supermicro SC847 44-Bay SATA/SAS JBOD 4U Rackmount Storage Enclosure CSE-847E1C-R1K23JBOD | 44-Bay Data Center JBOD Enclosure (Refurbished)

$649.00 Out of stock
Out of Stock. Need this item? Request a quote.
Sold out More may be available, contact your sales team.
Translation missing: en.general.icons.icon_check_circle icon Out of stock More may be available, contact your sales representative.
Order Within: Hours Minutes
To ship on:

Notify me when back in stock

Shop Promise Delivery
Got a datacenter to fill?

Our listed inventory is only part of what we stock. ServerPartDeals quotes bulk orders at hundreds or thousands of enterprise drives directly from deeper warehouse stock, with volume pricing on tested HDDs and SSDs.

Contact our sales team

Skip the headache, we'll procure for you.

Can't find the exact model, capacity, or quantity? ServerPartDeals sources hard-to-find enterprise hardware including drives, servers, RAM, GPUs, and networking gear through our vendor network, all tested before it ships.

Enterprise Hardware Procurement

Looking to liquidate? Get a credit toward your order.

Decommissioning or upgrading? ServerPartDeals buys back used enterprise drives and equipment and can apply the value as credit toward your next order! No separate ITAD process, no waiting on a payout.

Request a quote

44 Bay Rackmount JBOD

Supermicro SC847 JBOD 44-Bay

Highlights

  • JBOD ships with Rails, 1x mini SAS Cables, Trays(Bare JBOD) and Power Cable
  • 4 rack units height

WARRANTY

6 Month Warranty on the JBOD Unit.

Note: Many configurations available, contact us via email or call us for custom options.

Applications and Workloads

  • SDS Environments
  • Big Data
  • Private Cloud
  • Data Analytics
  • Cloud Infrastructure
Max. Drives

44 x 3.5" drive bays
Drive Interface


6Gb/s SATA and 12Gb/s SAS
Backplane

Single SAS3 12Gbps expander (E1C)
Host Interface

8x External mini SAS HD (SFF 8644) ports

IPMI RJ45 port for remote monitoring and power management is present but locked, cannot reset/access.
Weight

Net Weight: 86lbs
Gross Weight: 118lbs
LED Indicators

Power status LED

1 Network activity LEDs

Power Fail LED

Unit Identification (UID) LED

Fan Fail/System Over Heat LED
Dimensions (L x W x H)

336 x 76 x 40 mm
Power

Dual Redundant 1280W Power Supply
Cooling

7x 8cm hot-swap redundant PWM cooling fan(s)
Environmental

Operating Temperature: 5 C to 35 C
Non-op Temperature: -40 to 70 C
Humidity: 8 to 90% relative humidity
Serviceability

Cable-free hot-swappable IOM, power supply, fans and drives


Disclaimer

Some references may appear on this website or product descriptions to trademarks belonging to others not affiliated with ServerPartDeals.com (SPD), including references which may not display the ® symbol. All third-party trademarks (including logos and icons) referenced by SPD remain the property of their respective owners. Unless specifically identified as such, SPD’s use of third-party trademarks does not indicate any relationship, sponsorship, or endorsement between SPD and the owners of these trademarks. Any references by SPD to third party trademarks is to identify the corresponding third-party goods and/or services and shall be considered nominative fair use under trademark law.

Specifications

Max. Drives

44 x 3.5" drive bays
Drive Interface


6Gb/s SATA and 12Gb/s SAS
Backplane

Single SAS3 12Gbps expander (E1C)
Host Interface

8x External mini SAS HD (SFF 8644) ports

IPMI RJ45 port for remote monitoring and power management is present but locked, cannot reset/access.
Weight

Net Weight: 86lbs
Gross Weight: 118lbs
LED Indicators

Power status LED

1 Network activity LEDs

Power Fail LED

Unit Identification (UID) LED

Fan Fail/System Over Heat LED
Dimensions (L x W x H)

336 x 76 x 40 mm
Power

Dual Redundant 1280W Power Supply
Cooling

7x 8cm hot-swap redundant PWM cooling fan(s)
Environmental

Operating Temperature: 5 C to 35 C
Non-op Temperature: -40 to 70 C
Humidity: 8 to 90% relative humidity
Serviceability

Cable-free hot-swappable IOM, power supply, fans and drives
