Seagate Exos E 5U84 SAS Disk Shelf | 84-Bay 5U Data Center JBOD Enclosure
Seagate Exos E 5U84 SAS Disk Shelf | 84-Bay 5U Data Center JBOD Enclosure
How We Test
Every unit is diagnostic-tested and verified healthy before shipment. Learn about our full testing process ↓

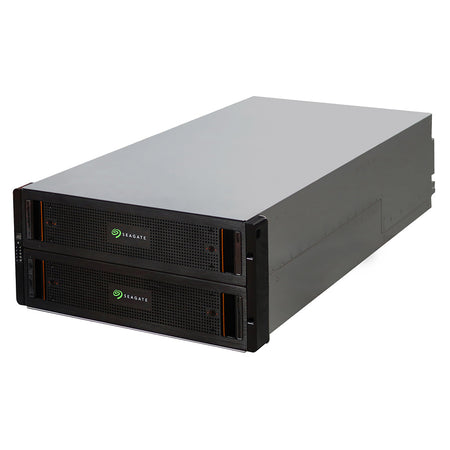

Seagate Exos E 5U84 JBOD Enclosure
Seagate Exos E 5U84 is the datasphere's high-capacity, high-performance platform that can handle extreme data growth.
Exos Application Platform also available with AP-LS-1 controller. Click link to view product page.
Highlights
- Compatible with any brand of SAS HDD
- Deliver peace of mind with features to protect data, including dual power supplies, fan modules, and I/O modules, as well as dual data paths to all drives
- Reduce power consumption with 80 PLUS Platinum certified power supplies and adaptive cooling technology
- Easily manage cables, universal ports, self-configuration controls, and standardized zoning
- Seamlessly expand to 336 drives as business grows

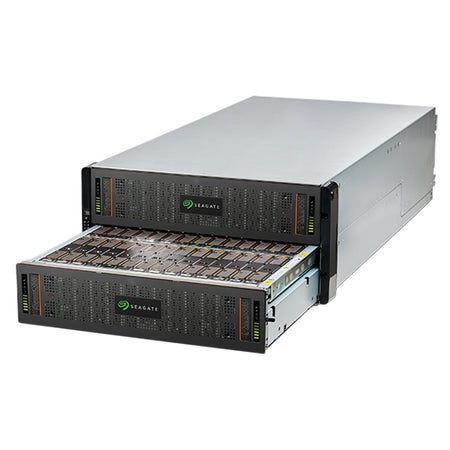

- Efficiently manage your data center with a 5U rackmount enclosure and unique drawer design that provides easy access to drives
- Maximum of 28.8GB/s in a dual controller configuration
- Seller Refurbished - 2 Years Seller Warranty on JBOD Unit

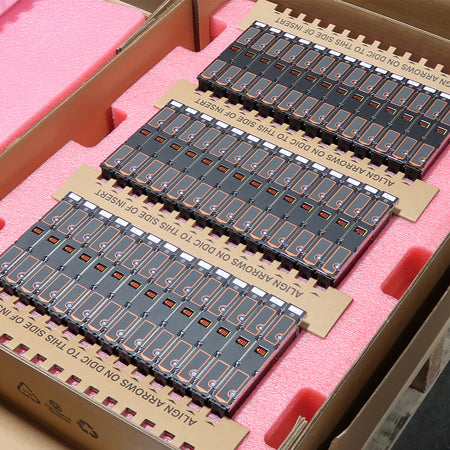

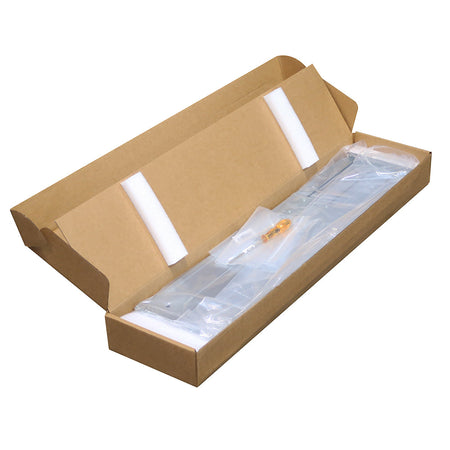

- JBOD ships with Rails, 2x mini SAS Cables, Trays(Bare JBOD) and Power Cable
Note: Many configurations available, contact us via email or call us for custom options.
Datasheet: Seagate Exos E 5U84
| Max. Drives |
84 x 3.5" drive bays |
| Warranty |
2 Years Seller Warranty on JBOD |
| Drive Interface |
Dual-ported 12Gb/s SAS |
| Available Drive Capacities |
HDD up to 28TB CMR |
| Host Interface |
Dual redundant I/O Modules (IOM) |
| Weight |
135kg / 298 lb (with drives, no rail kit) |
| Hot-Swappable Components | Drives, power supply units (PSU), cooling modules, side planes, and SBB I/O modules |
| Physical Dimensions |
Height: 220mm / 8.65 in (5 EIA units) Width: 483mm / 19 in (IEC rack compliant) Depth: 933mm / 36.75 in |
| Management |
CLI via RS232 and 100Base-T port, SCSI enclosure services (SES) via SAS SFF-8644 ports |
| Power |
200V-240V AC 60Hz/50Hz |
| Environmental |
Temperature: 5 C to 35 C (de-rate 5 C above 2133m) Humidity: 10% to 80% noncondensing |
Disclaimer
Some references may appear on this website or product descriptions to trademarks belonging to others not affiliated with ServerPartDeals.com (SPD), including references which may not display the ® symbol. All third-party trademarks (including logos and icons) referenced by SPD remain the property of their respective owners. Unless specifically identified as such, SPD’s use of third-party trademarks does not indicate any relationship, sponsorship, or endorsement between SPD and the owners of these trademarks. Any references by SPD to third party trademarks is to identify the corresponding third-party goods and/or services and shall be considered nominative fair use under trademark law.Warning
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
This animation is a visual aid only and does not represent the actual testing methodology, sequence, or results for this drive.
We test every JBOD enclosure before you do.
Every JBOD enclosure Server Part Deals sells passes an internal 4-stage testing protocol before it ships. While many resellers stop at a basic power-on check, we validate every drive bay, backplane connection, SAS expander, power supply, and cooling component. Each enclosure is tested under sustained operation to confirm reliable connectivity, airflow, and system stability.
Stage 1: Physical Inspection
- Chassis and structural inspection
- Drive-bay and caddy alignment check
- SAS, power, and management-port inspection
- Fan, power-supply, and cable inspection
Stage 2: Hardware Validation
- Backplane and SAS expander detection
- Drive-bay connectivity verification
- Power-supply and fan-status review
- Firmware and enclosure-ID validation
Stage 3: Throughput Testing
- Multi-drive read/write cycles
- SAS link-speed validation
- Concurrent bay-load testing
Stage 4: Stability & Bay Testing
- Full drive-bay population scan
- Link-error and disconnect monitoring
- Temperature and airflow verification
- Final enclosure and inventory check
