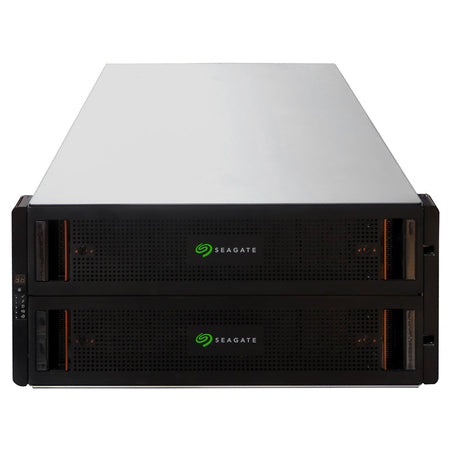

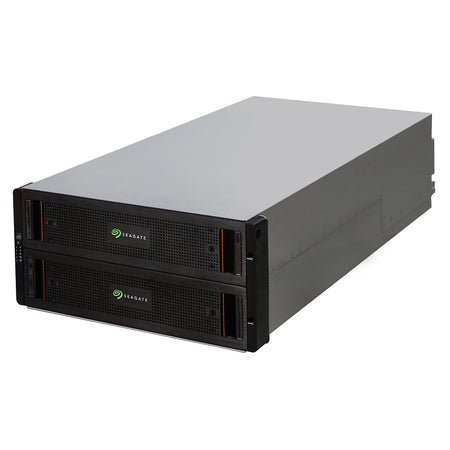

Seagate Exos AP 5U84 84-Bay Storage Server Application Platform with Xeon E5 V4 CPU (Single AP-LS-1 Controller)
Seagate Exos AP 5U84 84-Bay Storage Server Application Platform with Xeon E5 V4 CPU (Single AP-LS-1 Controller)
Supports SAS drives only
Note: JBOD lead times are 2 days before shipping. Please contact us before placing your order to ensure smooth purchase and delivery.
Included Hardware:
5U84 AP 1016437-07
Single controller 1104780-01 AP-LS-1
1x Intel Xeon E5 2618l V4 processor
4x Micron 8GB Single Rank PC4-2933 (2133mhz effective speed)
1x Innodisk DGM28-B56D81BCBQC-SGA 256GB SATA M.2 boot drive
1x Mellanox ConnectX-4 CX4121A Dual Port 25GbE NIC
Controller Blank
2x PSU 2200w 240v 0992524-10 FRUKE18-01
5x Fans FRUKE19-01

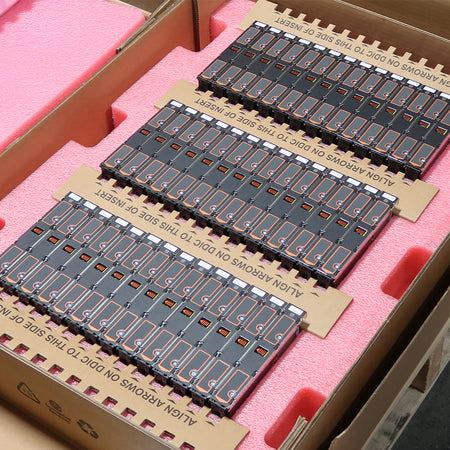

84x Trays
Rail Kit
+ Selected Drives
Seagate Exos AP 5U84 Storage Application Platform
Seagate Exos AP 5U84 is the datasphere's affordable application platform for growth, performance, and high capacity
Exos E 5U84 Storage Enclosure also available with SAS controllers. Click link for product page.
Highlights
- Maximize your investment with this low-TCO integrated compute and high-density storage system
- Leverage industry-leading CPU technology with Intel Xeon E5 v4 Family CPUs on each controller

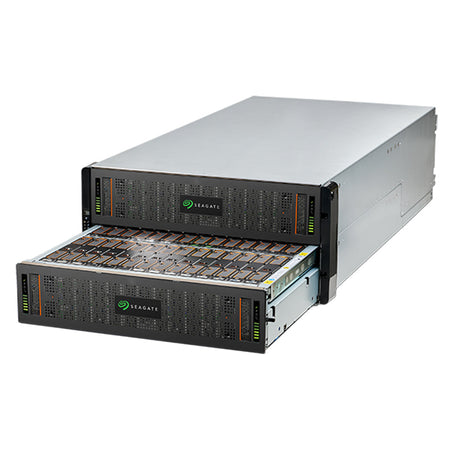

- Efficiently manage your data center with a 5U rackmount enclosure and unique drawer design that provides easy access to drives
- Future-proof your data center with support for current and next generation HDDs and SSDs
- Reduce power consumption with 80 PLUS Platinum certified power supplies and adaptive cooling technology
Note: Many configurations available, contact us via email or call us for custom options.
Datasheet: Seagate AP 5U84 Datasheet PDF
| Controller |
AP-LS-1 |
|
CPU Type |
One Intel Xeon E5 V4 Processor, up to 85W TDP |
| Memory Type and Quantity Per Controller |
Four standard height DDR4-2400 dimm slots |
| Internal Boot Drive Per Controller |
256GB M.2 SATA Drive (Spare port available for redundancy) |
| Onboard I/O Per Controller |
Intel i350-AM4 controller with two 1GbE RJ45 ports and one 1GbE management port |
| PCIE Expansion Per Controller |
Mellanox ConnectX-4 CX4121A Dual Port 25GbE NIC |
| Storage Infrastructure |
12G Broadcom SAS 3008 controller onboard |
| Max. Drives |
84 x 3.5" drive bays 2 x M.2 SATA boot drives |
| Warranty |
1 Year SPD warranty on Drives and JBOD |
| Drive Interface |
Dual-ported 12Gb/s SAS |
| Available Drive Capacities |
HDD up to 22TB CMR |
| Weight |
135kg / 298 lb (with drives, no rail kit) |
| Hot-Swappable Components |
Drives, power supply units (PSU), cooling modules, side planes |
| Physical Dimensions |
Height: 220mm / 8.65 in (5 EIA units) Width: 483mm / 19 in (IEC rack compliant) Depth: 933mm / 36.75 in |
| Management |
Out-of-band CLI via management port and in-band SCSI enclosure services |
| Power |
200V-240V AC 60Hz/50Hz 2.2kW per PSU |
| Environmental |
Temperature: 5 C to 35 C (de-rate 5 C above 2133m) Humidity: 10% to 80% noncondensing |
