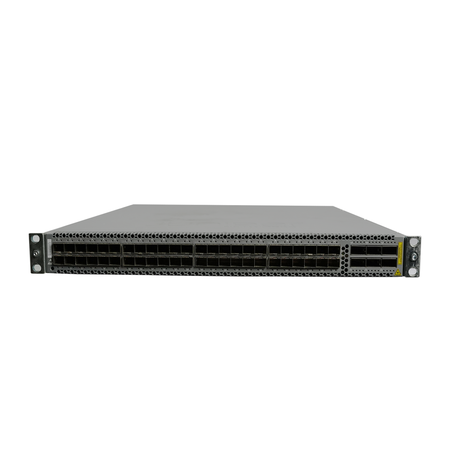

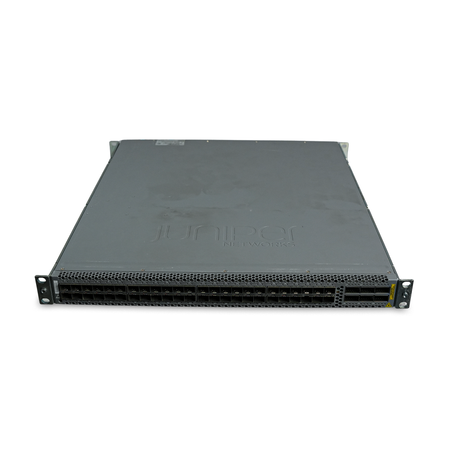

1U rackmount network switch with SFP ports, front view.
Juniper 48-Port 10GbE SFP+ QFX5100-48S-6Q 1U Rackmount 6x QSFP+ 40GbE Dual PSU Refurbished Network Switch

Juniper 48-Port 10GbE SFP+ QFX5100-48S-6Q 1U Rackmount 6x QSFP+ 40GbE Dual PSU Refurbished Network Switch

By Juniper Networks
| Contact Seller

Options

Type Network Switch
Network 48x SFP+ 1/10GbE + 6x QSFP+ 40GbE
Switching Capacity 1.44 Tbps
Form Factor 1U Rackmount
Power Dual 650W AC, N+1 Redundant
Condition Seller Refurbished
Warranty 6 Month Seller
Datasheet Juniper QFX5100
About this item

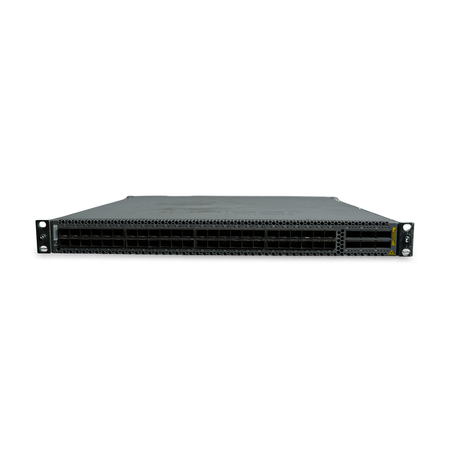

  • A 1U rackmount data center switch with 48x SFP/SFP+ ports (1/10GbE) and 6x QSFP+ uplink ports (40GbE).
  • Performance: 1.44 Tbps full-duplex switching capacity with a forwarding rate of 1.08 Bpps, supporting both Layer 2 and Layer 3 operation.
  • Port Flexibility: The 40GbE uplink ports can be configured as 4x10GbE using breakout cables, providing up to 72 logical 10GbE ports from a single switch.
  • Input Requirements: Dual 650W AC hot-swap power supplies, each accepting 100–240V AC at 7.8–3.8A, 50–60Hz, in an N+1 redundant configuration.

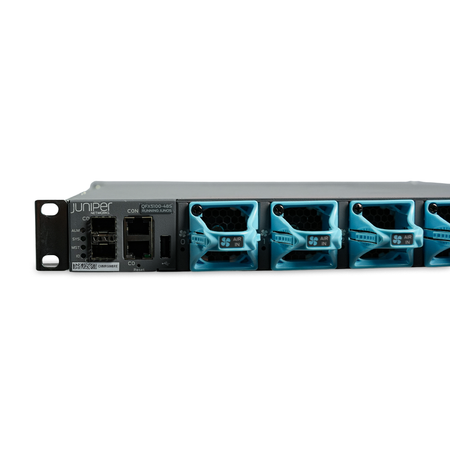

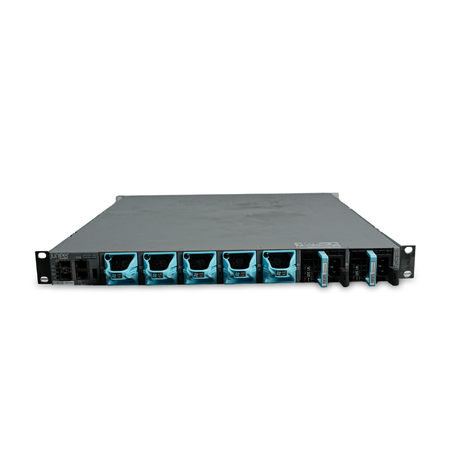

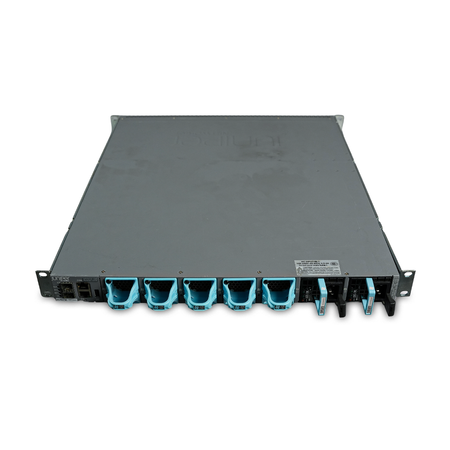

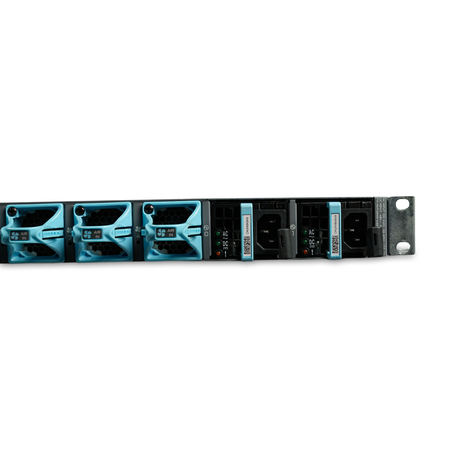

  • Cooling and Management: Five hot-swap fan trays with redundant airflow, dual SFP/RJ-45 management ports, and a console port for out-of-band access.
  • Software: Ships with Junos OS 20.4R3.S1.3 base operating system.
  • NOTE: This switch does not include SFP+ or QSFP+ transceivers, direct attach cables, or power cords.
Juniper 48-Port 10GbE SFP+ QFX5100-48S-6Q 1U Rackmount 6x QSFP+ 40GbE Dual PSU Refurbished Network Switch
$599.00 Only 1 left
Translation missing: en.general.icons.icon_check_circle icon Only 1 left! More may be available, contact your sales representative.
Order Within: Hours Minutes
To ship on:

Notify me when back in stock

Shop Promise Delivery
Got a datacenter to fill?

Our listed inventory is only part of what we stock. ServerPartDeals quotes bulk orders at hundreds or thousands of enterprise drives directly from deeper warehouse stock, with volume pricing on tested HDDs and SSDs.

Contact our sales team

Skip the headache, we'll procure for you.

Can't find the exact model, capacity, or quantity? ServerPartDeals sources hard-to-find enterprise hardware including drives, servers, RAM, GPUs, and networking gear through our vendor network, all tested before it ships.

Enterprise Hardware Procurement

Looking to liquidate? Get a credit toward your order.

Decommissioning or upgrading? ServerPartDeals buys back used enterprise drives and equipment and can apply the value as credit toward your next order! No separate ITAD process, no waiting on a payout.

Request a quote

Juniper Networks QFX5100
Juniper 48-Port 10GbE SFP+ QFX5100-48S-6Q 1U Rackmount 6x QSFP+ 40GbE Dual PSU Refurbished Network Switch Seller RefurbishedNetwork Switch6-mo warrantyOnly 1 left $599.00
Brand Juniper Networks
Model QFX5100-48S
Series QFX5100
Form Factor 1U Rackmount Switch
Network 48x SFP/SFP+ (1/10GbE) + 6x QSFP+ (40GbE)
Breakout Support 40GbE ports configurable as 4x10GbE - up to 72 logical 10GbE ports
Switching Capacity 1.44 Tbps full duplex
Forwarding Rate 1.08 Bpps
Layer Support Layer 2 / Layer 3
Operating System Junos OS 20.4R3.S1.3
Management Ports Dual SFP/RJ-45 management ports, console port
Rated Voltage / Current 100-240VAC / 7.8 - 3.8A per PSU
Rated Frequency 50-60HZ
Power Supply Dual 650W AC hot-swap
Redundancy Hot swappable, N+1
Cooling 5x hot-swap fan trays
Optics Included None - SFP+/QSFP+ transceivers sold separately
Included Accessories Rack mount brackets and rails
Software Licensing Base Junos OS only - no transferable feature licenses
