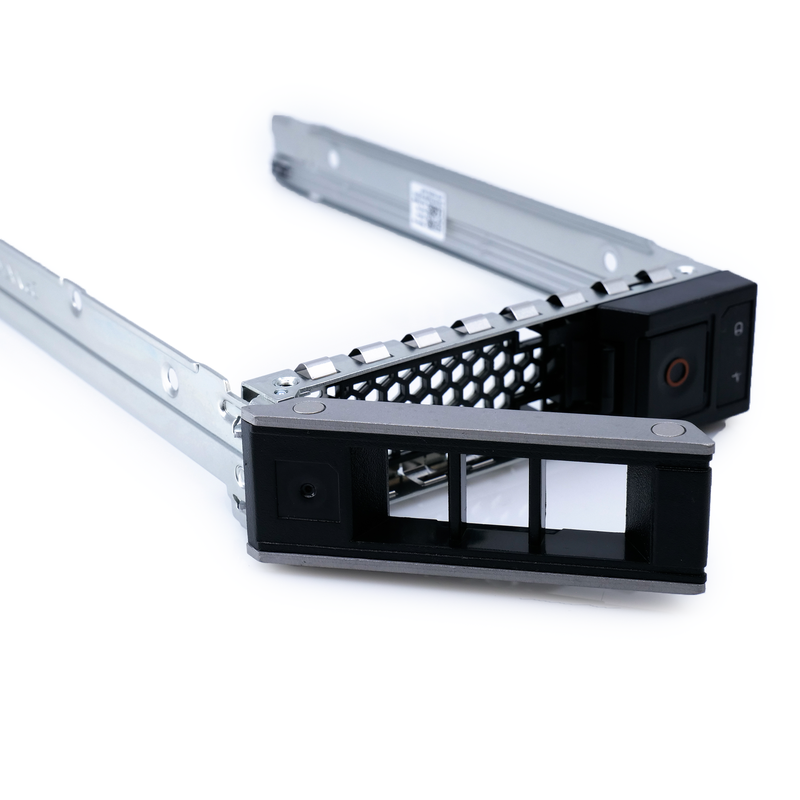

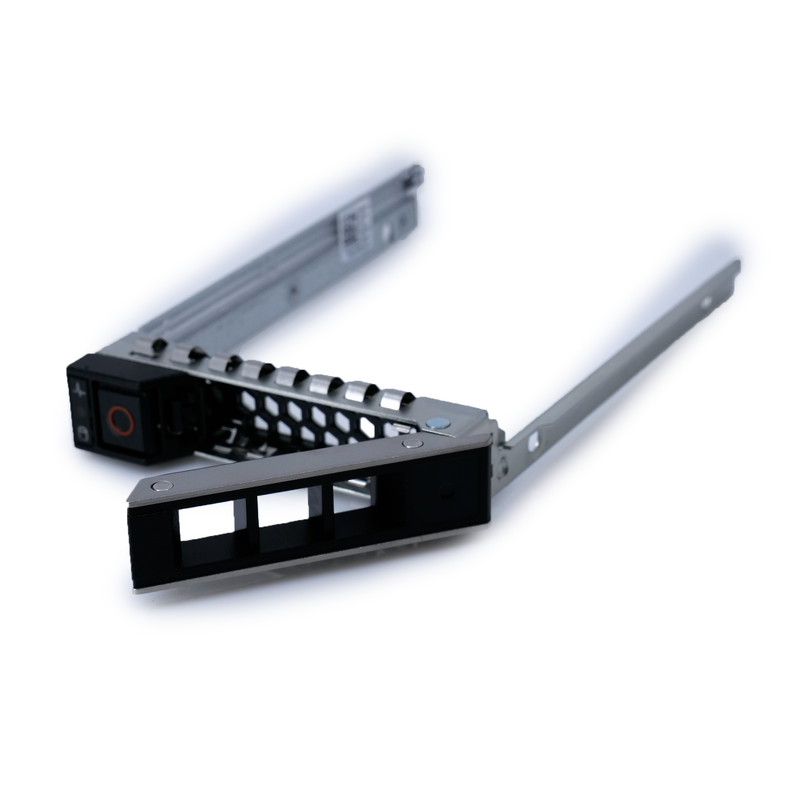

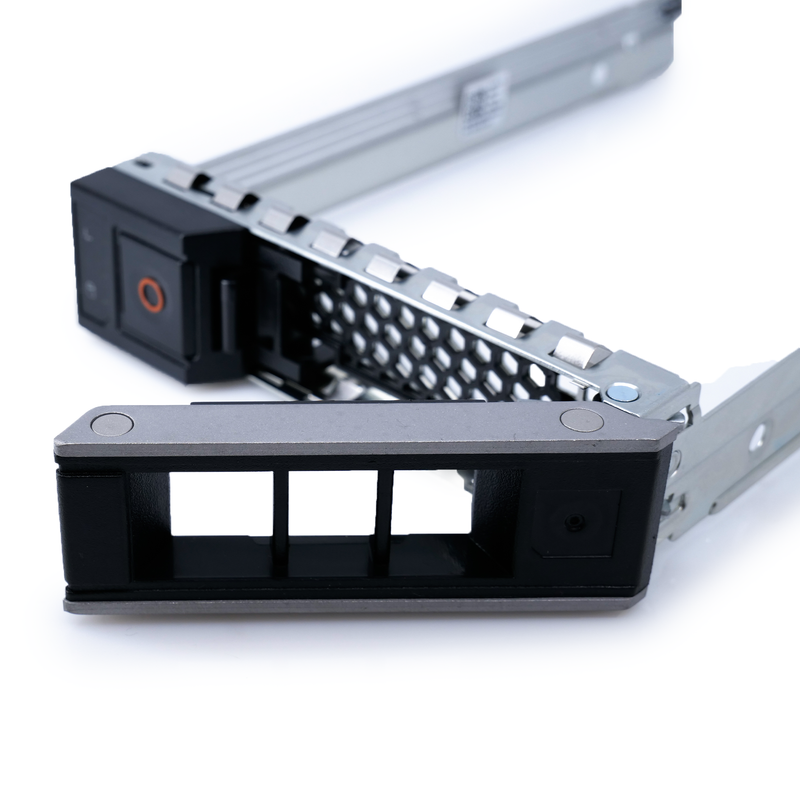

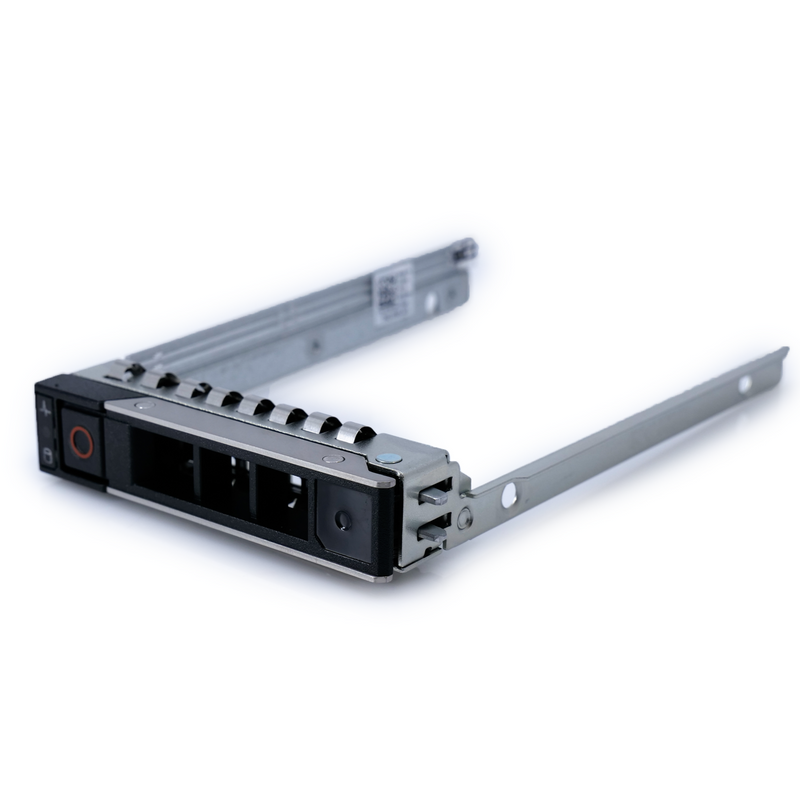

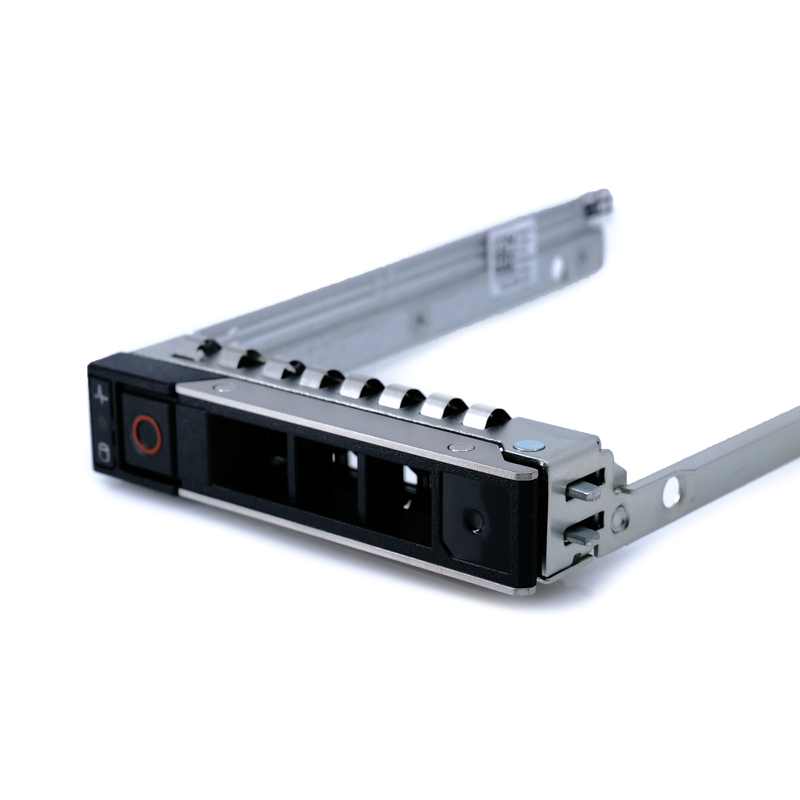

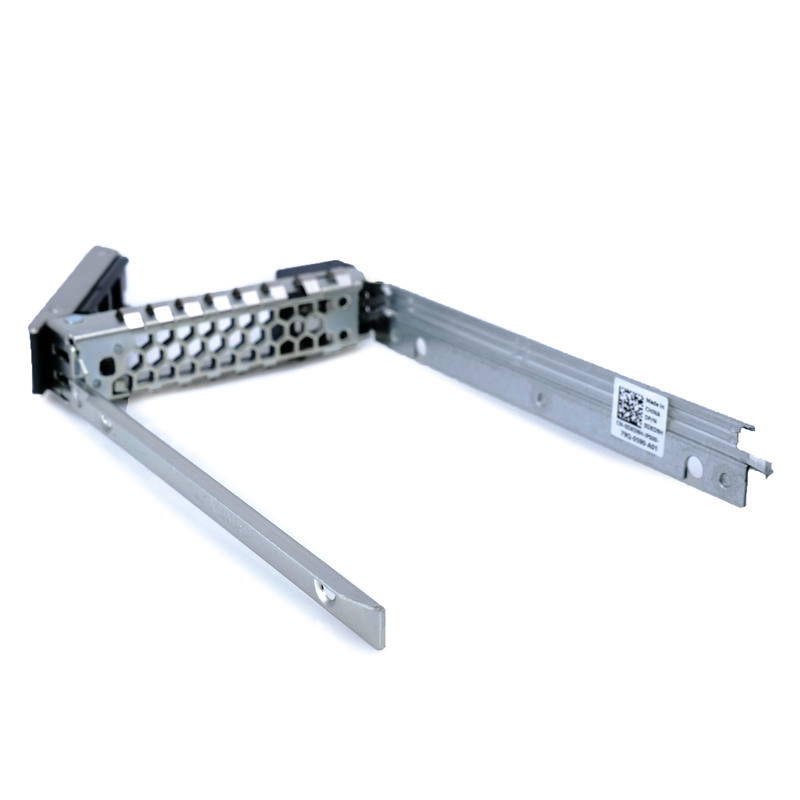

The Dell G14 DXD9H (also referred to as 0DXD9H) is a 2.5-inch Small Form Factor (SFF) hot-swap hard drive tray or caddy designed specifically for Dell PowerEdge 14th, 15th, and 16th generation servers. It allows for the secure mounting and quick replacement of SAS or SATA hard drives and solid-state drives (SSDs) without requiring system downtime.
Key Features and Specifications:
- Drive Compatibility: Supports any standard 2.5-inch SAS or SATA hard drive (HDD) or solid-state drive (SSD), including drive heights of 7mm, 9.5mm, and 15mm.
- Hot-Plug Capability: Designed for hot-swap operations, enabling users to add or replace drives while the server is running.

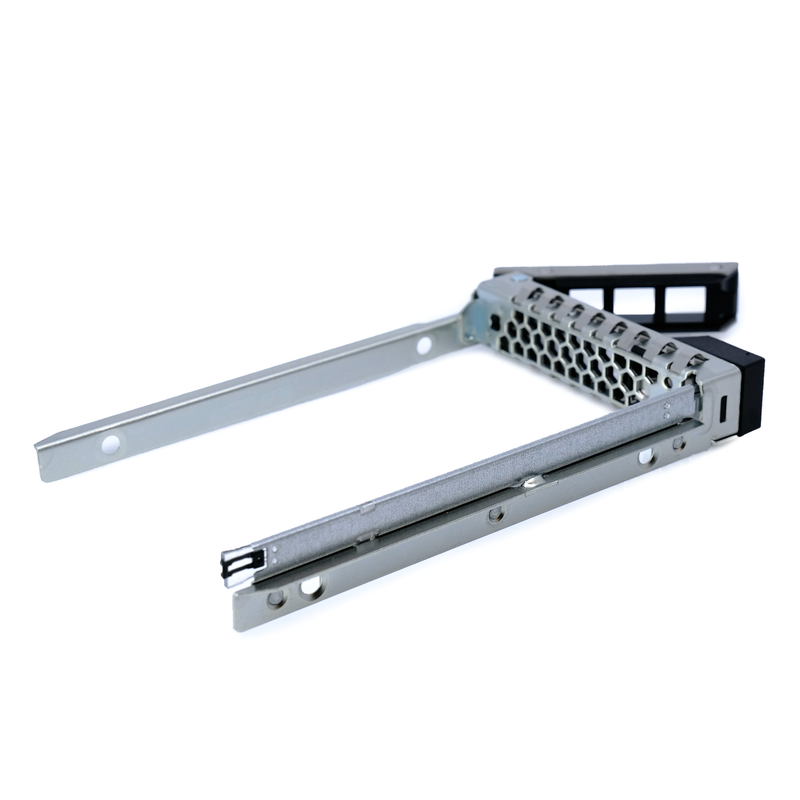

- Thermal Design: Features a hollow frame designed for optimal airflow and efficient heat dissipation to prevent drive overheating.
- Indicators: Includes support for status indicators, ensuring compatibility with Dell backplane LED status lights.
- Durable Build: Constructed with a high-quality metal frame and a plastic latch to provide secure housing and resistance to wear and tear.

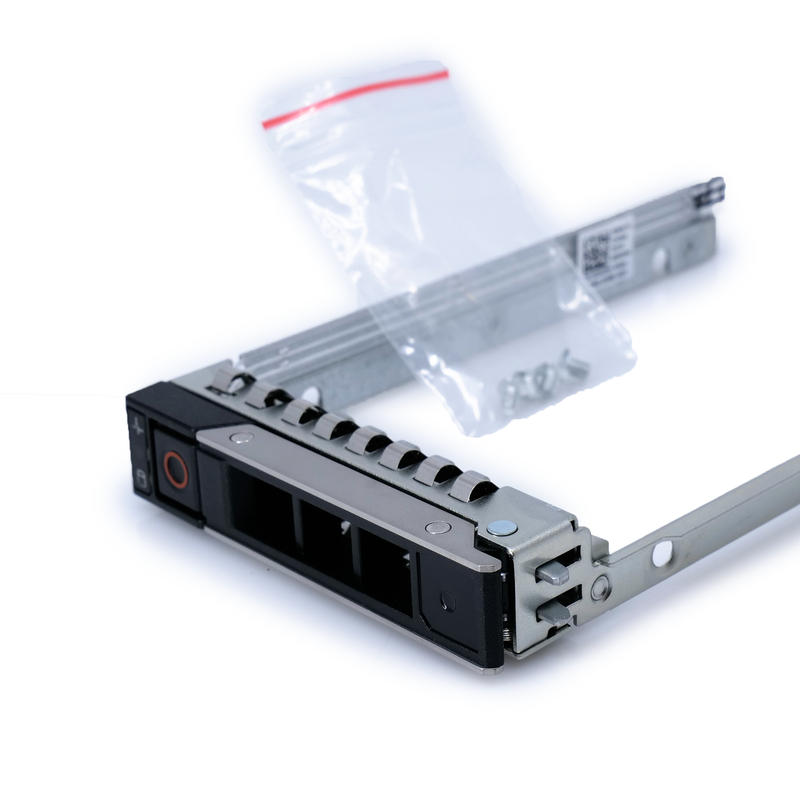

- Package Contents: Standard retail packs include one tray/caddy and four mounting screws for drive installation.
Compatibility:
The Dell G14 DXD9H is broadly compatible with Dell's 14th Gen through 16th Gen server lines:
- PowerEdge 16th Gen: R760, R760xs, R7615, R7625, R660, R6615, R6625, T560, HS5610, HS5620.
- PowerEdge 15th Gen: R750, R750xs, R7515, R7525, R650, R650xs, R6515, R6525, R550, T550, R450.
- PowerEdge 14th Gen: R340, R440, R540, R640, R740, R740xd, R840, R940, R940xa, R6415, R7415, R7425.
