Dell G13 G176J Tray Carrier Caddy SAS/SATA 2.5in
Dell G13 G176J Tray Carrier Caddy SAS/SATA 2.5in

Dell G13 G176J Tray Carrier Caddy SAS/SATA 2.5in

By Dell
| Contact Seller
About this item

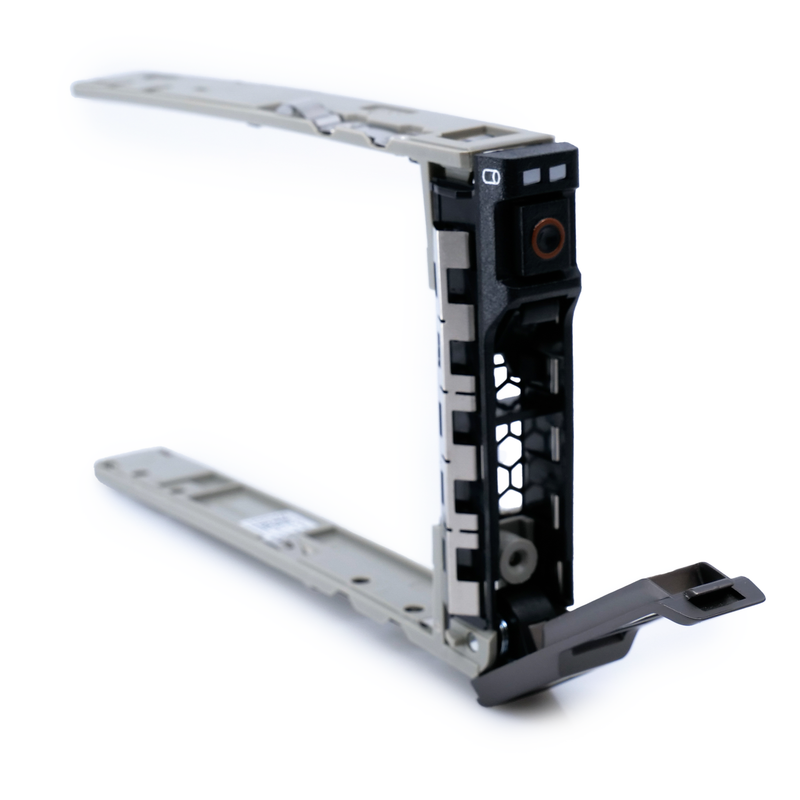

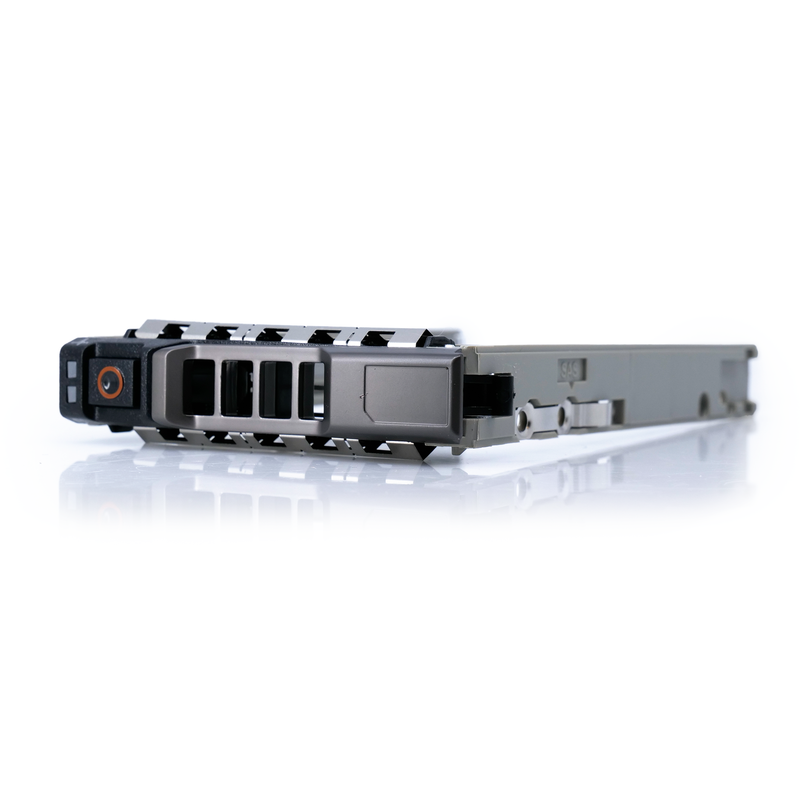

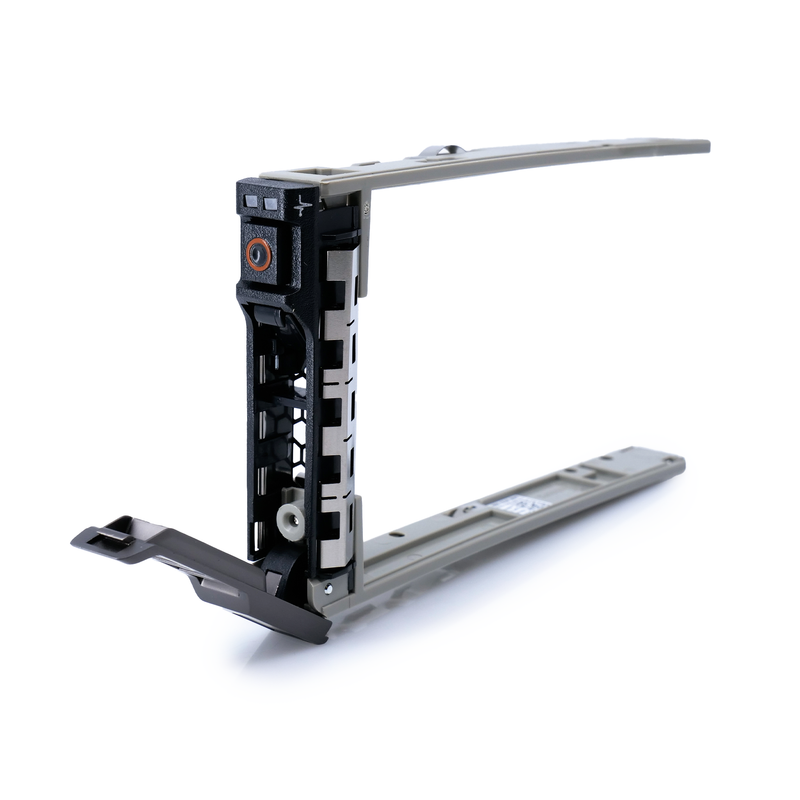

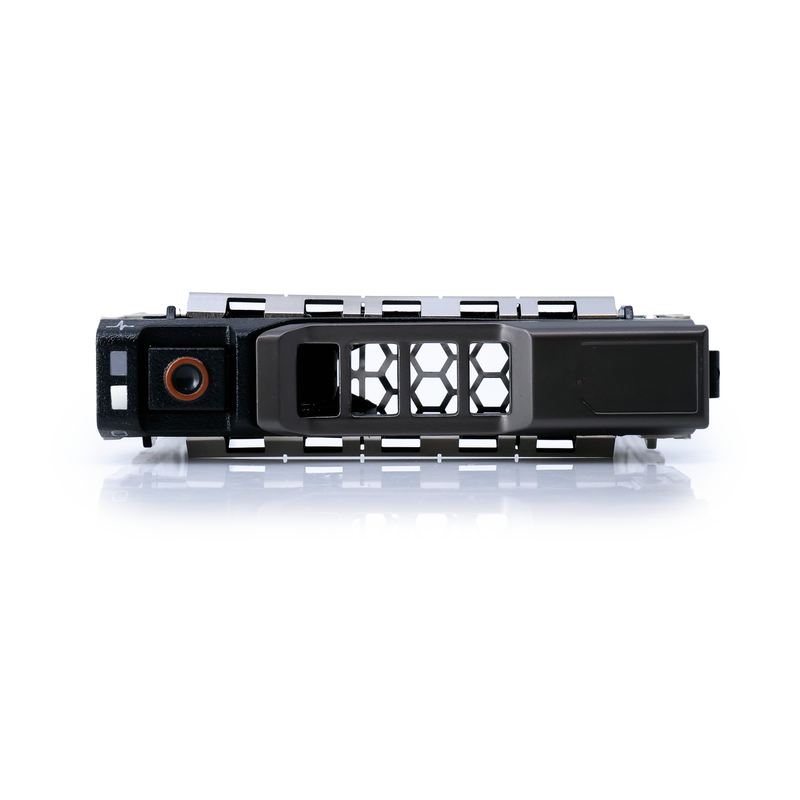

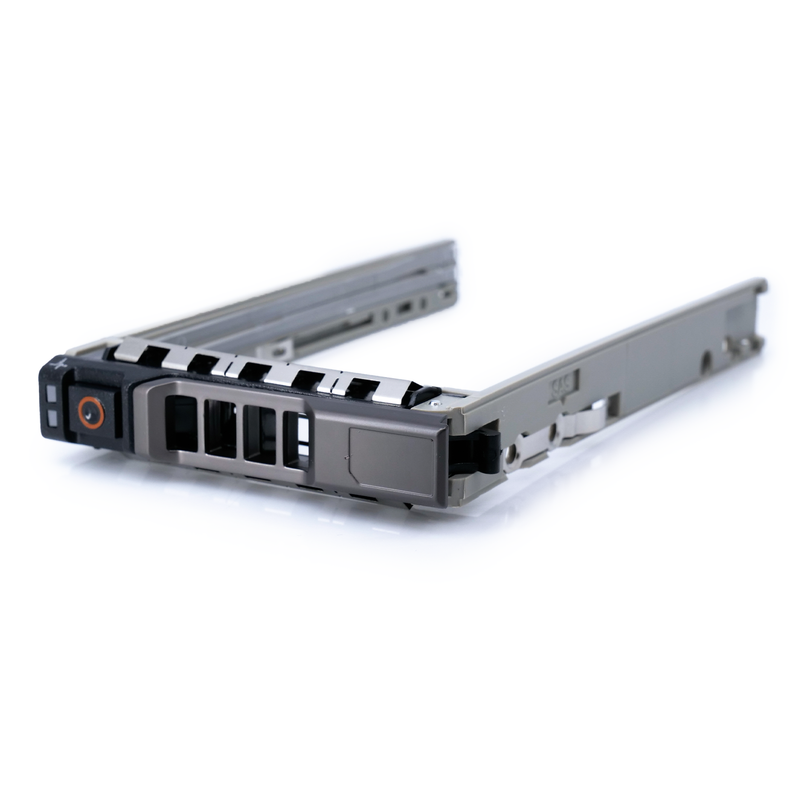

The Dell G13 G176J is a 2.5-inch Small Form Factor (SFF) hot-swap hard drive tray (caddy) primarily used to mount SAS, SATA, or SSD drives into Dell PowerEdge servers and PowerVault storage arrays. It is the standard SFF counterpart to the 3.5-inch F238F caddy and is essential for maintaining proper airflow and drive security in enterprise environments.

Key Features and Specifications:

  • Drive Compatibility: Supports standard 2.5-inch SAS and SATA hard drives (HDD) and solid-state drives (SSD).
  • Form Factor: 2.5-inch Small Form Factor (SFF).

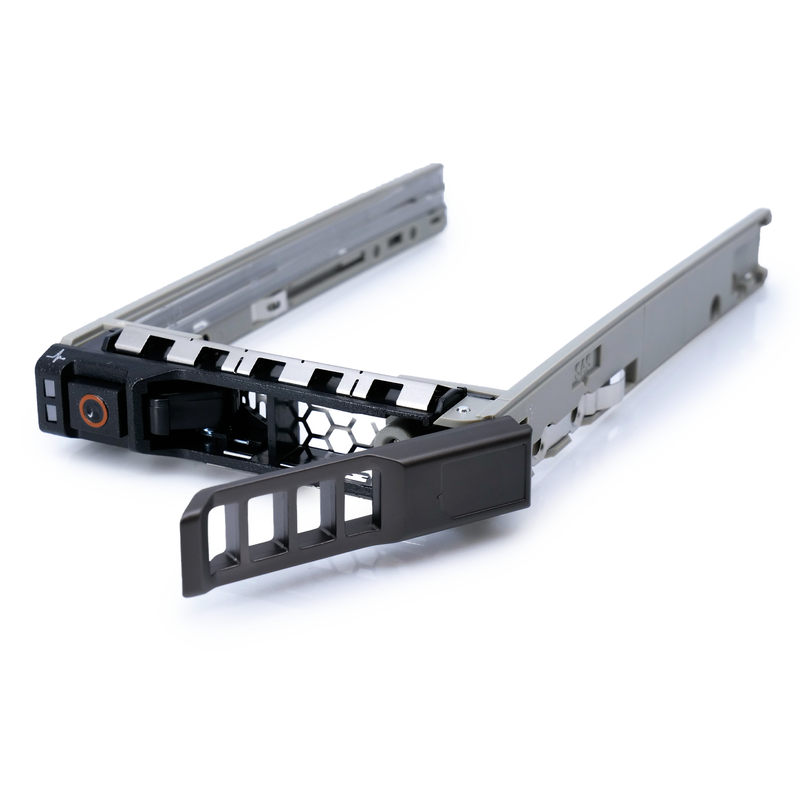

  • Hot-Swap Functionality: Includes a release button and handle for inserting or removing drives while the server is powered on.
  • Indicators: Includes support for status indicators, ensuring compatibility with Dell backplane LED status lights.
  • Build Quality: Constructed from metal for durability and to prevent deformation.

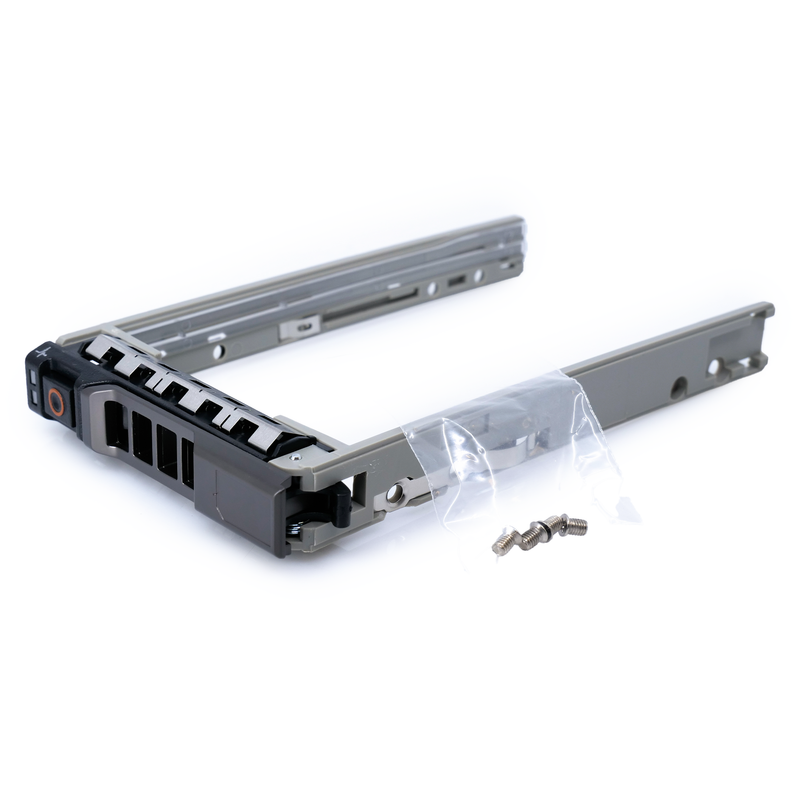

  • Included Accessories: Ships with four mounting screws required to secure the drive to the tray.

Compatibility:

The Dell G13 G176J is compatible with Dell systems from the 11th through 14th generations that are equipped with 2.5-inch hot-plug backplanes:

  • PowerEdge R-Series: R210, R310, R320, R330, R410, R415, R420, R430, R510, R515, R610, R620, R630, R710, R715, R720, R720XD, R730, R730XD, R810, R815, R820, R830, R910, R920, R930.
  • PowerEdge T-Series: T310, T320, T410, T420, T430, T440, T610, T620, T630, T640, T710.
  • PowerEdge M-Series: M600, M605, M610, M710, M805, M905, M910, M1000e.
  • PowerVault Storage: MD1120, MD1220, MD1420, MD3220, MD3220i, MD3420, MD3620i.
Dell G13 G176J Tray Carrier Caddy SAS/SATA 2.5in
$19.99 60 in stock
Translation missing: en.general.icons.icon_check_circle icon 60 in stock More may be available, contact your sales representative.
Order Within: Hours Minutes
To ship on:

Notify me when back in stock

Shop Promise Delivery
Got a datacenter to fill?

Our listed inventory is only part of what we stock. ServerPartDeals quotes bulk orders at hundreds or thousands of enterprise drives directly from deeper warehouse stock, with volume pricing on tested HDDs and SSDs.

Contact our sales team

Skip the headache, we'll procure for you.

Can't find the exact model, capacity, or quantity? ServerPartDeals sources hard-to-find enterprise hardware including drives, servers, RAM, GPUs, and networking gear through our vendor network, all tested before it ships.

Enterprise Hardware Procurement

Looking to liquidate? Get a credit toward your order.

Decommissioning or upgrading? ServerPartDeals buys back used enterprise drives and equipment and can apply the value as credit toward your next order! No separate ITAD process, no waiting on a payout.

Request a quote

Dell Generation 13 Caddies Tray
Dell G13 G176J Tray Carrier Caddy SAS/SATA 2.5in NewTray3-yr warranty60 in stock $19.99
  • Dell G176J Tray
  • For PowerEdge G11-G13 systems with 2.5" Chassis
  • Includes screws
Type Enterprise
Brand Dell
Series Generation 13
Model Number G176J Tray Carrier Caddy
Part Number G176J
Form Factor 2.5"
Interface SAS/SATA
Tray 2.5 inch Dell G13 tray G176J
Compatible Dell 13G Servers (2.5in chassis) R330, R430, R630, R730, R730XD, R830, R930
Compatible Dell 12G Servers (2.5in chassis) R220, R320, R420, R620, R720, R720XD, R820, R920
Compatible Dell 11G Servers (2.5in chassis) R210, R410, R415, R510, R515, R610, R710, R715, R815, R910
Weight 0.5lb
Width 2.7in
Height 0.4in
Depth 4in
