ATTO ExpressSAS H1244 ESAH-1244-000 12Gb/s SAS/SATA PCIe 3.0 x8 HBA
ATTO ExpressSAS H1244 ESAH-1244-000 12Gb/s SAS/SATA PCIe 3.0 x8 HBA

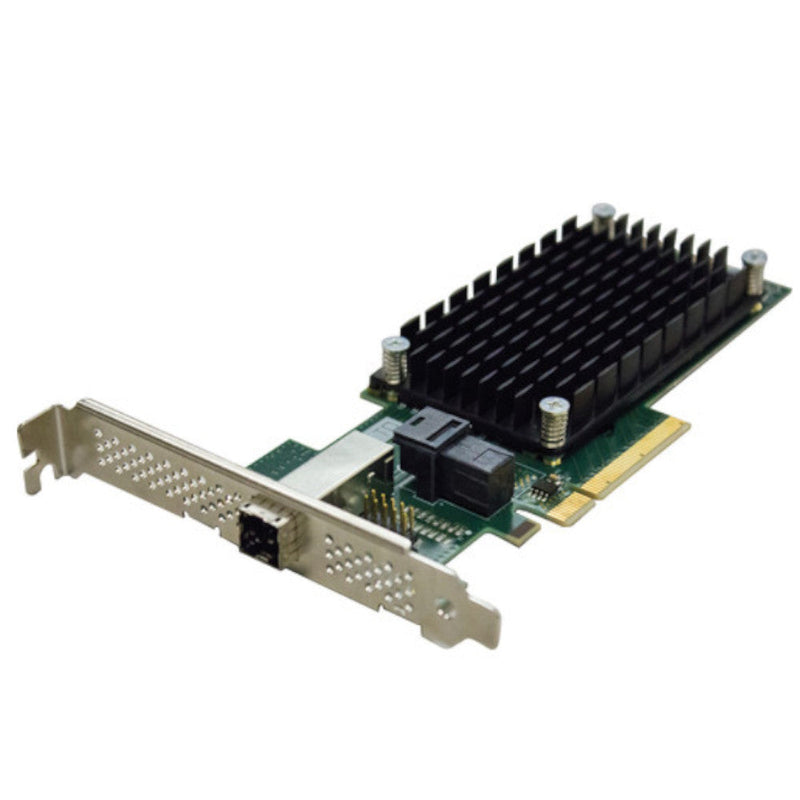

ATTO Technology ExpressSAS H1244 12 Gb/s SAS/SATA to PCIe 3.0 Host Bus Adapter (ESAH-1244-000)
Supports up to 1024/2048/2048 targets
Over 1 million sustained IOPS
Onboard RAID 0/1/1e/10 configuration software included
Dual port SAS support for redundant configurations
1200 MB/s maximum sustained throughput per port
TAA Compliant
The ExpressSAS H1244 12 Gb/s SAS/SATA to PCIe 3.0 Host Bus Adapter from ATTO Technology provides high performance direct attach connectivity for server storage, JBOD and RAID arrays. With a wide variety of port configurations and built-in RAID 0, 1, 1e, and 10, these adapters offer flexibility for every range of application. The speed of the 12 Gb/s SAS interface, coupled with a PCIe 3.0 x8 host interface, delivers a dense and efficient connection to all types of storage, from rack-mounted servers and workstations in data center, data warehousing, VOD, and other high-availability, high-performance applications.
Industry Proven Technology
The host adapter provides data protection to direct attached SAS and SATA storage. With a wide variety of port configurations and built-in RAID 0/1/1e/10, this adapter offers flexibility for every range of application.
Flexible Connectivity Solutions
The adapter is available with eight ports to support an efficient connection to storage from rack-mounted servers and workstations in datacenter, data warehousing, VOD, and other high-availability, high-performance applications.
Performance
The adapter combines 12 Gb/s SAS speeds and PCIe 3.0 x8 with hardware and software elements to manage latency in real-time environments. Advanced Data Streaming (ADS) Technology maximizes CPU processes to deliver smooth and reliable data transfers, and consistent performance close attention to detail in board design and signal integrity to help minimize transmission errors and data corruption.
Advanced Management Tools
ATTO's easy-to-use ConfigTool features an intuitive GUI that simplifies the installation, management and monitoring of the host bus adapter. With advanced troubleshooting and performance tuning capabilities, the adapter provides you with sophisticated diagnostics and the flexibility to control settings for specific applications. The ATTO Technology offers a broad array of management and diagnostic capabilities. This adapter is able to help isolate cable and connector failures (and intermittent problems) through independent control of each port, as well as discovery and cable management of data passed through the mini-SAS HD connectors.
Advanced Data Streaming (ADS)
Latency Management technology that controls the acceleration of data transfers to move large amounts of data efficiently.
Key Features
Automatic Link Negotiation:
12 Gb/s, 6 Gb/s, and 3 Gb/s SAS targets
6 Gb/s, 3 Gb/s and 1/5 Gb/s SATA targets
Supports up to 1024/2048/2048 targets
Onboard RAID 0/1/1e/10 configuration software included
Supports Serial SCSI Protocol (SSP), SATA Tunneling Protocol (STP), SMP, SAT, and direct attached SATA protocol
Supports T10-DIF standards
16MB on-board flash memory to store persistent parameters
Wide-port end device support
Supports ATAPI devices
Dual port SAS support for redundant configurations
Support for SAS tape devices and transport layer retries (TLR) for error handling
Target Mode Driver (TMD) development kit available for storage servers, storage systems, and appliances
Driver support for the Windows, Linux, and VMware operating systems
User Benefits
1200 MB/s maximum sustained throughput per port
1M+ IOPS sustained
Over 1 million sustained IOPS
Flexible connectivity options for internal and external storage
Compatible with SAS and SATA technology
Low power consumption
| Type | Enterprise |
|---|---|
| Brand | ATTO |
| Series | ExpressSAS H1244 |
| Model Number | ESAH-1244-000 |
| Part Number | |
| Form Factor | Full Height PCIe |
| Capacity | Single Port |
| Interface | PCIe |
| Spindle Speed | |
| Tray | |
| Weight | |
| Width | |
| Height | |
| Depth |
