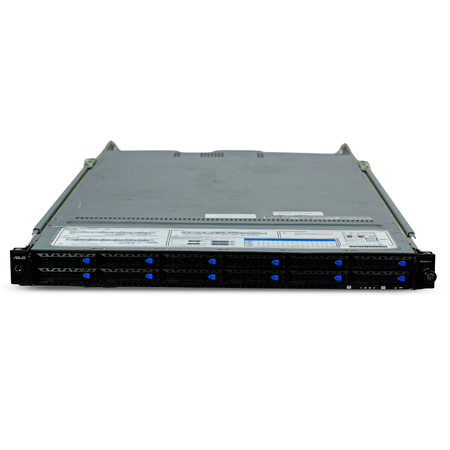

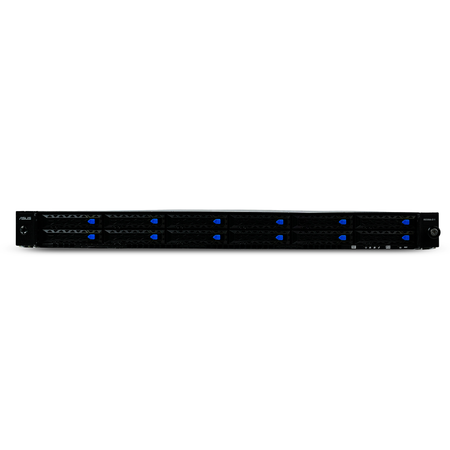

ASUS 1U server front with 12 drive bays.
ASUS RS500A-E11-RS12U 1U Rack Server — Single AMD EPYC 7742 64-Core (64 Total), 3x PCIe Gen4 Slots + 1x OCP 3.0, 16x DDR4 DIMM Slots, 12-Bay 2.5", 1x ConnectX-5 Dual-Port — CPU Only Refurbished

ASUS RS500A-E11-RS12U 1U Rack Server — Single AMD EPYC 7742 64-Core (64 Total), 3x PCIe Gen4 Slots + 1x OCP 3.0, 16x DDR4 DIMM Slots, 12-Bay 2.5", 1x ConnectX-5 Dual-Port — CPU Only Refurbished

By ASUS
| Contact Seller

Condition

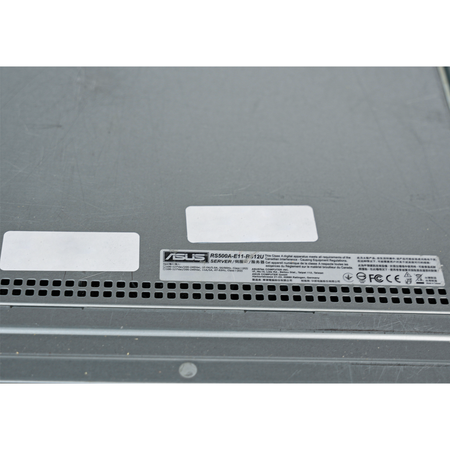

Model ASUS RS500A-E11-RS12U 1U
Processor Single AMD EPYC 7742
Form Factor 1U rackmount
PCIe Slots 3x PCIe (1x Gen4 ×16 + 1x LP Gen4 ×16 + 1x LP Gen4 ×8) + 1x OCP 3.0
Networking 2× 1GbE + 1x Dedicated Management + 1x Mellanox ConnectX-5
Condition Seller Refurbished
Warranty 6 Months Seller
How We Test

Every unit is diagnostic-tested and verified healthy before shipment. Learn about our full testing process ↓

About this item

ASUS RS500A-E11-RS12U Datasheet

The ASUS RS500A-E11-RS12U is a 1U rackmount single-socket server built for general-purpose and enterprise applications. Powered by a single AMD EPYC 7742 processor and supporting up to twelve front hot-swap 2.5-inch drives, it delivers high core density and PCIe Gen4 expansion for demanding data center applications.

  • Single AMD EPYC 7742 — 64-Core (64 Total), 7nm
  • 3x PCIe Gen4 Slots — 1x x16 full-height half-length, 1x x16 low-profile, and 1x x8 low-profile, plus 1x OCP 3.0 mezzanine socket (Gen4 x16 link); installed add-in card occupies one slot, so available expansion depends on configuration
  • 16x DDR4 DIMM Slots — 8-channel DDR4, RDIMM/LRDIMM/LRDIMM 3DS up to 256GB per module at speeds up to 3200 MHz

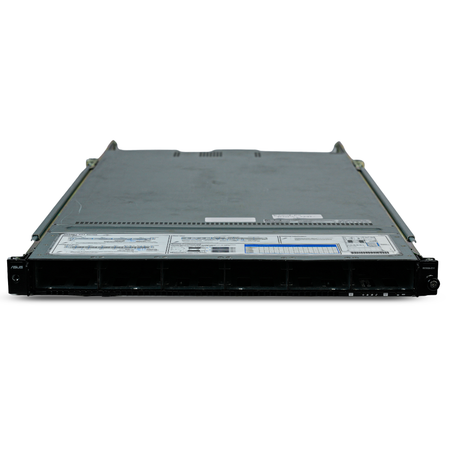

  • 12× 2.5" Hot-Swap Bays — backplane supports 12x NVMe/SATA/SAS devices, front-accessible, plus 2x onboard M.2 sockets; SAS drives require an add-in controller
  • Dual 1GbE Networking — Intel I350-AM2 controller, dedicated management port, plus 1x Mellanox ConnectX-5 add-in controller
  • No RAID Controller — none installed; platform supports SATA and NVMe drives directly

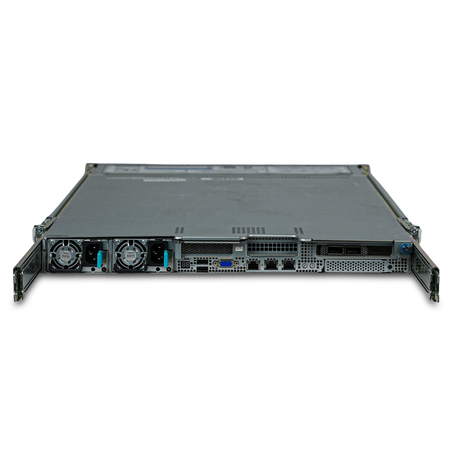

  • Dual 800W Platinum-Rated PSUs — 1+1 redundant; requires C13 power cords, not included
  • Aspeed AST2600 Remote Management — out-of-band monitoring and control via ASMB10-iKVM

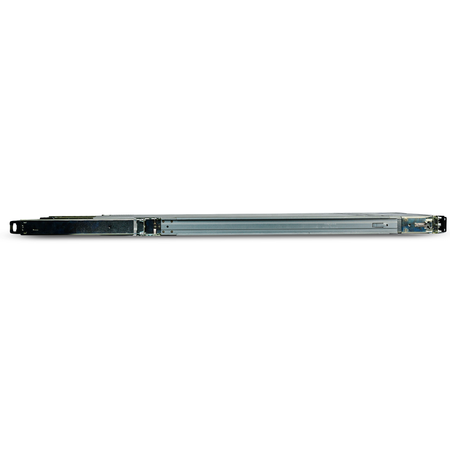

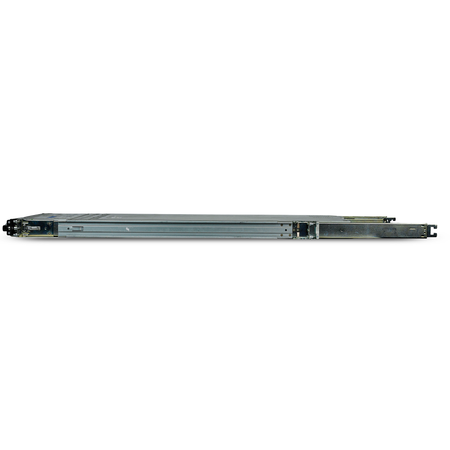

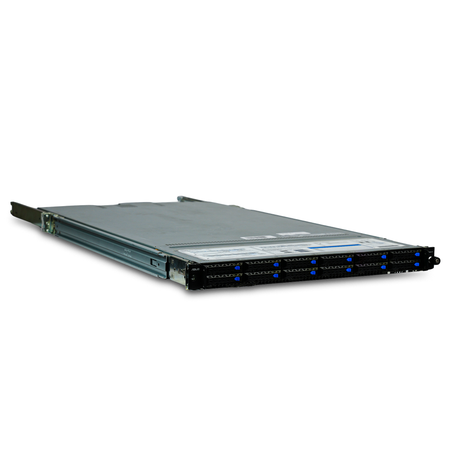

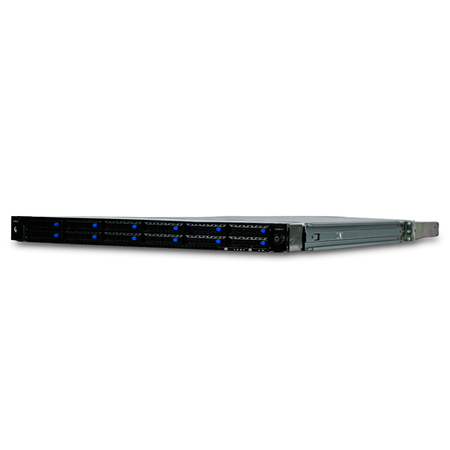

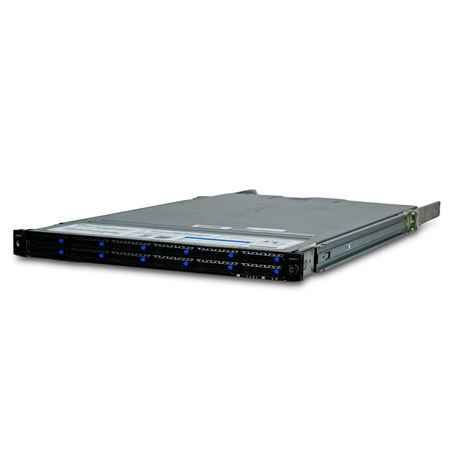

  • CPU Only — no RAM or drives included. Ships with inner rails only (outer rails not included) and all 12 drive carriers
ASUS RS500A-E11-RS12U 1U Rack Server — Single AMD EPYC 7742 64-Core (64 Total), 3x PCIe Gen4 Slots + 1x OCP 3.0, 16x DDR4 DIMM Slots, 12-Bay 2.5", 1x ConnectX-5 Dual-Port — CPU Only Refurbished
$3,534.00 Out of stock
Out of Stock. Need this item? Request a quote.
Translation missing: en.general.icons.icon_check_circle icon Out of stock More may be available, contact your sales representative.
Order Within: Hours Minutes
To ship on:

Notify me when back in stock

Shop Promise Delivery
Got a datacenter to fill?

Our listed inventory is only part of what we stock. ServerPartDeals quotes bulk orders at hundreds or thousands of enterprise drives directly from deeper warehouse stock, with volume pricing on tested HDDs and SSDs.

Contact our sales team

Skip the headache, we'll procure for you.

Can't find the exact model, capacity, or quantity? ServerPartDeals sources hard-to-find enterprise hardware including drives, servers, RAM, GPUs, and networking gear through our vendor network, all tested before it ships.

Enterprise Hardware Procurement

Looking to liquidate? Get a credit toward your order.

Decommissioning or upgrading? ServerPartDeals buys back used enterprise drives and equipment and can apply the value as credit toward your next order! No separate ITAD process, no waiting on a payout.

Request a quote

NVMe/SAS/SATA Server
ASUS RS500A-E11-RS12U 1U Rack Server — Single AMD EPYC 7742 64-Core (64 Total), 3x PCIe Gen4 Slots + 1x OCP 3.0, 16x DDR4 DIMM Slots, 12-Bay 2.5", 1x ConnectX-5 Dual-Port — CPU Only Refurbished Seller RefurbishedServer6-mo warrantyOut of stock $3,534.00

The ConnectX-5 version of the ASUS RS500A-E11-RS12U combines a dual-port Mellanox ConnectX-5 network adapter with a single AMD EPYC 7742 processor, 64-Core (64 Total). This refurbished 1U server has sixteen DDR4 DIMM slots and twelve 2.5-inch hot-swap storage bays. Expansion includes three PCIe Gen4 slots (one x16 full-height, one x16 low-profile, and one x8 low-profile) plus an OCP 3.0 mezzanine socket; the installed add-in card occupies one of these, so available expansion capacity depends on the current configuration. Power is supplied by two 800W Platinum-rated units in a 1+1 redundant arrangement. Sold as CPU only — no memory, drives, or power cords included. Drive carriers included as pictured; inner rails only, outer rail kit not included.

Type Server
Brand ASUS
Series RS500A-E11
Model Number RS500A-E11-RS12U
Form Factor 1U Rackmount
CPU 1x AMD EPYC 7742 64-Core (64 Total), 2nd Gen
RAM Slots DDR4 16 x DIMM
Expansion Slots 3x PCIe (1x Gen4 x16 + 1x LP Gen4 x16 + 1x LP Gen4 x8) + 1x OCP 3.0
Networking 2x 1GbE (Intel I350-AM2) + 1x Dedicated Management + 1x Mellanox ConnectX-5
Power Supply 2× 800W Platinum-Rated (1+1)
Storage 12× 2.5" NVMe/SATA/SAS Hot-Swap (SAS requires add-in controller)

Warranty

Condition - Seller Refurbished : 6 Months Seller Warranty
Satisfaction Guarantee: Return for refund within 30 days of package reception date.
This item is covered by serverpartdeals.com Return Policy
To initiate a return please fill out the Return Form
For frequently asked questions about warranties and returns please visit our FAQs

Disclaimer

Some references may appear on this website or product descriptions to trademarks belonging to others not affiliated with ServerPartDeals.com (SPD), including references which may not display the ® symbol. All third-party trademarks (including logos and icons) referenced by SPD remain the property of their respective owners. Unless specifically identified as such, SPD’s use of third-party trademarks does not indicate any relationship, sponsorship, or endorsement between SPD and the owners of these trademarks. Any references by SPD to third party trademarks is to identify the corresponding third-party goods and/or services and shall be considered nominative fair use under trademark law.

Warning

WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

This animation is a visual aid only and does not represent the actual testing methodology, sequence, or results for this drive.

We test every server before you do.

Every server Server Part Deals sells passes an internal 4-stage testing protocol before it ships. While many resellers stop at a basic power-on check, we validate installed hardware, firmware, system performance, thermals, and stability under sustained load. Each server is tested to confirm that it meets or exceeds its listed specifications.

Stage 1: Physical Inspection

  • Chassis and structural inspection
  • Port, connector, and backplane check
  • Fan, heatsink, and airflow inspection
  • Shipping-damage and component-security check

Stage 2: Hardware & Firmware Validation

  • CPU, RAM, and storage verification
  • BIOS and firmware validation
  • RAID and controller detection
  • Remote-management interface check

Stage 3: Performance Testing

  • Processor and memory benchmarking
  • Storage and network throughput testing
  • Multi-component load simulation
  • Power and thermal-performance validation

Stage 4: Stability & System Testing

  • Extended burn-in testing
  • Hardware-error and event-log review
  • Fan, temperature, and power monitoring
  • Final boot and configuration verification
