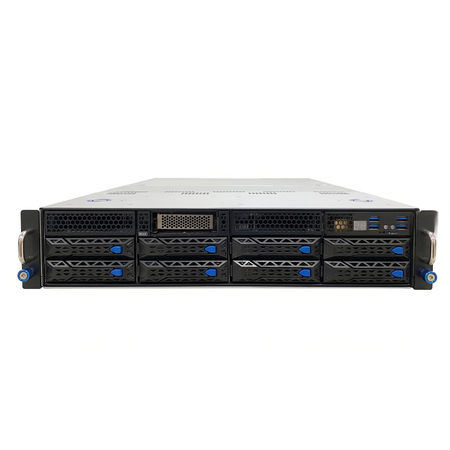

ASUS ESC4000A-E10 2U GPU Server — Single AMD EPYC 7702P 64-Core (128 Threads), 7x PCIe Gen4 Slots, 8x DDR4 DIMM Slots, 8-Bay 3.5"/2.5", 2x Onboard 1GbE, 1x ConnectX-5 Ex Dual-Port, 1x I350 Dual-Port 1GbE, 2x 2200W PSU — CPU Only Refurbished
ASUS ESC4000A-E10 2U GPU Server — Single AMD EPYC 7702P 64-Core (128 Threads), 7x PCIe Gen4 Slots, 8x DDR4 DIMM Slots, 8-Bay 3.5"/2.5", 2x Onboard 1GbE, 1x ConnectX-5 Ex Dual-Port, 1x I350 Dual-Port 1GbE, 2x 2200W PSU — CPU Only Refurbished
How We Test
Every unit is diagnostic-tested and verified healthy before shipment. Learn about our full testing process ↓
About this item
The ASUS ESC4000A-E10 is a 2U single-socket accelerator server built for HPC, virtualization, cloud and enterprise workloads. This unit is configured with one AMD EPYC 7702P processor, 64-Core (128 Threads), and eight 3.5"/2.5" hot-swap bays with a backplane supporting four SATA/SAS and four SATA/SAS/NVMe devices. No HBA or RAID controller is installed, so SAS drives require an add-in card in the dedicated PCIe Gen4 x8 slot; note that enabling all four NVMe bays requires moving the Slimline cables from the PCIe riser board to the backplane. It has eight DDR4 DIMM slots supporting up to 2TB of 3200MHz RDIMM memory, and expansion includes four PCIe Gen4 x16 full-height full-length slots for dual-slot GPU cards (or eight x8 slots for single-slot cards), two low-profile PCIe Gen4 x16 slots, one PCIe Gen4 x8 slot for an HBA or RAID card, and one M.2 socket; a dual-port Mellanox ConnectX-5 Ex adapter and a dual-port Intel I350 Gigabit adapter are installed, so available expansion capacity depends on the current configuration. Networking is 2x Gigabit LAN via an onboard Intel I350-AM2 controller with a dedicated management port, plus the installed ConnectX-5 Ex and I350 adapters, and remote management is handled by an AST2500 BMC. Power is supplied by two 2200W Platinum-rated units in a 2+0 configuration, with both units required and no redundancy. Sold as CPU only — no memory, GPUs, or drives included. Ships with a power cable and inner rails only; outer rail kit not included.
| Type | GPU Server |
|---|---|
| Brand | ASUS |
| Series | ESC4000A |
| Model Number | ESC4000A-E10 |
| Form Factor | 2U Rackmount |
| CPU | 1x AMD EPYC 7702P 64-Core (128 Threads), 2nd Gen |
| RAM Slots | No RAM Installed (8x DDR4 DIMM, Up to 2TB, 3200 MT/s RDIMM) |
| Expansion Slots | 4x PCIe Gen4 ×16 FH/FL for GPUs (or 8x x8) + 2x LP Gen4 ×16 + 1x Gen4 ×8 for HBA/RAID — ConnectX-5 Ex and I350 installed |
| Networking | 2x Onboard 1GbE + Dual-Port ConnectX-5 Ex + Dual-Port I350 1GbE + Mgmt Port |
| Power Supply | 2× 2200W Platinum-Rated (2+0) |
| Storage | 4× 3.5"/2.5" NVMe/SATA/SAS + 4× 3.5"/2.5" SATA/SAS Hot-Swap |
| Management | Aspeed AST2500 BMC (IPMI) with dedicated port |
| RAID Controller | None installed — SAS requires an add-in card, not included |
Warranty
|
Condition - Seller Refurbished : 6 Months Seller Warranty
|
|
| Satisfaction Guarantee: Return for refund within 30 days of package reception date. | |
| This item is covered by serverpartdeals.com Return Policy | |
| To initiate a return please fill out the Return Form | |
| For frequently asked questions about warranties and returns please visit our FAQs |
Disclaimer
Some references may appear on this website or product descriptions to trademarks belonging to others not affiliated with ServerPartDeals.com (SPD), including references which may not display the ® symbol. All third-party trademarks (including logos and icons) referenced by SPD remain the property of their respective owners. Unless specifically identified as such, SPD’s use of third-party trademarks does not indicate any relationship, sponsorship, or endorsement between SPD and the owners of these trademarks. Any references by SPD to third party trademarks is to identify the corresponding third-party goods and/or services and shall be considered nominative fair use under trademark law.Warning
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
This animation is a visual aid only and does not represent the actual testing methodology, sequence, or results for this drive.
We test every server before you do.
Every server Server Part Deals sells passes an internal 4-stage testing protocol before it ships. While many resellers stop at a basic power-on check, we validate installed hardware, firmware, system performance, thermals, and stability under sustained load. Each server is tested to confirm that it meets or exceeds its listed specifications.
Stage 1: Physical Inspection
- Chassis and structural inspection
- Port, connector, and backplane check
- Fan, heatsink, and airflow inspection
- Shipping-damage and component-security check
Stage 2: Hardware & Firmware Validation
- CPU, RAM, and storage verification
- BIOS and firmware validation
- RAID and controller detection
- Remote-management interface check
Stage 3: Performance Testing
- Processor and memory benchmarking
- Storage and network throughput testing
- Multi-component load simulation
- Power and thermal-performance validation
Stage 4: Stability & System Testing
- Extended burn-in testing
- Hardware-error and event-log review
- Fan, temperature, and power monitoring
- Final boot and configuration verification
