Supermicro AS-1014S-WTRT 1U Rack Server — Single AMD EPYC 7352 24-Core (48 Threads), 3x PCIe Gen4 Slots, 8x DDR4 DIMM Slots, 4-Bay 3.5", 2x Onboard 10GbE, 1x ConnectX-5 Dual-Port, 1+1 500W — CPU Only Refurbished
Every unit is diagnostic-tested and verified healthy before shipment. Learn about our full testing process ↓

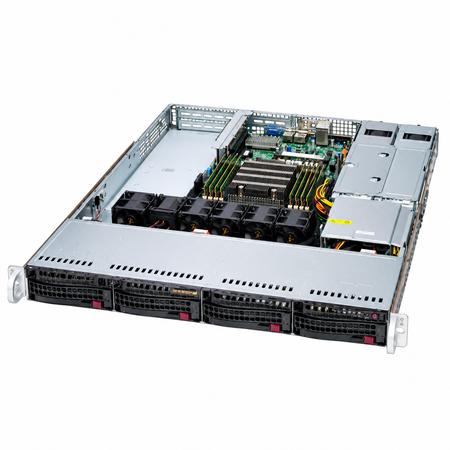

The ConnectX-5 version of the Supermicro AS-1014S-WTRT combines a dual-port ConnectX-5 network adapter with a single AMD EPYC 7352 processor, 24-Core (48 Threads). This refurbished 1U server has eight DDR4 DIMM slots and four 3.5-inch hot-swap storage bays. Expansion includes two full-height PCIe Gen4 x16 slots plus one low-profile PCIe Gen4 x16 slot; the installed add-in card occupies one of these slots, so available expansion capacity depends on the current configuration. Networking includes 2x 10GBase-T onboard via a Broadcom BCM57416 controller and a dedicated IPMI management port, plus the installed ConnectX-5 dual-port adapter. Power is supplied by two 500W Platinum-rated units in a 1+1 redundant arrangement. Sold as CPU only — no memory or drives included. No RAID or HBA controller is installed; the front bays support SATA or PCIe Gen3 NVMe drives, and SAS drives require an add-in card. Ships with power cables and all 4 drive carriers; no rails included.
| Type | Server |
|---|---|
| Brand | Supermicro |
| Series | AS-1014S-WTRT |
| Model Number | AS-1014S-WTRT |
| Form Factor | 1U Rackmount |
| CPU |
1x AMD EPYC 7352 24-Core (48 Threads), 2nd Gen |
| RAM Slots | No RAM Installed (8x DDR4 DIMM, Up to 2TB, 3200 MT/s) |
| Expansion Slots | 2x PCIe Gen4 x16 (full-height, full-length) + 1x PCIe Gen4 x16 (low-profile) |
| Networking | 2x 10GbE RJ45 + 1x Dual-Port ConnectX-5 (MT27800) + 1x Dedicated 1G Management Port |
| Power Supply | 2x 500W Platinum-Rated (1+1) |
| RAID/HBA | N/A — no controller installed |
| Storage | 4x 3.5" Hot-Swap — SATA3 or PCIe Gen3 NVMe |
Warranty
|
Condition - Seller Refurbished : 6 Months Seller Warranty
|
|
| Satisfaction Guarantee: Return for refund within 30 days of package reception date. | |
| This item is covered by serverpartdeals.com Return Policy | |
| To initiate a return please fill out the Return Form | |
| For frequently asked questions about warranties and returns please visit our FAQs |
Disclaimer
Some references may appear on this website or product descriptions to trademarks belonging to others not affiliated with ServerPartDeals.com (SPD), including references which may not display the ® symbol. All third-party trademarks (including logos and icons) referenced by SPD remain the property of their respective owners. Unless specifically identified as such, SPD’s use of third-party trademarks does not indicate any relationship, sponsorship, or endorsement between SPD and the owners of these trademarks. Any references by SPD to third party trademarks is to identify the corresponding third-party goods and/or services and shall be considered nominative fair use under trademark law.Warning
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
This animation is a visual aid only and does not represent the actual testing methodology, sequence, or results for this drive.
We test every server before you do.
Every server Server Part Deals sells passes an internal 4-stage testing protocol before it ships. While many resellers stop at a basic power-on check, we validate installed hardware, firmware, system performance, thermals, and stability under sustained load. Each server is tested to confirm that it meets or exceeds its listed specifications.
Stage 1: Physical Inspection
- Chassis and structural inspection
- Port, connector, and backplane check
- Fan, heatsink, and airflow inspection
- Shipping-damage and component-security check
Stage 2: Hardware & Firmware Validation
- CPU, RAM, and storage verification
- BIOS and firmware validation
- RAID and controller detection
- Remote-management interface check
Stage 3: Performance Testing
- Processor and memory benchmarking
- Storage and network throughput testing
- Multi-component load simulation
- Power and thermal-performance validation
Stage 4: Stability & System Testing
- Extended burn-in testing
- Hardware-error and event-log review
- Fan, temperature, and power monitoring
- Final boot and configuration verification
