Western Digital Ultrastar Data60 Hybrid Storage Platform SE4U60 Gen3 | 4U60 60-Bay Data Center JBOD Enclosure | Up to 1.3PB
Western Digital Ultrastar Data60 Hybrid Storage Platform SE4U60 Gen3 | 4U60 60-Bay Data Center JBOD Enclosure | Up to 1.3PB
How We Test
Every unit is diagnostic-tested and verified healthy before shipment. Learn about our full testing process ↓

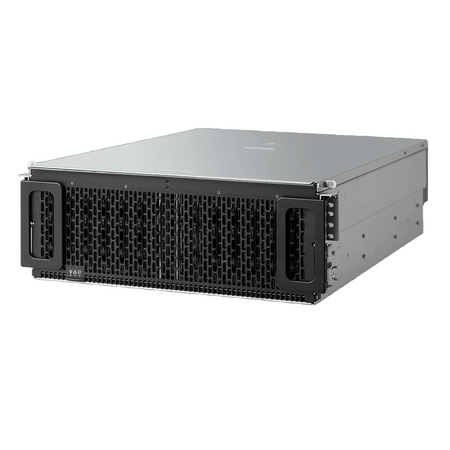

WD Ultrastar Data60 JBOD Enclosure
Highlights

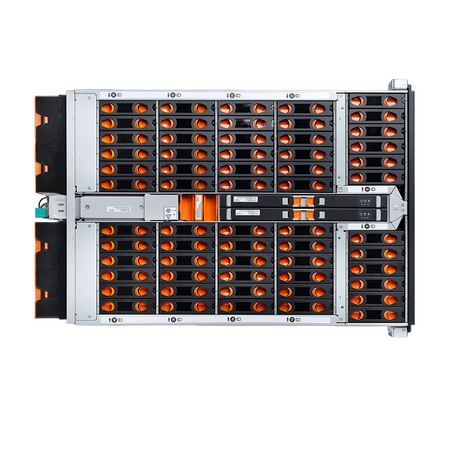

- Up to 60 Ultrastar HDDs (SAS or SATA)
- Up to 1.3PB raw capacity in 4U using 22TB HDDs
- Hybrid support for data acceleration tier with SSDs (SAS or SATA) in up to 24 of 60 drive slots
- Up to 4 units may be daisy-chained for a total raw capacity of over 4PB
- 4 rack units height, 712mm Depth
- Dual-port SAS for high availability or single-port SATA for low cost
- Up to 12 x 12Gb/s SAS-3 host connections (SATA HDD configurations include only one I/O module with 6x Mini-SAS HD connections)
- Rack-mounted top cover for quick and easy service
- Patented IsoVibe technology ensures maximum performance even in heavy workloads

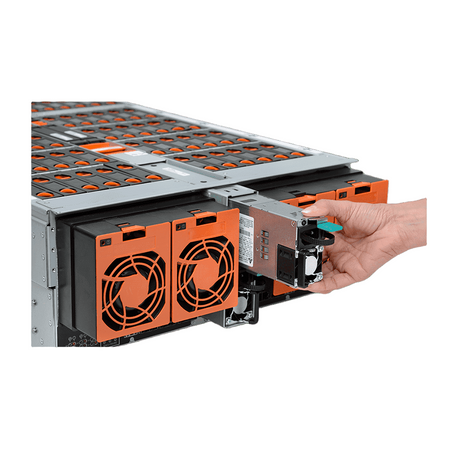

- Enterprise-grade redundant and hot-swappable PSUs, I/O modules, and fans
- 5-year Warranty
- When purchased with recertified hard drives, the drives inside of the JBOD will come with a 2 year warranty. The JBOD will have a 5 year warranty.
- JBOD ships with Rails, 2x mini SAS Cables, Trays(Bare JBOD) and Power Cable
Note: Many configurations available, contact us via email or call us for custom options.
Compatibility Matrix: Data60 compatible parts
Installation Guide: Data60 install guide
Product Brief: Ultrastar 4U JBOD overview
Tech Brief: IsoVibe and ArcticFlow overview
Manual: WD Ultrastar Data60 User Guide
Applications and Workloads
- SDS Environments
- Big Data
- Private Cloud
- Data Analytics
- Cloud Infrastructure
IsoVibe Vibration Isolation Technology

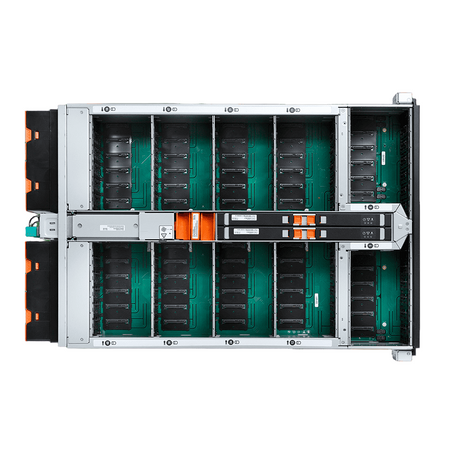

Precise cuts in the baseboard provide a suspension for the drives in the chassis, isolating them from transmitted vibration. The result is that consistent performance is maintained, even when all the drives are working hard.
ArcticFlow Thermal Zone Cooling Technology
By introducing cool air into the center of the chassis, drives operate at lower and more consistent temperatures than conventional systems. This results in lower fan speeds, reduced vibration, lower power consumption, quieter operation and ultimately higher reliability.
| Max. Drives |
60 x 3.5" drive bays |
| Drive Interface |
12Gb/s SAS |
| Available Drive Capacities |
HDD up to 22TB CMR |
| Host Interface |
Dual redundant I/O Modules (IOM)* *SATA HDD configurations include only one I/O module |
| Weight |
Without Drives: 27.3kg (60lbs) |
| LED Indicators | Front/Rear: Power, ID, Fault Drive: Activity, Fault |
| Physical Dimensions |
Height: 175mm (6.89") |
| Management |
SCSI Enclosure Services |
| Power |
Dual 1600W, 80+ Platinum |
| Cooling |
4 main enclosure fans, front-to-rear system cooling with zero-loss backflow prevention |
| Environmental |
Operating Temperature: 5 C to 35 C |
| Serviceability |
Cable-free hot-swappable IOM, power supply, fans and drives |
Disclaimer
Some references may appear on this website or product descriptions to trademarks belonging to others not affiliated with ServerPartDeals.com (SPD), including references which may not display the ® symbol. All third-party trademarks (including logos and icons) referenced by SPD remain the property of their respective owners. Unless specifically identified as such, SPD’s use of third-party trademarks does not indicate any relationship, sponsorship, or endorsement between SPD and the owners of these trademarks. Any references by SPD to third party trademarks is to identify the corresponding third-party goods and/or services and shall be considered nominative fair use under trademark law.This animation is a visual aid only and does not represent the actual testing methodology, sequence, or results for this drive.
We test every JBOD enclosure before you do.
Every JBOD enclosure Server Part Deals sells passes an internal 4-stage testing protocol before it ships. While many resellers stop at a basic power-on check, we validate every drive bay, backplane connection, SAS expander, power supply, and cooling component. Each enclosure is tested under sustained operation to confirm reliable connectivity, airflow, and system stability.
Stage 1: Physical Inspection
- Chassis and structural inspection
- Drive-bay and caddy alignment check
- SAS, power, and management-port inspection
- Fan, power-supply, and cable inspection
Stage 2: Hardware Validation
- Backplane and SAS expander detection
- Drive-bay connectivity verification
- Power-supply and fan-status review
- Firmware and enclosure-ID validation
Stage 3: Throughput Testing
- Multi-drive read/write cycles
- SAS link-speed validation
- Concurrent bay-load testing
Stage 4: Stability & Bay Testing
- Full drive-bay population scan
- Link-error and disconnect monitoring
- Temperature and airflow verification
- Final enclosure and inventory check
