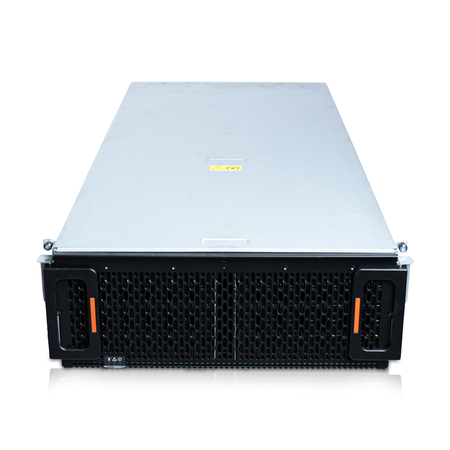

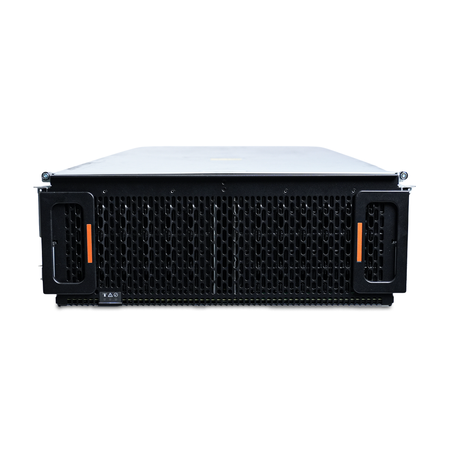

HGST / Western Digital Ultrastar Data JBOD Storage Enclosure
The HGST / Western Digital Ultrastar Data is a high-density enterprise SAS JBOD storage platform designed for large-scale storage capacity growth in data center and software-defined storage environments. Unlike iSCSI or controller-based storage arrays, the Ultrastar Data operates as a direct-attached SAS expansion shelf, relying on external servers or RAID/HBA controllers for storage management. Requires no proprietary base array — connects to any host system equipped with a standard SAS HBA or RAID controller via mini-SAS HD cabling, and supports daisy chaining for further expansion.
Highlights

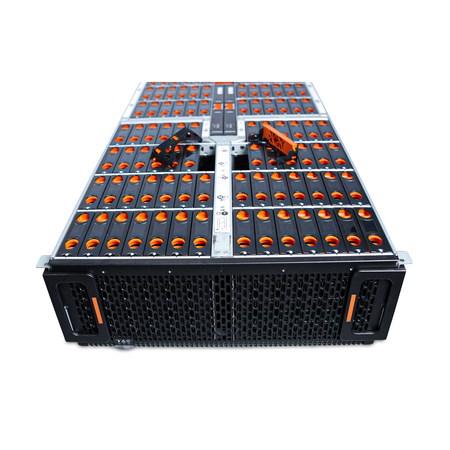

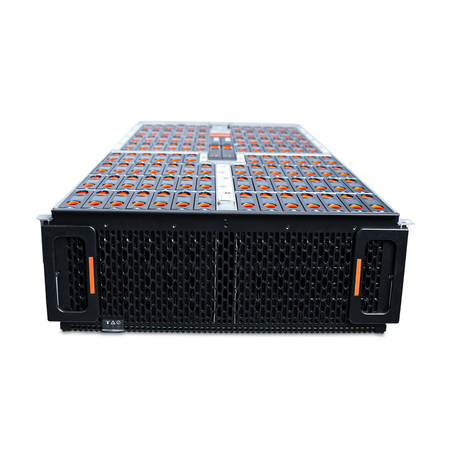

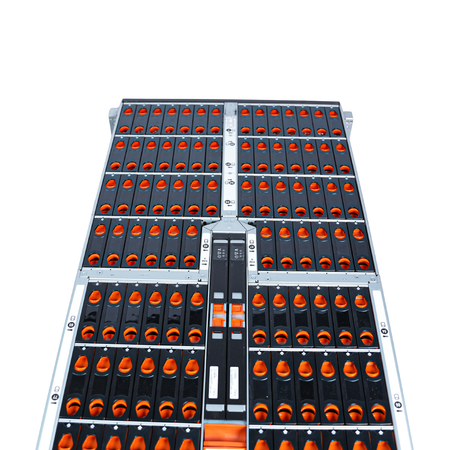

- Ultra-Dense 4U Chassis: Houses 102 hot-swappable 3.5" drive bays in a 4U rackmount form factor, delivering high-density enterprise storage expansion for data center environments.
- 12Gb/s SAS Expansion Architecture: Equipped with Dual SAS I/O Modules (IOMs) providing twelve mini-SAS HD ports (six per IOM) for high-speed external SAS connectivity via host HBA or RAID controller, with dual-path redundancy and failover support.
- Drive Compatibility Flexibility: Supports 12Gb/s SAS and 6Gb/s SATA hard drives across all 102 bays, with hybrid SSD acceleration-tier support in up to 24 of the drive slots, enabling scalable capacity configurations for performance, archival, or mixed workload storage deployments.
- Carrier-Grade Redundancy: Features dual redundant SAS I/O Modules (IOMs), redundant 1800W hot-swappable 80 PLUS Platinum power supplies, and hot-swappable fan modules to ensure continuous operation with no single point of failure.
- Advanced Enclosure Management: Supports SES (SCSI Enclosure Services) for real-time health monitoring, including temperature, power status, and drive activity visibility through the connected host system, plus dual Ethernet ports for out-of-band management.
- High-Line Power Required: Operates on 200–240VAC input only. This enclosure will not function on a standard 120V outlet — on low-line power the enclosure will power on but the drives will not spin up.
Applications
- Enterprise Data Centers: High-density SAS storage expansion for server environments
- Backup & Archival: Reliable long-term storage for backups and data retention
- Software-Defined Storage: Disaggregated and SDS deployments requiring dense shared HDD capacity
- Big Data & Analytics: Scalable petabyte-class storage for large datasets and processing workloads
- Media & Surveillance Storage: High-capacity storage for video production and security systems
Note: Many configurations available, contact us via email or call us for custom options
Datasheet: HGST Ultrastar DataSpecifications
| Brand |
HGST / Western Digital |
| Series |
Ultrastar Data Series |
| Model Number |
H4102-J |
| Form Factor |
4U Rackmount JBOD Expansion Enclosure |
| Drive Capacity |
102× hot-swappable 3.5" SAS / SATA / SSD drive bays |
| Drive Interface |
12Gb/s SAS / 6Gb/s SATA |
| Compatible Base Arrays |
Not required — connects to any host with a standard SAS HBA or RAID controller |
| Expander |
JBOD (Dual SAS I/O Modules, no onboard RAID controllers) |
| Host/Expansion Interface |
Dual SAS I/O Modules (IOMs), four x4 mini-SAS HD ports per IOM, via external SAS HBA or RAID controller |
| Cooling |

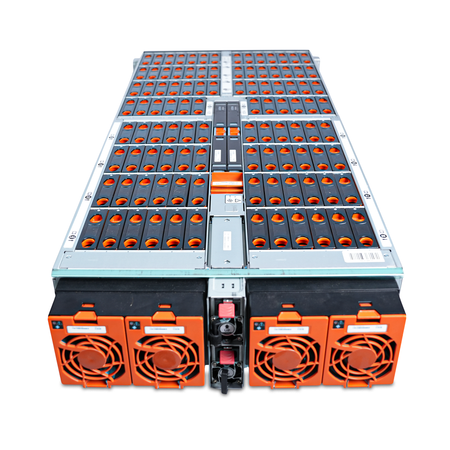

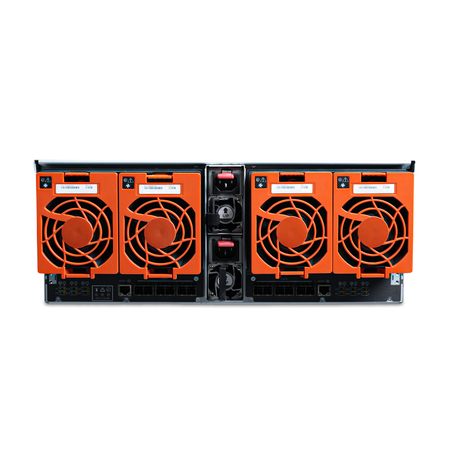

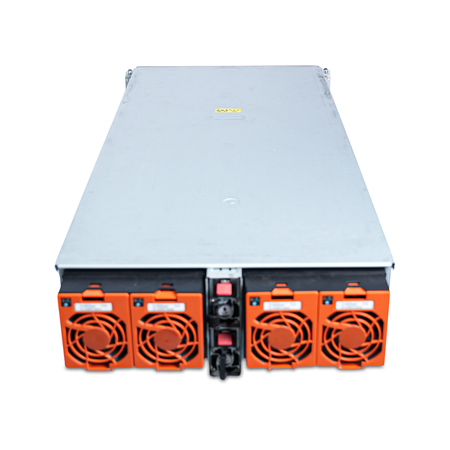

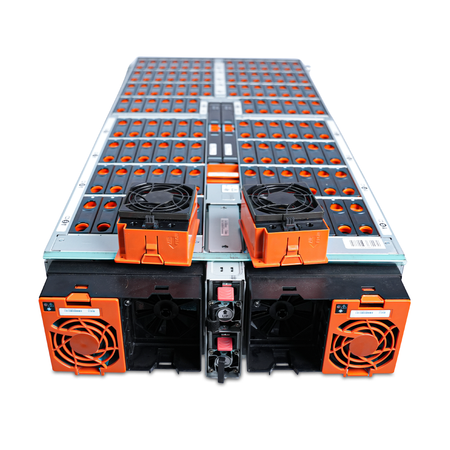

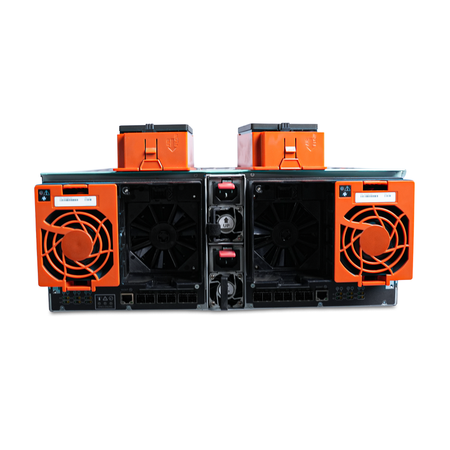

Redundant N+1 hot-swappable fan modules (four 80mm rear fans plus internal IOM fan, front-to-back airflow) |
| Power Supply |
Redundant dual 1800W hot-swappable power supplies, 80 PLUS Platinum |
| Universal A/C Input |
200–240V AC, 50/60Hz (enterprise high-line power) |
| Operating Environment |
Temperature: 41 – 95°F (5 – 35°C), derate 1°C per 300m above 900m |
| Non-operating Environment |
Temperature: −40°C to 70°C (−40°F to 158°F) |
| Expansion Height |
17.45 cm (6.87 in) |
| Expansion Width |
44.70 cm (17.60 in) |
| Expansion Depth |
104.42 cm (41.11 in) |
| Gross Weight |
32.34 kg (Without Drives) |
