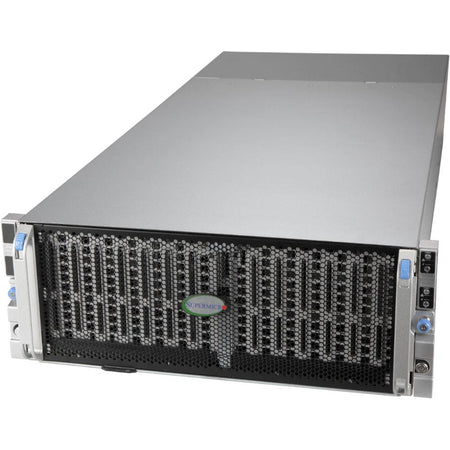

Supermicro SuperChassis 90-Bay SATA/SAS JBOD 4U Rackmount Top-Load Disk Shelf Storage Array 947HE1C-R2K05JBOD

Sold out
$21,780.00
Drive Type
Storage Capacity
Availability: Out of stock

Notify me when back in stock

Storage enclosure comes with 90x enterprise hard drives.

Note: JBOD lead times are 2 days before shipping.

Freight Shipping is included in the price.

Many configurations available, contact us via email or call us for custom options


Shopper Approved Logo

90 Bay Rackmount JBODs

Highlights
  • Single-Path Storage Enclosure
  • Single canister controllers with field serviceable tray
  • Support 90x 3.5in/2.5in Top-Loading SATA 6Gb/s / SAS3 12Gb/s Hot-Swappable HDDs
  • 6x SAS3.0 IO ports (MiniSAS HD/SFF-8644)
  • Dedicated IPMI RJ45 management port
  • Redfish OOB management protocol support
  • SCSI Enclosure Services SES-4 support
  • Hot-swappable Tool-less Modular Design for Easy Service and Easy Maintenance
  • Redundant Titanium 2000W power supply
  • Many configurations available, contact us via Live Chat or call us for more options

Applications and Workloads

  • Enterprise data warehousing
  • Data Analytics
  • Cloud Infrastructure
Max. Drives

90 x 3.5in drive bays

Drive Interface

12Gb/s SAS
6Gb/s SATA

Host Interface

6x SAS3.0 IO ports (MiniSAS HD/SFF-8644)

Weight

Net Weight: 130 lbs (58.97 kg)
Gross Weight: 225 lbs (102.06 kg)

LED Indicators Network Activity LEDs
HDD activity LED
Power LED
System Information LED
Unit Identification (UID) LED
Physical Dimensions

Height: 6.96 in (177 mm)
Width: 17.6 in (447 mm)
Depth: 43.3 in (1099 mm)

Management

Dedicated IPMI RJ45 management port
Redfish OOB management protocol support
SCSI Enclosure Services SES-4 support

Power

1U 2000W Redundant Titanium AC Power supply, 73.5x40x265mm, CRPS
200-240V AC input, 50-60Hz

Cooling

6 x 8cm hot-swap redundant PWM cooling fan(s)

Environmental

Operating Temperature: 5 C to 35 C
Non-op Temperature: -40 to 70 C
Operating Humidity: 8 to 90% relative humidity (non-condensing)

Serviceability

Hot-swappable Tool-less Modular Design for Easy Service and Easy Maintenance
