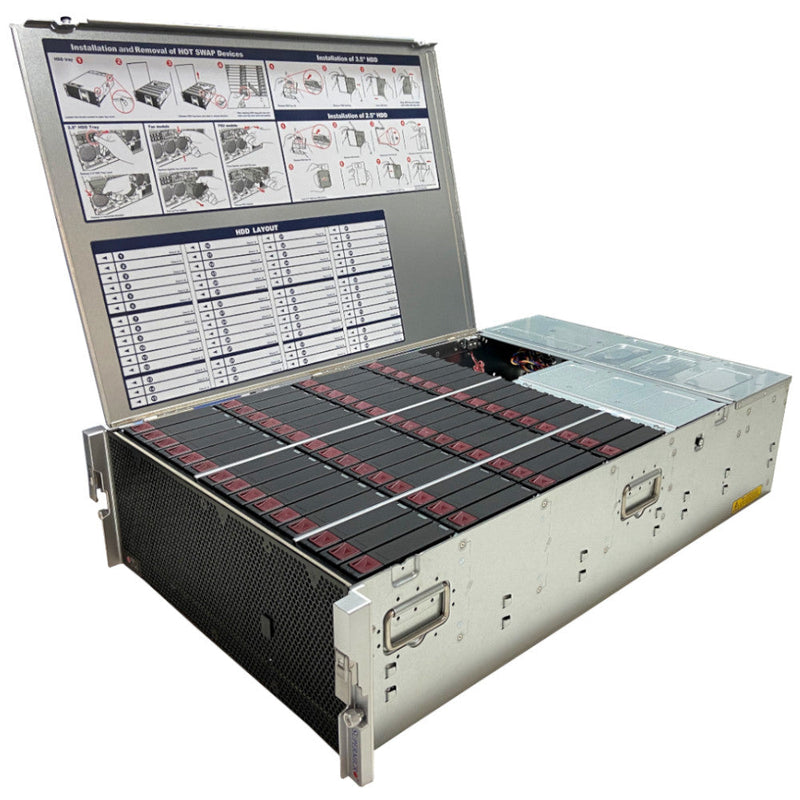

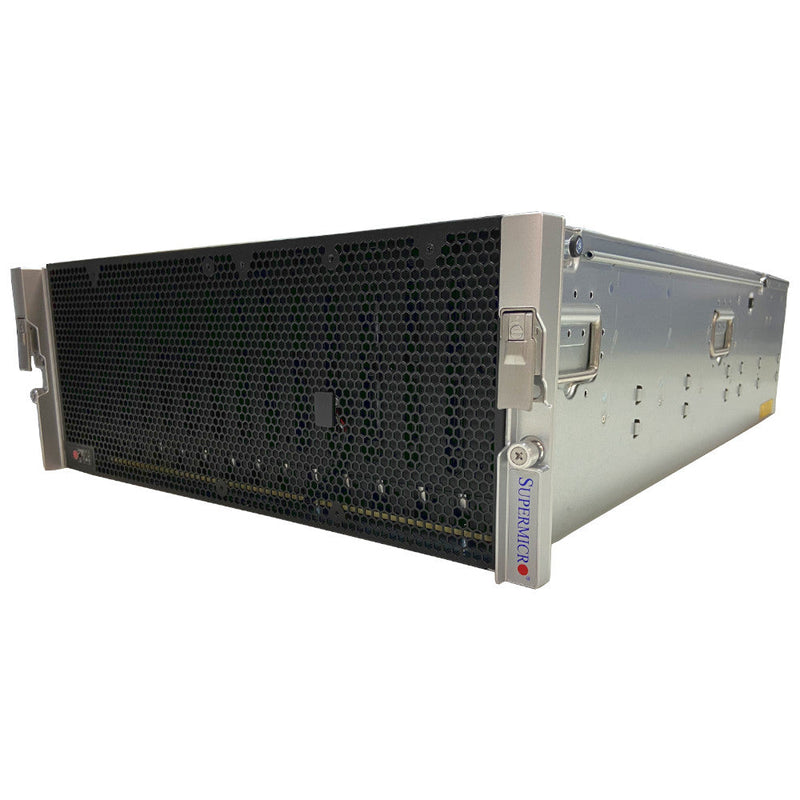

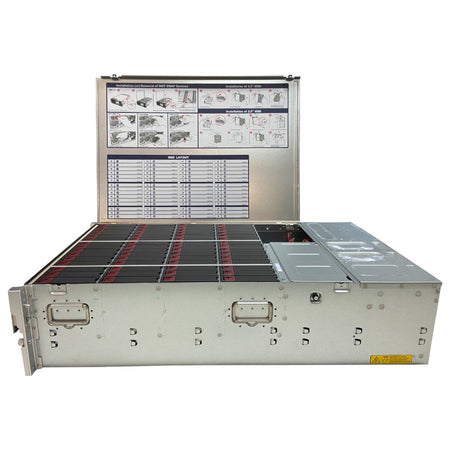

Supermicro SC946 60-Bay SATA/SAS JBOD 4U Top-Load Enterprise Disk Shelf Storage Enclosure - 946SE1C-R1K66JBOD

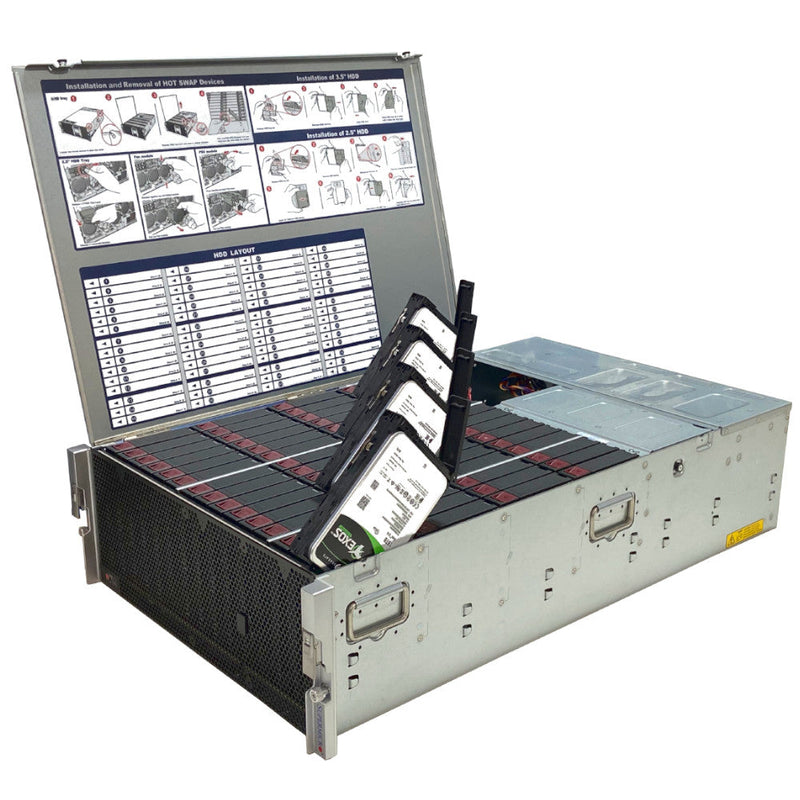

Storage enclosure comes with 60x enterprise hard drives.
Note: JBOD lead times are 2 days before shipping.
Freight Shipping is included in the price.
Many configurations available, select capacity option on the right (on mobile, select from above 'add to cart' button), contact us via email or call us for custom config. options.
Manual: 4U SC946 JBOD
Manufacturer Product Page: SuperChassis 946 SC946SE1C-R1K66JBOD
60 Bay Rackmount JBODs
Supermicro SC946 JBOD 4U 60-Bay SC946SE1C-R1K66 CSE-946SE1C-R1K66JBOD
Highlights
- Support 60 x 3.5" Top Loading SAS/SATA 12Gb/s Hot Swapping HDD/SSD Bays
- Tool-less HDD tray with HDD LED indicator
- Single Expander Backplane Boards support SAS3/2 HDDs with 12Gb/s throughput
- 4 x Mini-SAS HD ports for Internal / External Cascading Expander Combination for high performance, high availability or high redundancy requirements
- 1x IPMI port for Remote System Power on/off and system monitoring
- Support NTP for time synchronization & RTC battery backup

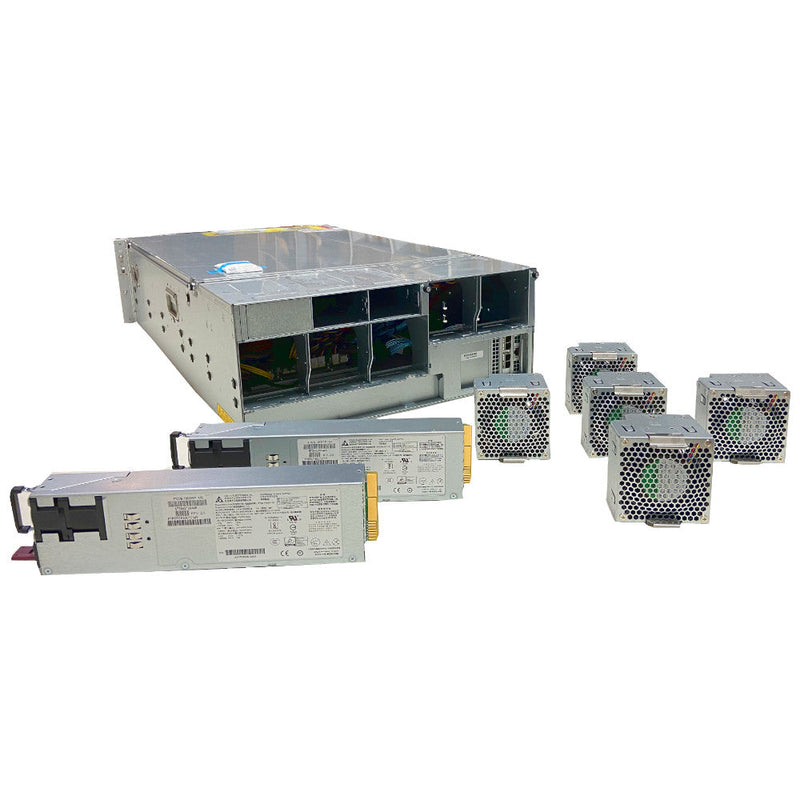

- 1600W (1+1) Redundant High-efficiency Platinum Level Power Supplies
- Optimized cooling w/ 5x 80x38mm rear hot-swap fans
- Ideal for Cloud backup, data Replication or High density Archive Storage Applications
Manual: 4U SC946 JBOD
Manufacturer Product Page: SuperChassis 946 SC946SE1C-R1K66JBOD
Note: Many configurations available, contact us via email or call us for custom config. options.
| Max. Drives |
60 x 3.5in drive bays |
| Drive Interface |
12Gb/s SAS |
| Host Interface |
4 x Mini-SAS HD ports for Internal / External Cascading Expander Combination for high performance, high availability or high redundancy requirements |
| Weight |
Net Weight: 100 lbs (45.36 kg) |
| LED Indicators | 1 Network Activity LEDs Power Status LED Power Fail LED System Information LED |
| Physical Dimensions |
Height: 7 in (178 mm) |
| Management |
1x IPMI port for Remote System Power on/off and system monitoring |
| Power |
1600W redundant power supply, Platinum level with PMBus & I2C
|
| Cooling |
5 x 80mm rear hot-swap exhaust PWM fan(s) |
| Environmental |
Operating Temperature: 5 C to 35 C |
| Serviceability |
Tool-less HDD trays with HDD LED indicator, Top Loading Drive Bays |
| Standard Parts List | |||
|---|---|---|---|
| Part Number | Qty | Description | |
| Bracket | MCP-120-84702-0N | 1 | CB3 mounting bracket for use on chassis with CB2 holes. Bracket to mount CB3 card on existing CB2 standoff on SC847/SC417/SC837/SC826/SC836/SC846 in JBOD configuration.,HF,RoHS/REACH,PBF |
| Bracket | MCP-120-84705-0N | 1 | LP PCI bracket for CBL-NTWK-0587 LAN extension cable,HF,RoHS/REACH,PBF |
| Bracket | MCP-320-94601-0N | 1 | |
| Bracket | MCP-320-94602-0N | 1 | |
| HD Backplane | BPN-SAS3-946SEL1 | 2 | 30-port 4U 946S Top-load SAS3 12Gbps single-expander midplane, support up to 30x 3.5-inch SAS3/SATA3 HDD/SSD |
| Control Board | CSE-PTJBOD-CB3 | 1 | JBOD chassis power control board with IPMI remote on/off feature |
| Cable(s) | CBL-0087 | 1 | CBL,FRONT CNTL,16 TO 16 PIN,Ribbon,50CM |
| Cable(s) | CBL-0160L | 2 | US POWER CORD 16AWG, PB FREE |
| Cable(s) | CBL-0303L | 1 | 4PIN POWER CABLE, ST TO RA, 40CM |
| Cable(s) | CBL-0459L | 2 | AC Power Cord Latch Clamp |
| Cable(s) | CBL-CDAT-0601 | 2 | 4 Pin to 4 Pin I2C cable, 50cm, 26AWG |
| Cable(s) | CBL-NTWK-0587 | 1 | INT RJ45M/RJ45F Adapter W/ PCB 50CM 24AWG for SC847D JBOD |
| Cable(s) | CBL-PWCD-0578-1 | 2 | PWCD,US,IEC60320 C14 TO C13,3FT,14AWG,RoHS |
| Cable(s) | CBL-PWCD-0578-IS | 2 | PWCD,US,IEC60320 C14 TO C13,910mm,14AWG,15A,250V,Black, RoHS |
| Cable(s) | CBL-PWEX-0861 | 1 | Powerlug to 5.7 Radsok, black 12AWG, 32cm for SC946S |
| Cable(s) | CBL-PWEX-0862 | 1 | Powerlug to 5.7 Radsok, black 12AWG, 53cm for SC946S |
| Cable(s) | CBL-PWEX-0863 | 1 | Powerlug to 5.7 Radsok, yel 12AWG, 32cm for SC946S |
| Cable(s) | CBL-PWEX-0864 | 1 | Powerlug to 5.7 Radsok, yel 12AWG, 53cm for SC946S |
| Cable(s) | CBL-SAST-0833 | 2 | SLIMLINE SAS, INT, 55MM, 32AWG |
| Cable(s) | CBL-SAST-0834 | 2 | SLIMLINE SAS to MiniSAS HD, INT, 50CM, 32AWG |
| Cable(s) | CBL-SAST-0835 | 2 | SLIMLINE SAS to MiniSAS HD, INT, 100CM, 32AWG |
| Part(s) | MCP-270-94602-0N | 1 | |
| Part(s) | MCP-290-00135-0V | 1 | 4U Auto-latch left handle |
| Part(s) | MCP-290-00136-0V | 1 | 4U Auto-latch right handle |
| Part(s) | MCP-290-94606-0N | 1 | |
| Part(s) | MCP-290-94607-0N | 1 | |
| Part(s) | MCP-210-94604-0N | 1 | SC946S/L front bezel bracket |
| Part(s) | MCP-220-94604-0N | 1 | SC946S Motherboard tray |
| Part(s) | MCP-230-94603-0N | 1 | |
| Part(s) | MCP-240-94602-0N | 3 | |
| Part(s) | MCP-120-00062-0N | 3 | Blank LP L-bracket (5x5 square hole) |
| Fan(s) | FAN-0184L4 | 5 | 80x80x38 mm, 14.4K RPM, Rear Exhaust Fan for SC946S Chassis (60-bay) |
| Front Panel | FPB-FP829H | 1 | Front Control Board for SC829H chassis |
| Drive Tray(s) | MCP-220-94601-0N | 60 | SC946ED 3.5" / 2.5" tool-less HDD tray |
| Power Distributor | PDB-PT946S-L824 | 1 | 4U PDB support over 2KW for SC946S and 45bay system.,RoHS |
| Power Supply & Accessory | PWS-1K66P-1R | 2 | 1U 1600W Redundant Platinum Power Supply 73.5mm width,RoHS/REACH,PBF |
| Mounting Rail(s) | MCP-290-00133-0N | 1 | Cable Management Arm, 2U height, 4 |
| Mounting Rail(s) | MCP-290-00137-0N | 1 | Rail set, Auto-latch, quick/quick, default 4U 17.2";W |
| Rear Window | MCP-240-94604-0N | 1 | SC946S rear window, NO I/O. w/ 3x LP slots |
| Optional Parts List | |||
|---|---|---|---|
| Part Number | Qty | Description | |
| Adaptor Bracket | MCP-290-00166-0N | 1 | Threaded rail adapter, auto latch, for round hole rack,RoHS |
| Cable | CBL-SAST-0677 | - | 3m 12G external Mini SAS HD to external mini SAS HD.28AWG,RoHS/REACH |
| CBL-SAST-0690-1 | - | MINI SAS HD,12G,EXT,2M,30AWG,RoHS |
