Seagate Exos CORVAULT 4U106 106-Bay 3.5" SAS 12Gb/s 4U Rackmount Dual IOMs Storage Expansion Enclosure JBOD Bare (Refurbished)
Seagate Exos CORVAULT 4U106 106-Bay 3.5" SAS 12Gb/s 4U Rackmount Dual IOMs Storage Expansion Enclosure JBOD Bare (Refurbished)
How We Test
Every unit is diagnostic-tested and verified healthy before shipment. Learn about our full testing process ↓
About this item

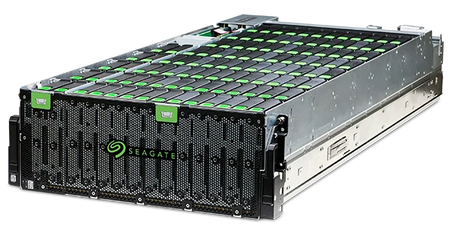

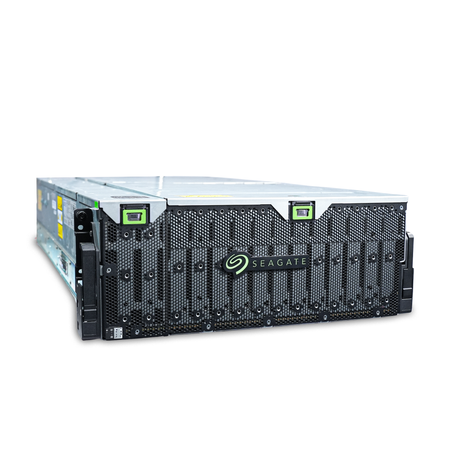

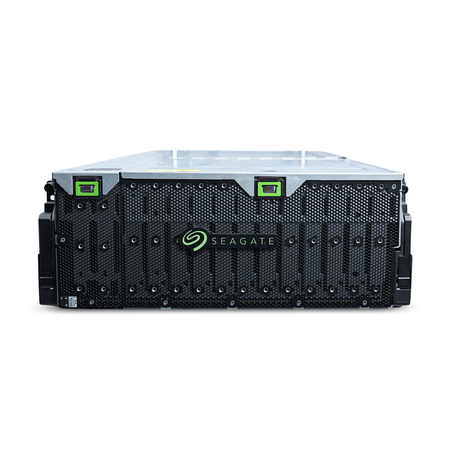

Seagate Exos CORVAULT 4U106 JBOD Storage Enclosure
The Seagate Exos CORVAULT 4U106 is an ultra-high-density enterprise SAS JBOD expansion enclosure designed for large-scale storage capacity growth in data center environments. Unlike iSCSI or controller-based storage arrays, this unit operates as a direct-attached SAS expansion shelf, relying on external servers or RAID/HBA controllers for storage management. With 106 hot-swappable 3.5" bays in a 4U chassis, it delivers among the highest drive densities available per rack unit. Requires a SAS HBA or RAID controller and 200-240V high-line power. Not compatible with desktop PCs.
Highlights

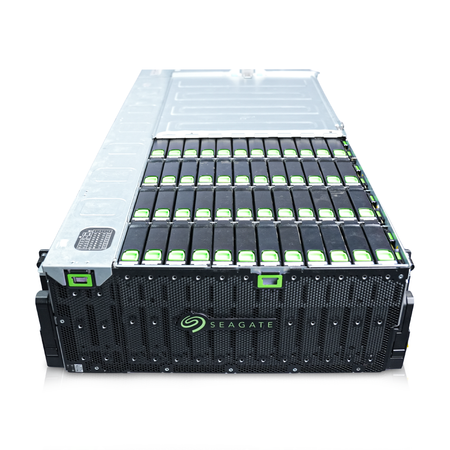

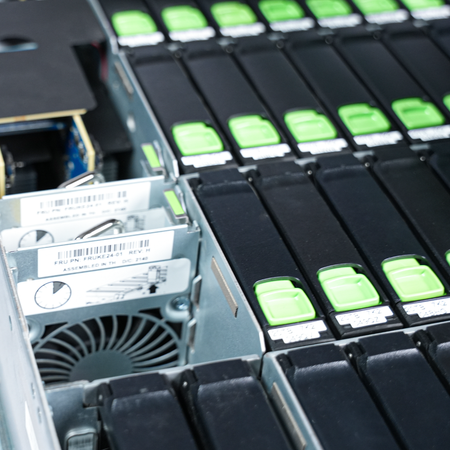

- Ultra-Dense 4U Chassis: Houses 106 hot-swappable 3.5" drive bays in a 4U rackmount form factor, delivering exceptional high-density enterprise storage expansion for data center environments.
- 12Gb/s SAS Expansion Architecture: Equipped with Dual SAS I/O Modules (IOMs), providing high-speed external SAS connectivity via host HBA or RAID controller with dual-path redundancy and failover support.

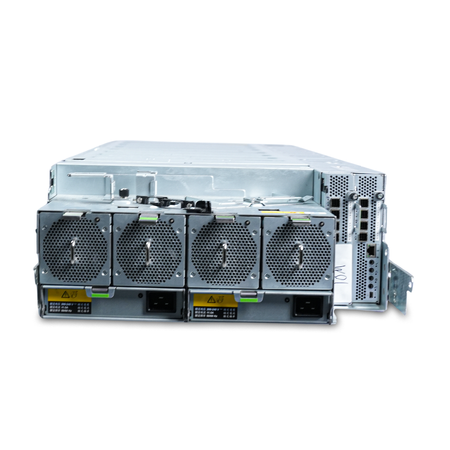

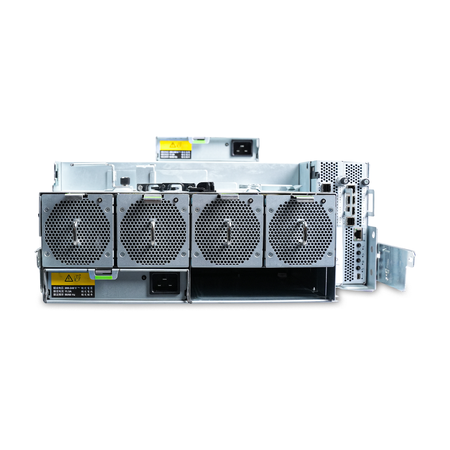

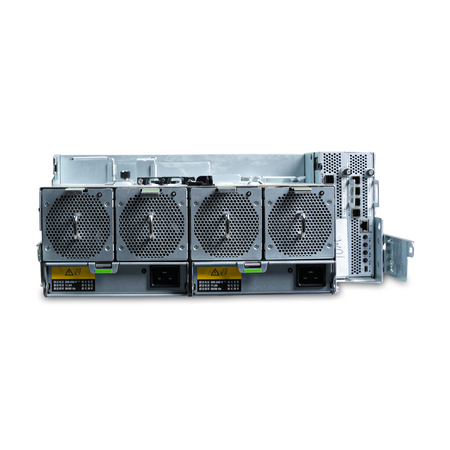

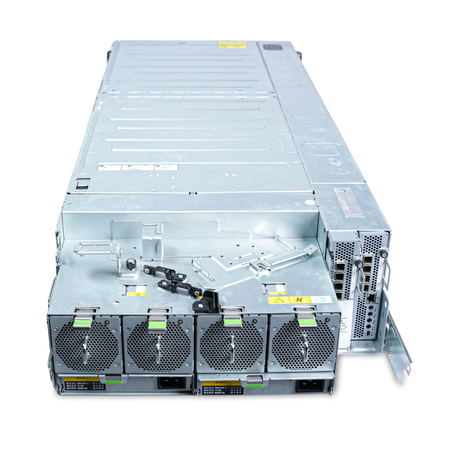

- Carrier-Grade Redundancy: Features dual SAS I/O Modules (IOMs), redundant 2000W hot-swappable Platinum-rated power supplies, and hot-swappable cooling modules and expander cards to ensure continuous operation with no single point of failure.
- Advanced Enclosure Management: Supports SES (SCSI Enclosure Services) for real-time health monitoring, including temperature, power status, and drive activity visibility through the connected host system.
- Enterprise Serviceability: Hard drives, I/O modules, cooling modules, power supplies, and expander cards are all hot-swappable, enabling maintenance without taking the enclosure offline.
Applications
- Enterprise Data Centers: Ultra-high-density SAS storage expansion for server environments
- Backup & Archival: Reliable long-term storage for backups and data retention
- Big Data & Analytics: Scalable storage for large datasets and processing workloads
- Media & Surveillance Storage: High-capacity storage for video production and security systems
- Cold Storage & Data Lakes: Cost-efficient bulk capacity for infrequently accessed data
Note: Many configurations available, contact us via email or call us for custom options
Datasheet: Seagate Exos CORVAULT 4U106Specifications
| Brand |
Seagate |
| Series |
Exos CORVAULT |
| Model Number |
4U106 |
| Form Factor |

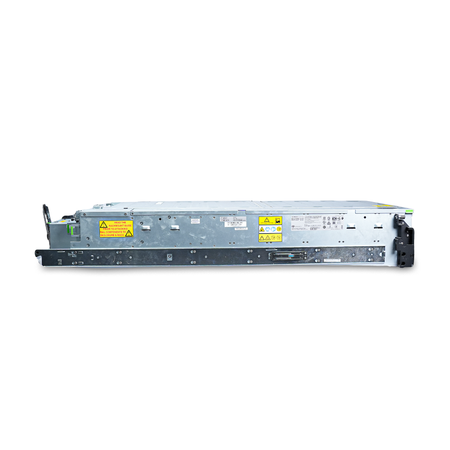

4U Rackmount JBOD Expansion Enclosure |
| Drive Capacity |

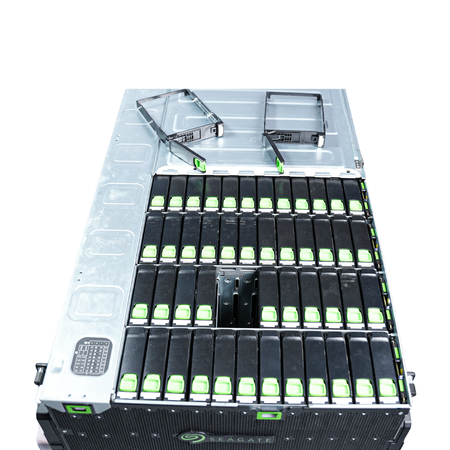

106x hot-swappable 3.5" SAS drive bays (No Drives Included) |
| Drive Interface |
12Gb/s SAS |
| Compatible Base Arrays |
Not applicable - connects to any standard SAS HBA or RAID controller |
| Expander |
JBOD (Dual SAS I/O Modules, no onboard RAID controllers) |
| Host/Expansion Interface |

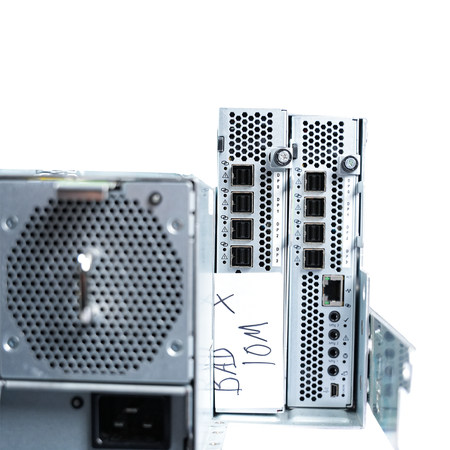

Dual SAS I/O Modules (IOMs), four mini-SAS HD ports each (8 total), via external SAS HBA or RAID controller |
| Cooling |

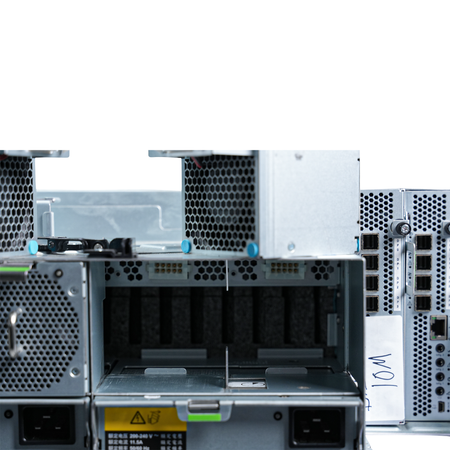

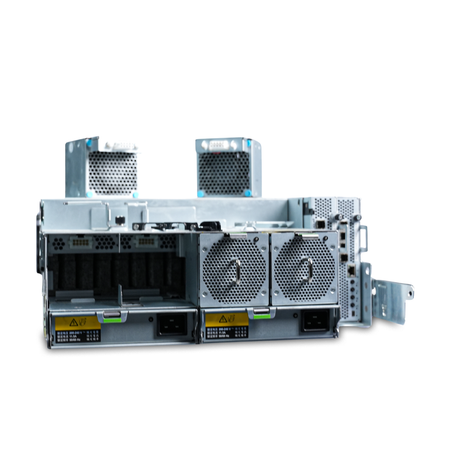

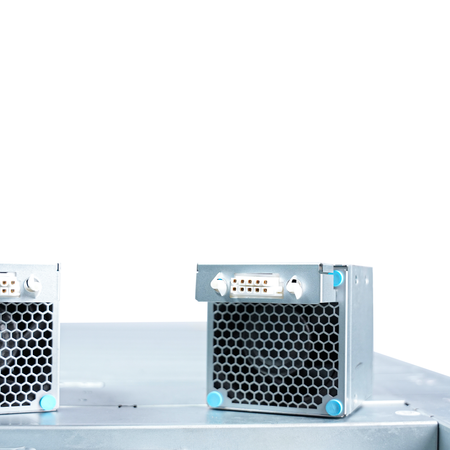

Redundant hot-swappable cooling modules |
| Power Supply |

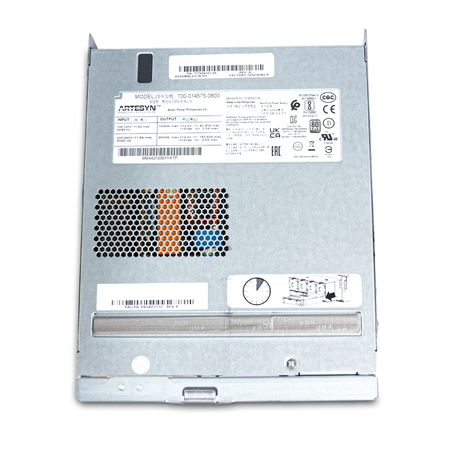

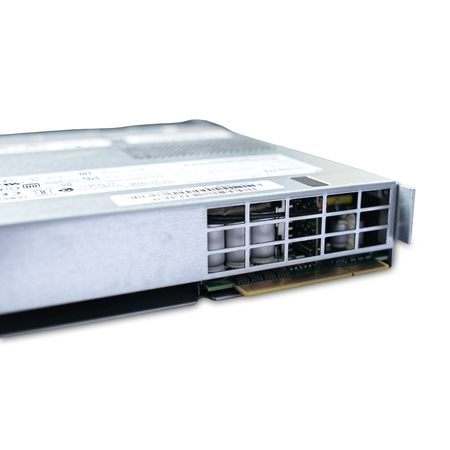

Redundant dual 2000W hot-swappable power supplies (Platinum-rated) |
| Universal A/C Input |

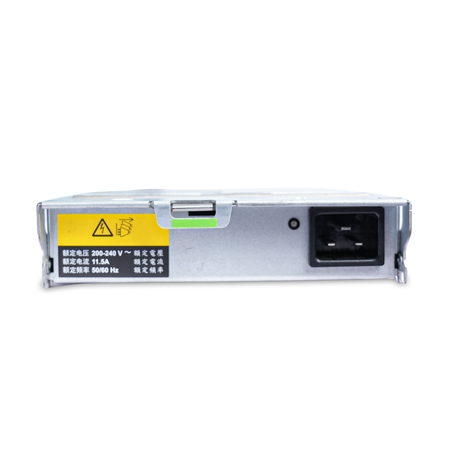

200-240V AC, 50/60Hz (enterprise high-line power) |
| Operating Environment |
Temperature: 41 - 95°F (5 - 35°C) |
| Non-operating Environment |
Temperature: -40°C to 70°C (-40°F to 158°F) |
| Expansion Height |
17.64 cm (6.94 in) |
| Expansion Width |
44.10 cm (17.36 in) |
| Expansion Depth |
113.90 cm (44.84 in) |
| Gross Weight |
Enclosure only, no drives -- weigh at packing |
