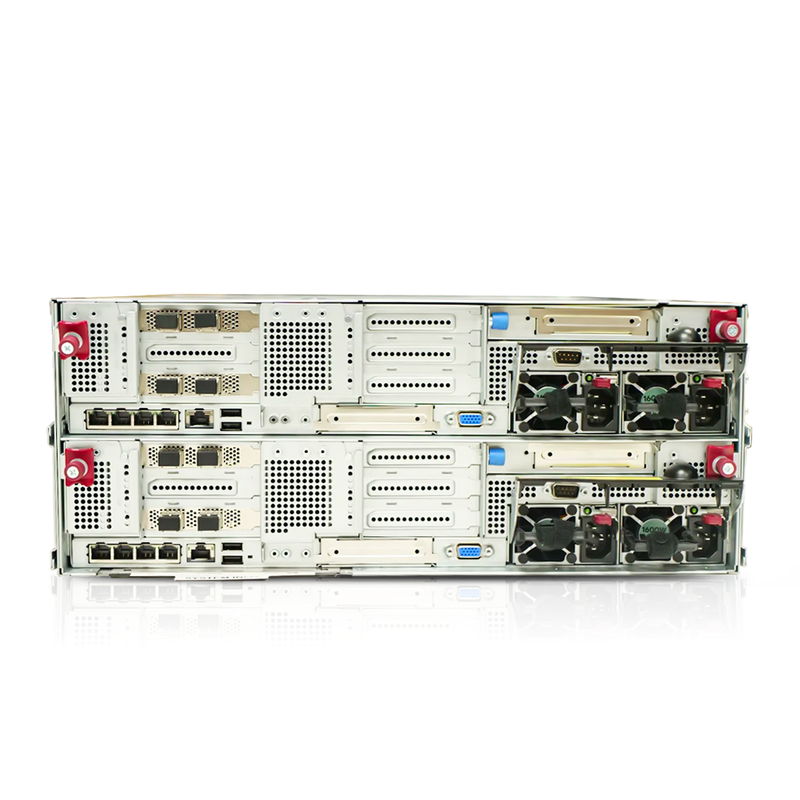

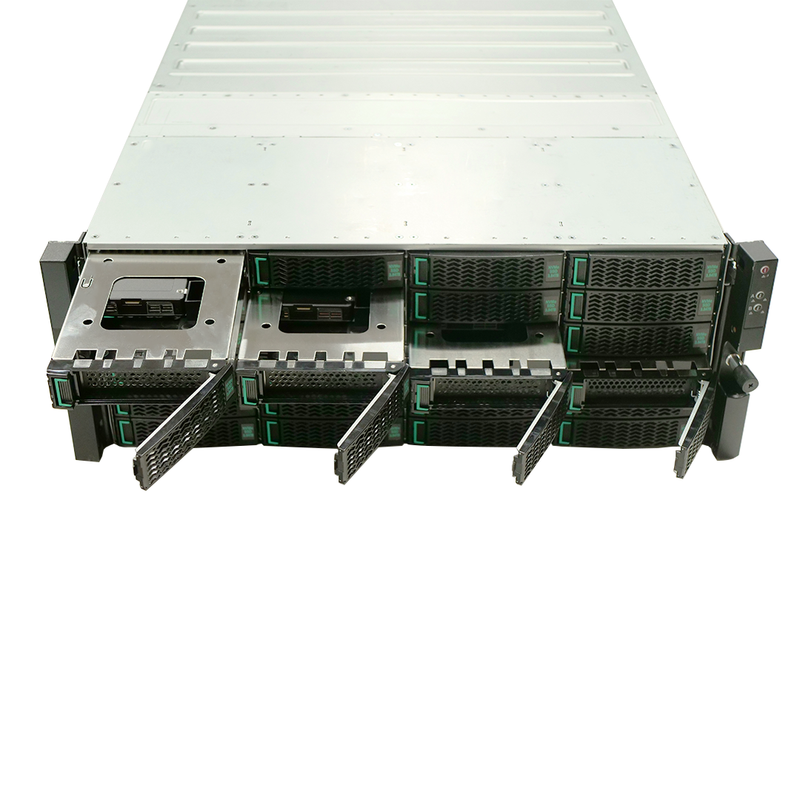

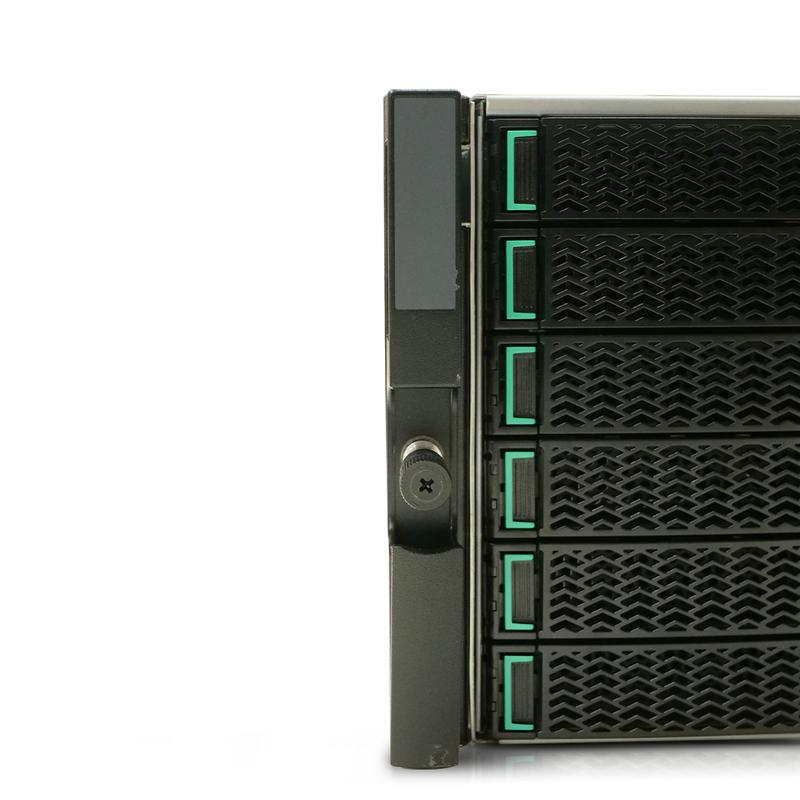

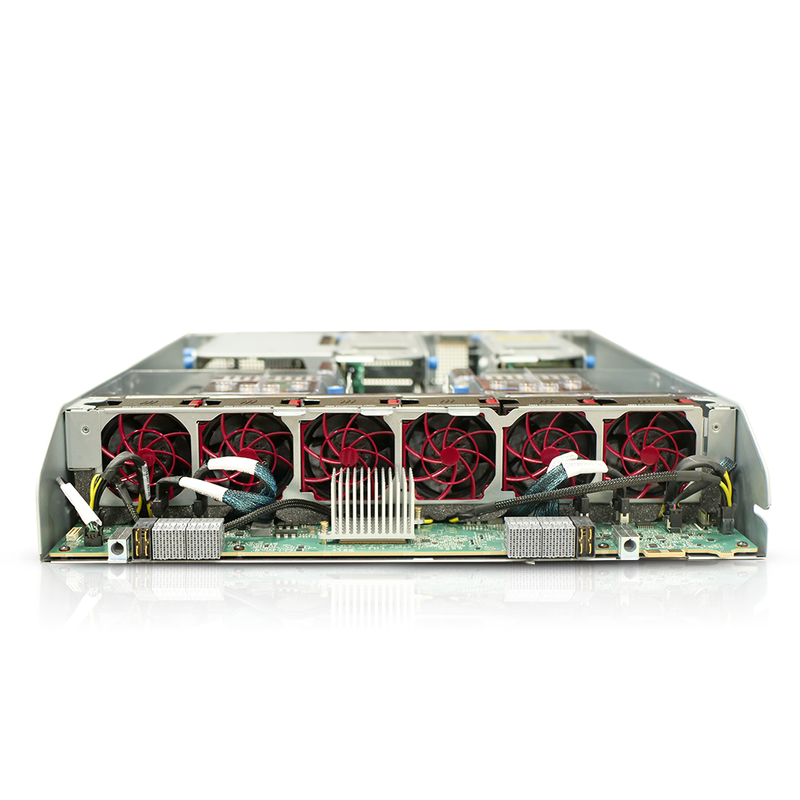

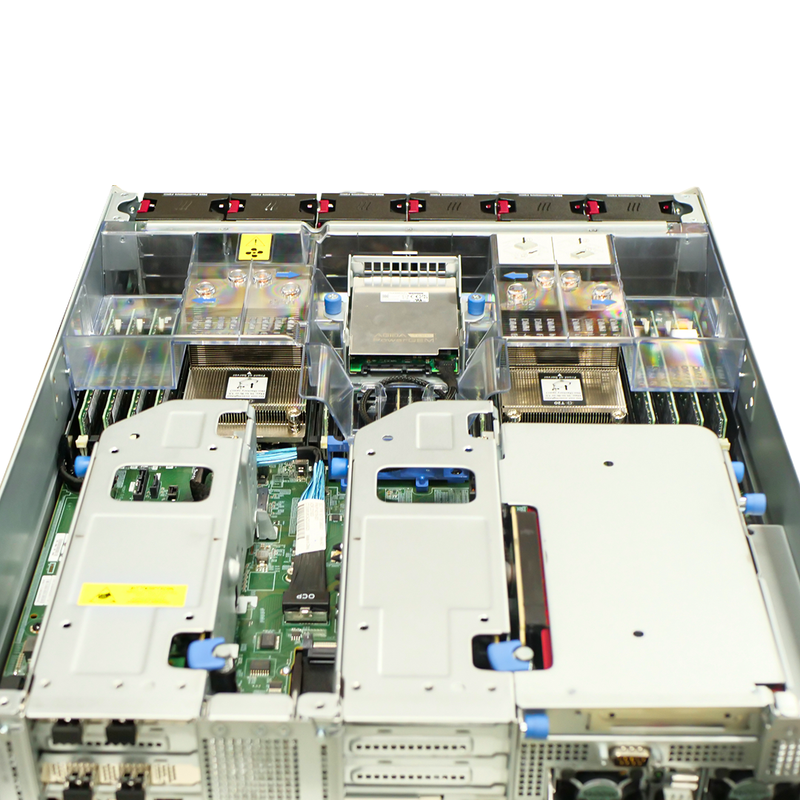

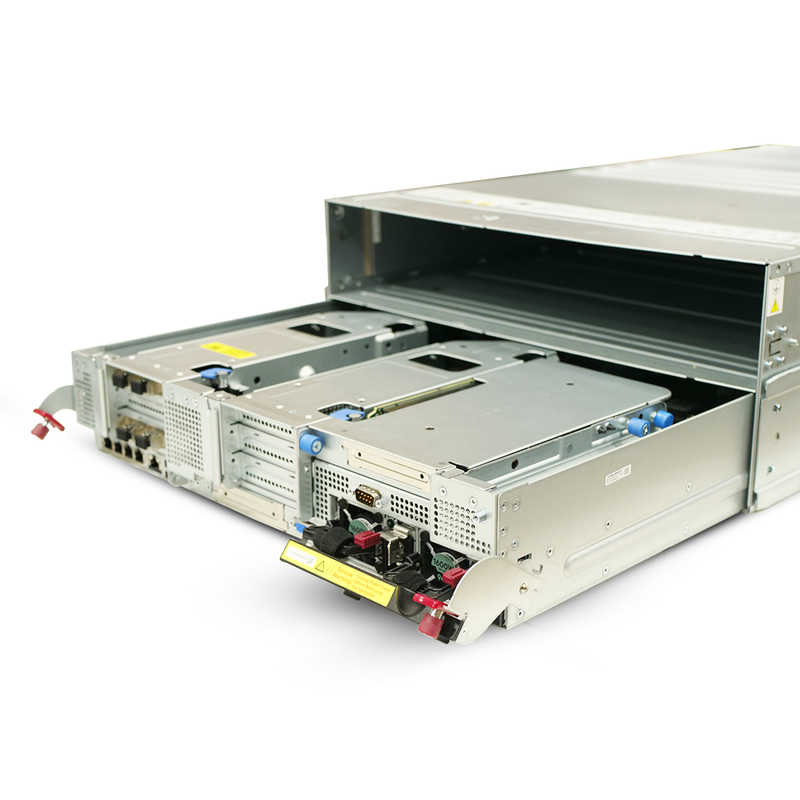

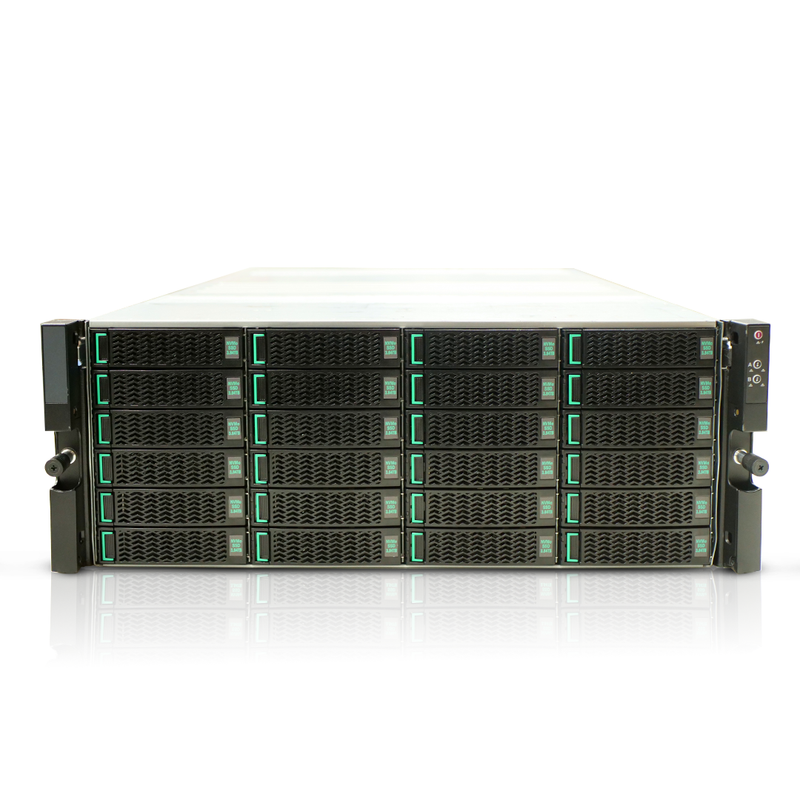

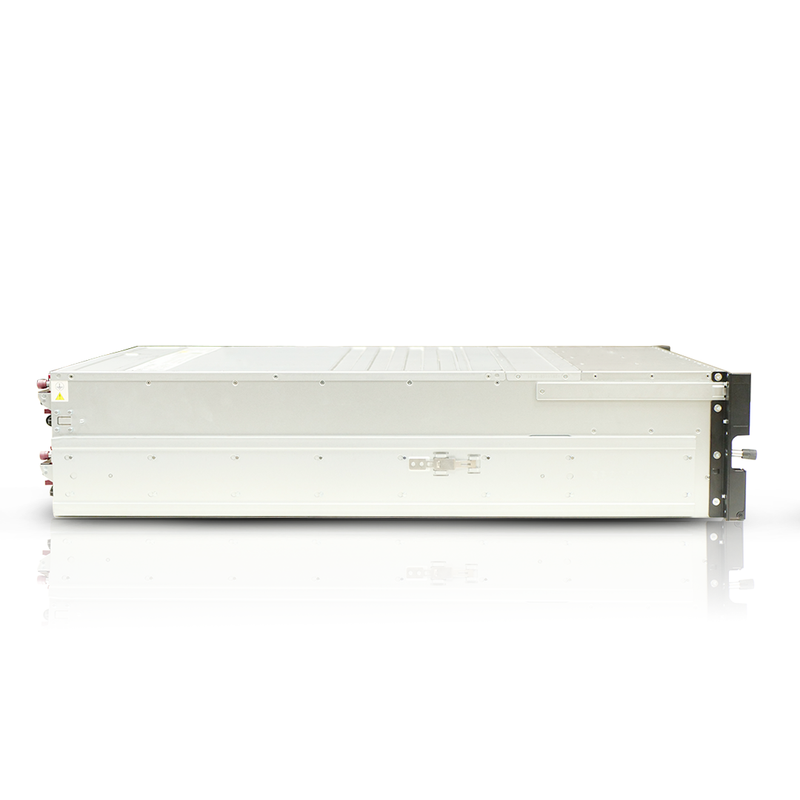

HPE Alletra 6070 All Flash Dual-Controller Base Array 4U 24-Bay With installed Gen 4 NVMe SSDs
By HPE
About this item

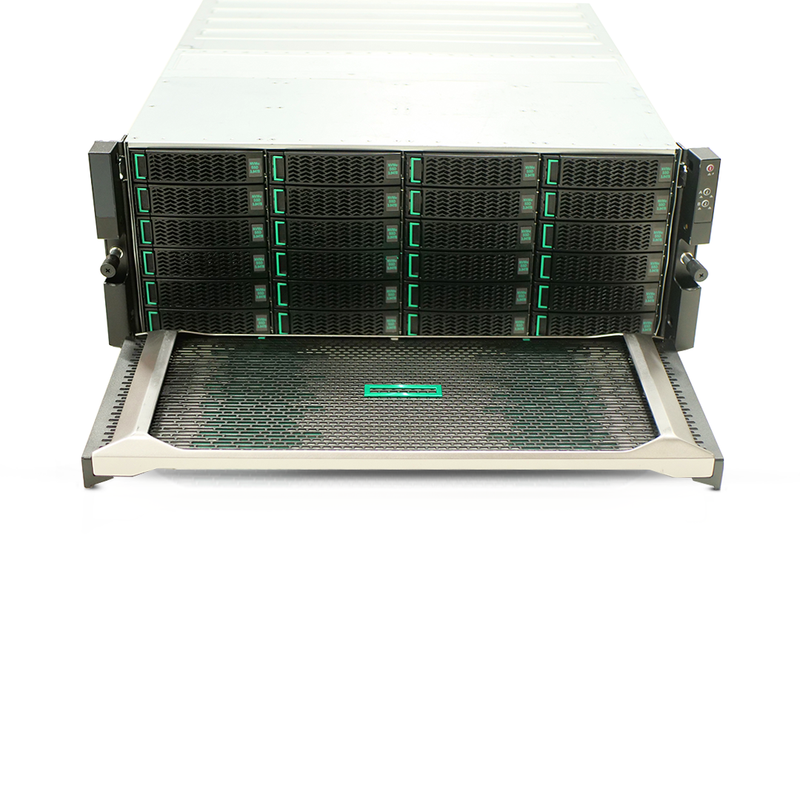

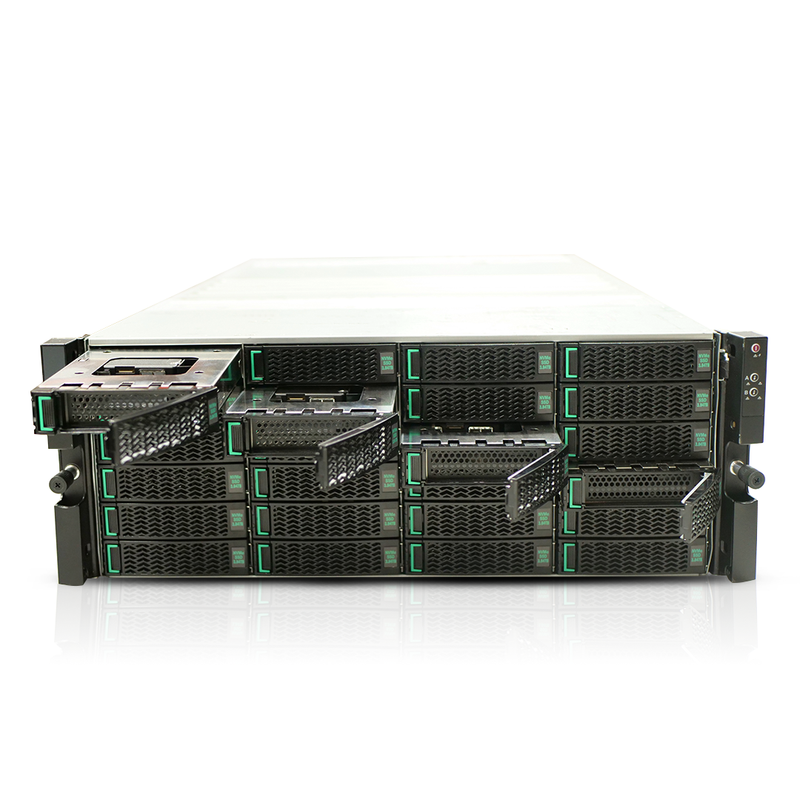

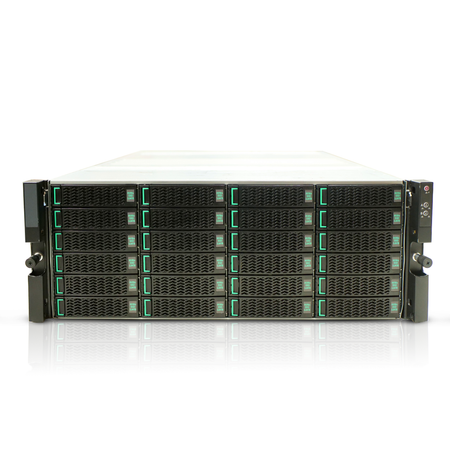

24 Bay Rackmount Storage Base Array

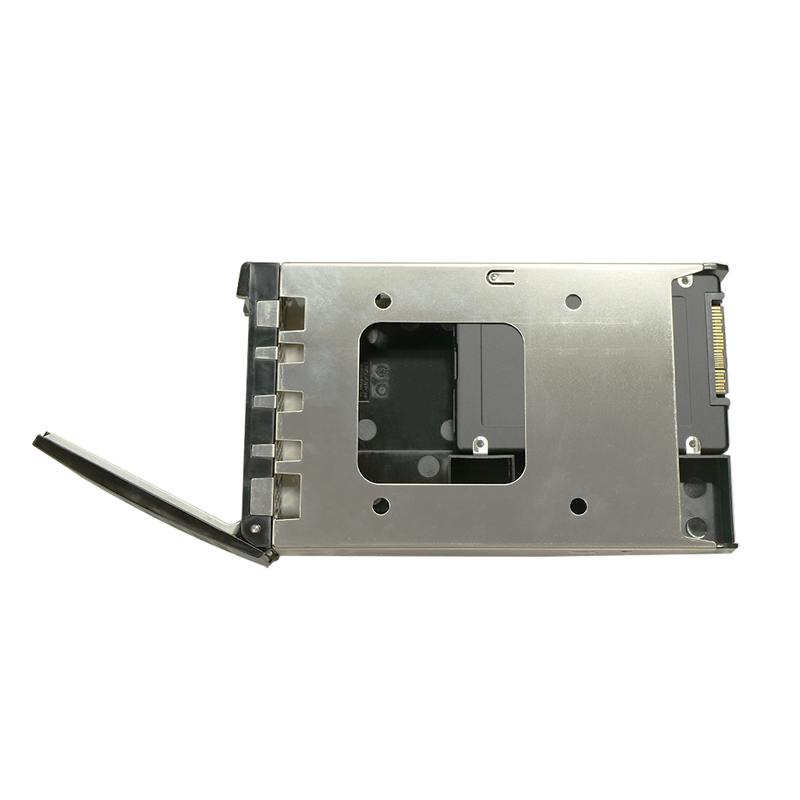

HPE Alletra 6070 All Flash Dual-Controller Base Array | 24x Samsung PM1733a 3.84TB PCIe Gen 4.0 x4 U.2 NVMe 2.5" SSD
HPE Alletra powers your data from edge-to-core with the cloud experience for all your apps. For business-critical workloads, HPE Alletra Storage 6070 delivers fast, consistent performance and industry leading data efficiency. It enables IT to shift from owning and maintaining data infrastructure to simply accessing and utilizing it on-demand, as-a-service. Eliminate performance and efficiency trade-offs with no knobs or configurations to adjust and always-on data services. Get resilient storage with intelligence and a no single point of failure platform that together deliver 99.9999% availability guaranteed. Deliver on recovery SLAs with fast, integrated app aware backup and recovery, on premises and in the cloud.
Inclusions

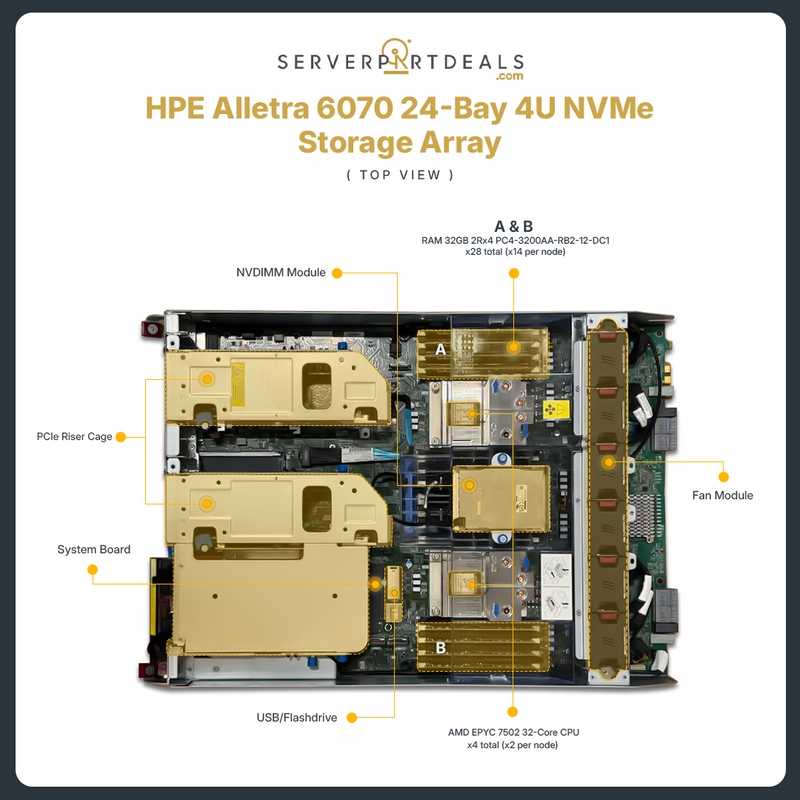

RAM: 32GB 2Rx4 PC4-3200AA-RB2-12-DC1 x28 total (x14 per node)

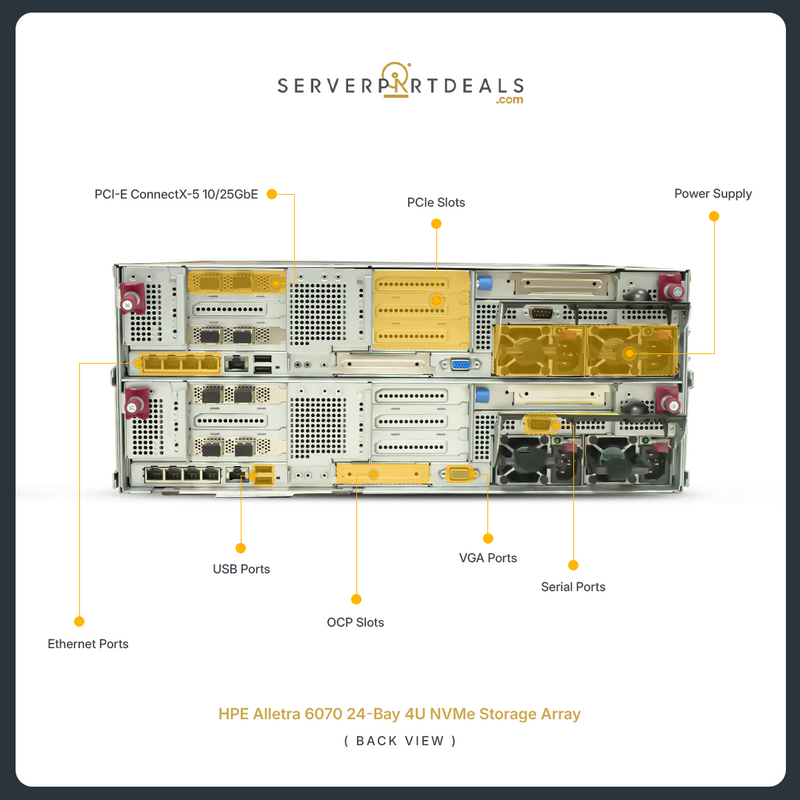

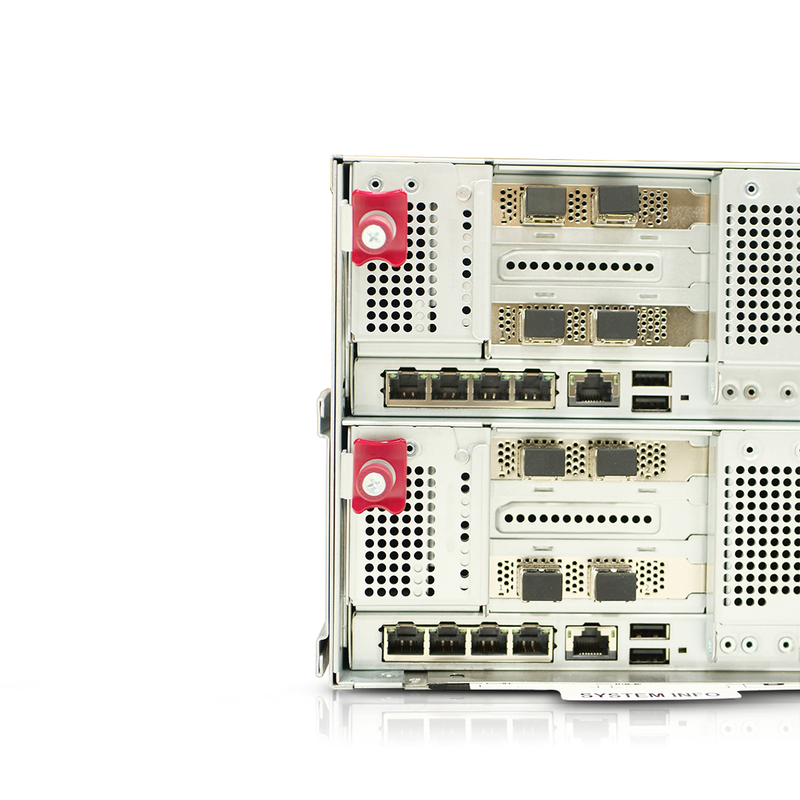

NIC: PCI-E ConnectX-5 10/25GbE x4 (per node)
CPU: AMD EPYC 7502 32-Core CPU x4 total (x2 per node)

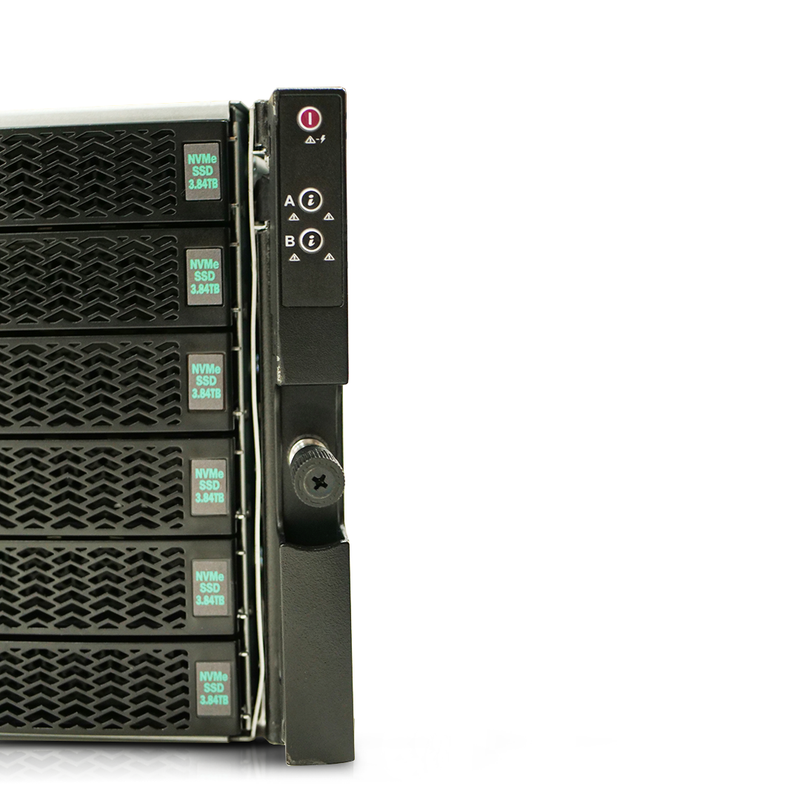

DISKS: PM1733a 2.5" 3.84TB SSD x24 (totaling 92.16TB)
Highlights
- Eliminate complexity by unifying infrastructure management silos under a cloud managed single pane of glass - accessible from anywhere and from any device
- Developed from the foundation of HPE Nimble Storage architecture, proven to deliver speed, efficiency, and resiliency with cloud agility
- Predict and prevent disruptions across storage, services, and virtual machines, resulting in savings of over 1.5 million hours of lost productivity due to downtime.
- Setup in minutes because systems are automatically discovered, on-boarded, and configured.
- Consume data infrastructure as a service via HPE GreenLake, eliminating up front capital costs with a pay-per-use model.
- 99.9999% (6-nines) guaranteed availability.
- Triple+ Parity RAID tolerates 3 simultaneous drive failures plus additional protection through intra-drive parity.
- Seller Refurbished - 90 Days Seller Warranty on Base Array

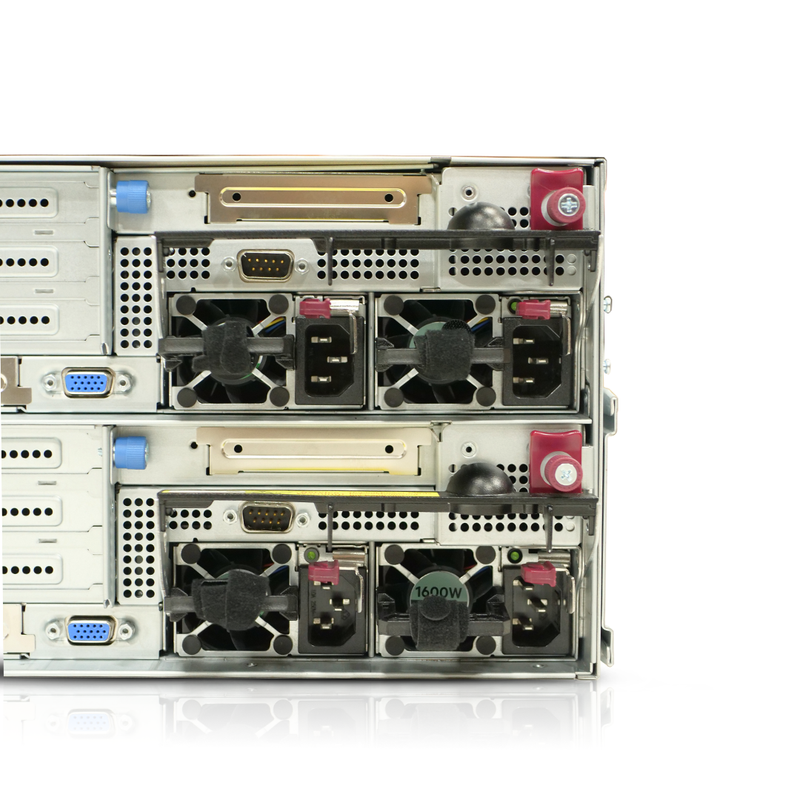

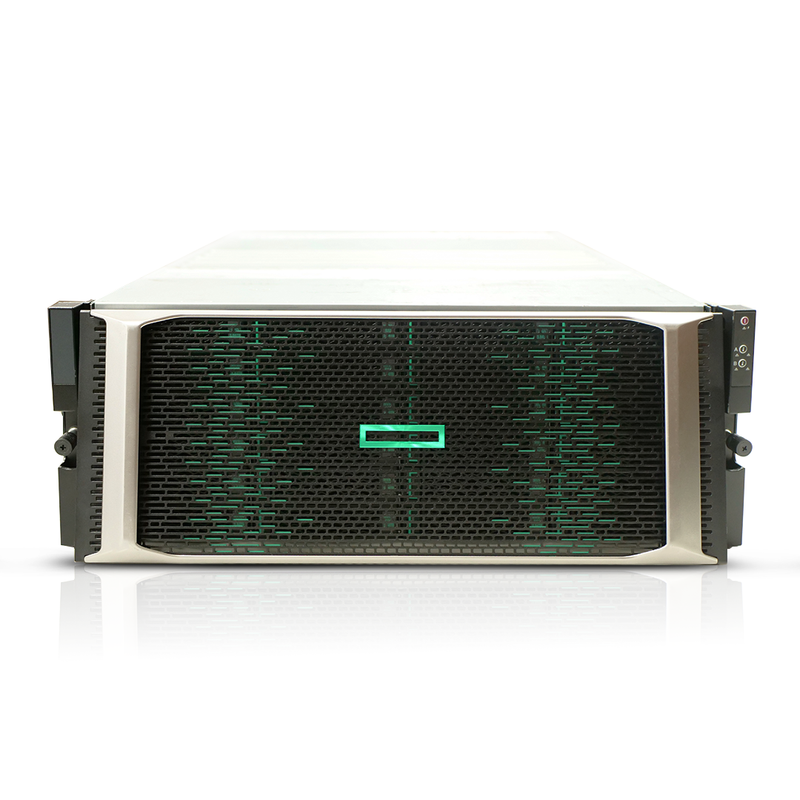

- Storage Base Array ships with rails and power cable. Face cover can't clip on due to a bent ear.
Note: Many configurations available, contact us via email or call us for custom options.
Datasheet: HPE Alletra 6070
Specifications
| Drive Model Included |
Samsung PM1733a 3.84TB 2.5" SSD |
| Drive Interface |
PCIe Gen 4.0 x4 U.2 NVMe 8GB/s |
| Drive Quantity |
24 |

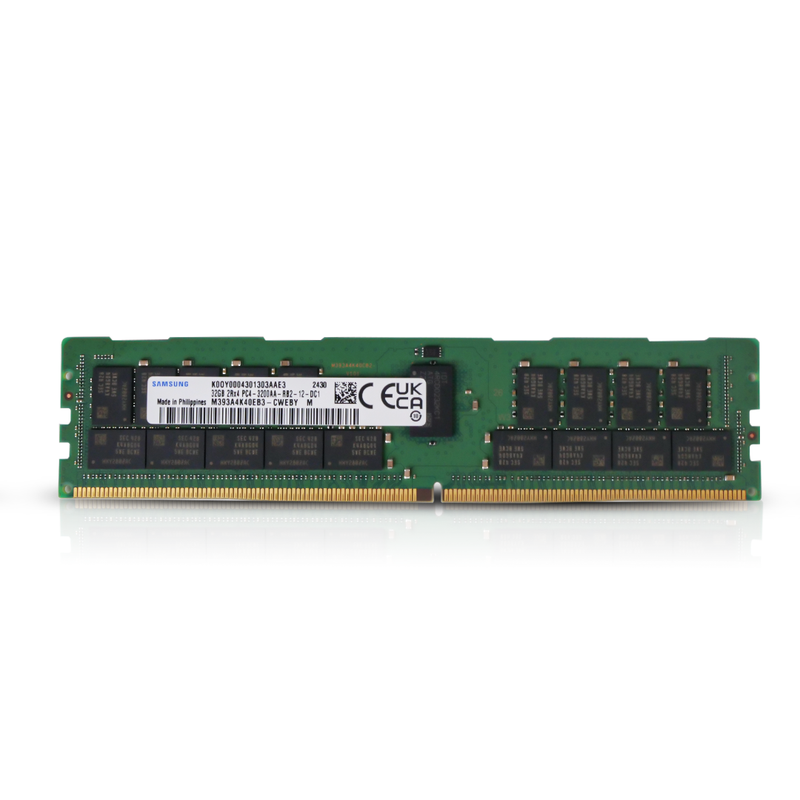

| RAM Model |
Samsung M393A4K40EB3-CWEBY |
| RAM Details |
32GB 2Rx4, PC4-3200AA, 288-pin Registered DIMM (RDIMM) |
| RAM Quantity | 28 total (x14 per node) |
| CPU Model | AMD EPYC Processor |
| CPU Details | 2.5 GHz Base Clock, 180W TDP |
| CPU Quantity |
4 total (two per node) |
| NIC Model |
PCI-E ConnectX-5 10/25GbE |
| NIC Quantity |
4 |
Storage Base Array Specifications

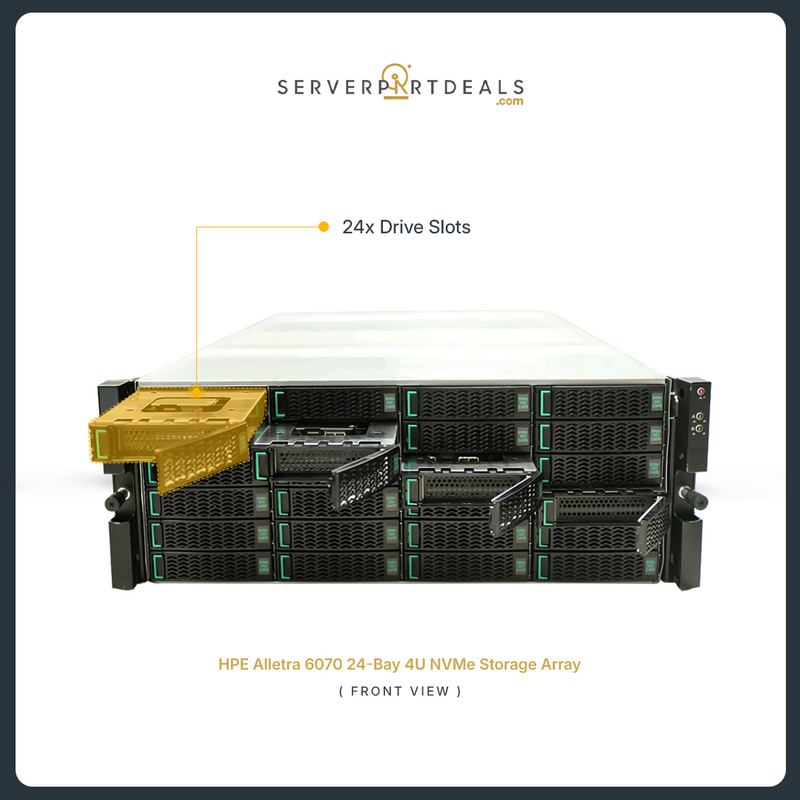

| Max. Drives |
24 x 2.5" drive bays |
| Warranty |
90 Days Seller Warranty on Storage Array |
| Drive Capacities |
92.16TB (24x 3.84TB SSD) |
| RAID Level Support |
Triple+ Parity |
| Storage Controller |
Redundant storage controllers |
| Availability Features | Triple+ Parity RAID for data protection (triple drive and intra-drive parity), 99.9999% guaranteed availability, redundant hardware/software design, no single points of failure. |
| Compatible Operating Systems | Microsoft Windows Server VMware ESXi SUSE Linux Enterprise Server (SLES) Red Hat Enterprise Linux (RHEL) Ubuntu Server Edition LTS Oracle Linux Oracle Solaris Citrix XenServer IBM AIX, HP-UX |
| Weight | 54.5kg / 120 lb (without drives) |
| Physical Dimensions |
Height: 175.8mm / 6.9 in Width: 439mm / 17.3 in Depth: 800mm / 31.5 in |
| Environmental |
Operating Temperature: 10 - 35° C (50 - 95° F) Reduce rating by 1° F for each 1000 ft altitude (1.8° C/1,000 m) Humidity: 8 - 90%, non-condensing Operating Vibration: 0.25 G, Sine 5 - 200 Hz (approx. 15 min/axis);0.4 GRMS, Random 5 - 200 Hz (approx. 60 min/axis) Operating Shock: 20 G, 2.5ms, half-sine, one shock on each side |
