Cisco UCS C3160 560TB (56x 10TB SAS HDD) 32-Core 512GB-RAM 4U Data Center Storage Server (UCSC-C3X60-56HD10)
Cisco UCS C3160 560TB (56x 10TB SAS HDD) 32-Core 512GB-RAM 4U Data Center Storage Server (UCSC-C3X60-56HD10)
How We Test
Every unit is diagnostic-tested and verified healthy before shipment. Learn about our full testing process ↓

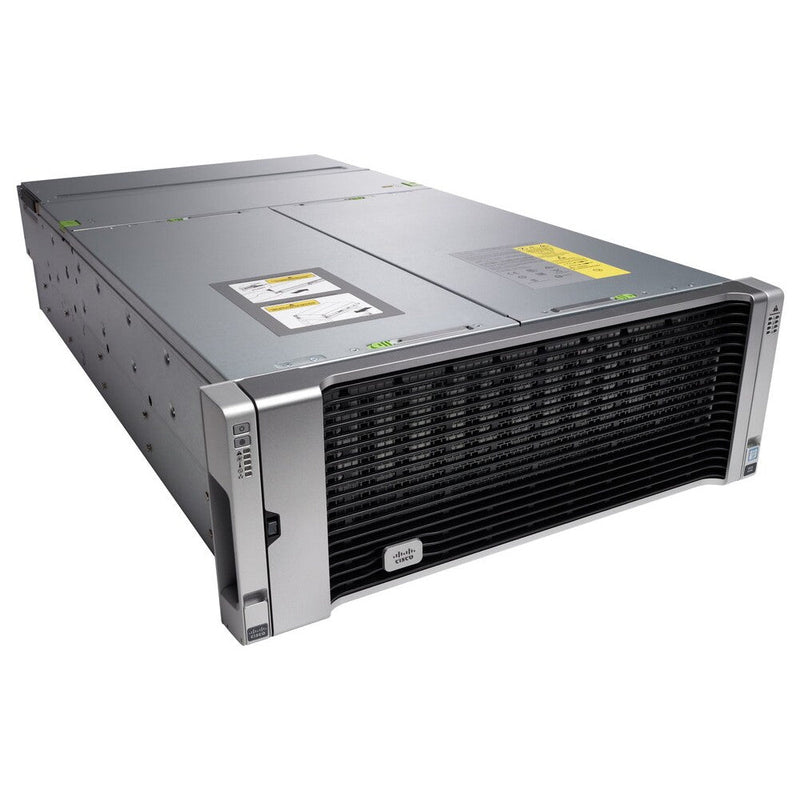

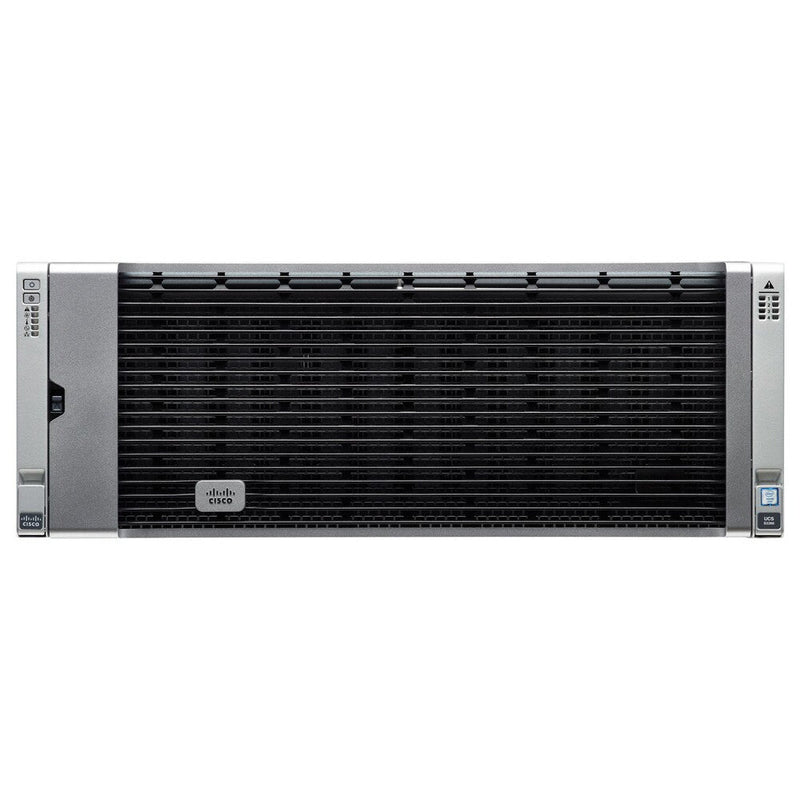

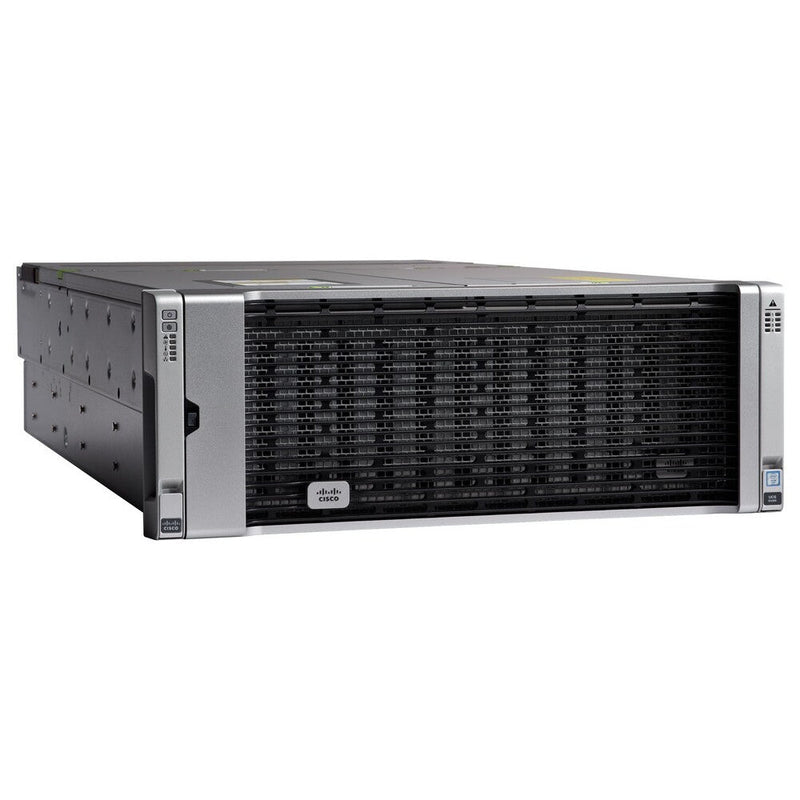

Cisco UCS C3160 560TB 4U Data Center Storage Server (UCSC-C3X60-56HD10)
56x HGST 10TB SAS HDDs, Dual M4 server nodes, 4x Xeon V4 8-core CPUs, 32x 16GB DDR4 RAM modules
Scale-out ready with no bundling of software defined storage (SDS) software, versatile in that you can run VMware vSAN or any other configuration and expand the datacenter's infrastructure with ease.
Ideal for real-time data analytics, enterprise surveillance, object storage, big data warehousing, active backup & restore.
4K native drives work with VMware 6.7 and above. 4Kn drives require UEFI boot.

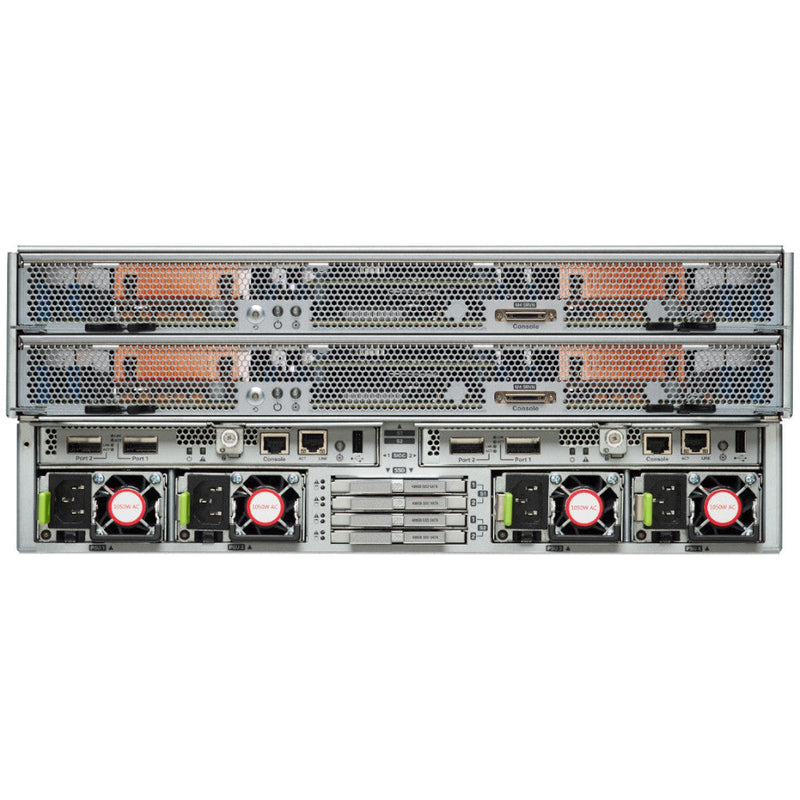

| Nodes: | 2x M4 Server Nodes (Each node with dual Xeon CPUs and 16x 16GB DDR4 ECC RAM modules) |
| CPU: | 4x Intel Xeon E5-2620 V4 server processors (Each CPU: 8 core, 16 thread, 2.1GHz, 85W, 20MB-Cache, 14nm) |
| Memory: | 32x 16GB 2400MHz 1Rx4 DDR4 ECC RAM modules. |
| Storage: | 560TB of raw storage capacity through 56x HGST Ultrastar 10TB 4Kn SAS enterprise hard disk drives (~700TB written) |
| I/O Modules: | 2x fabric (SIOC) I/O controller modules for up to 160Gb of bandwidth to each 4U chassis. |
| Boot Drives: | 4x 480GB Intel S3510 MLC SATA III SSDs (2x for each server node), ~99% SSD health |
| Networking: | 4x 40G QSFP+ transceiver modules (QSFP-40G-SR-BD) |

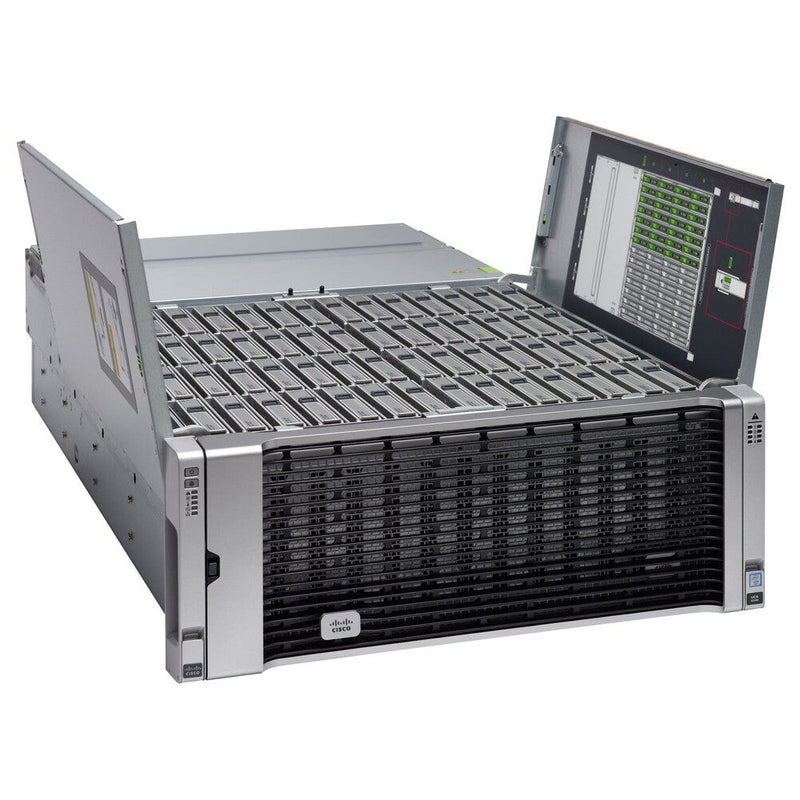

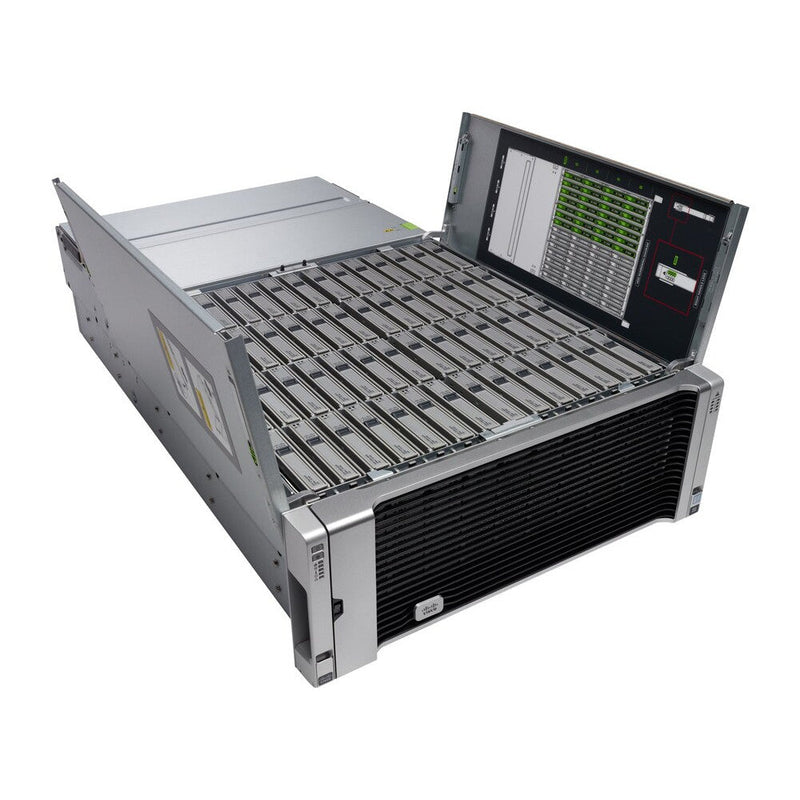

| Enclosure: | 4U rack-unit height, 56x top-loading drive bays, 32-inch depth. |
| Power: | 4x 1050W redundant hot-plug PSU (100-120/200-240V~, 12.5/7A, 50/60Hz) |
Disclaimer
Some references may appear on this website or product descriptions to trademarks belonging to others not affiliated with ServerPartDeals.com (SPD), including references which may not display the ® symbol. All third-party trademarks (including logos and icons) referenced by SPD remain the property of their respective owners. Unless specifically identified as such, SPD’s use of third-party trademarks does not indicate any relationship, sponsorship, or endorsement between SPD and the owners of these trademarks. Any references by SPD to third party trademarks is to identify the corresponding third-party goods and/or services and shall be considered nominative fair use under trademark law.Warning
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
This animation is a visual aid only and does not represent the actual testing methodology, sequence, or results for this drive.
We test every server before you do.
Every server Server Part Deals sells passes an internal 4-stage testing protocol before it ships. While many resellers stop at a basic power-on check, we validate installed hardware, firmware, system performance, thermals, and stability under sustained load. Each server is tested to confirm that it meets or exceeds its listed specifications.
Stage 1: Physical Inspection
- Chassis and structural inspection
- Port, connector, and backplane check
- Fan, heatsink, and airflow inspection
- Shipping-damage and component-security check
Stage 2: Hardware & Firmware Validation
- CPU, RAM, and storage verification
- BIOS and firmware validation
- RAID and controller detection
- Remote-management interface check
Stage 3: Performance Testing
- Processor and memory benchmarking
- Storage and network throughput testing
- Multi-component load simulation
- Power and thermal-performance validation
Stage 4: Stability & System Testing
- Extended burn-in testing
- Hardware-error and event-log review
- Fan, temperature, and power monitoring
- Final boot and configuration verification
