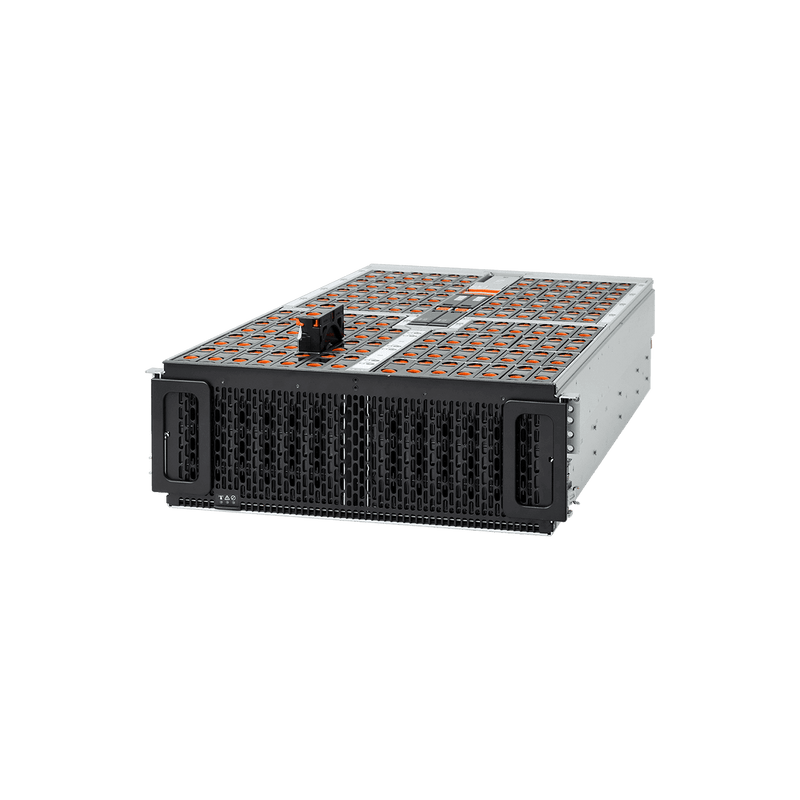

Western Digital Ultrastar Data102 Hybrid Storage Platform SE4U102 | 4U102 102-Bay Data Center JBOD Enclosure | Up to 1.8PB
Western Digital Ultrastar Data102 Hybrid Storage Platform SE4U102 | 4U102 102-Bay Data Center JBOD Enclosure | Up to 1.8PB
By Western Digital

Storage enclosure comes with 102x Ultrastar enterprise hard drives.

Note: JBOD lead times are 2 days before shipping.

Freight Shipping is included in the price.

Many configurations available, contact us via email or call us for custom options.

Tech Brief: IsoVibe and ArcticFlow overview

Western Digital Ultrastar Data102 Hybrid Storage Platform SE4U102 | 4U102 102-Bay Data Center JBOD Enclosure | Up to 1.8PB

$24,684.00
Translation missing: en.general.icons.icon_check_circle icon Out of stock
Order Within: Hours Minutes
To ship on:

Notify me when back in stock

Bulk Orders (20+) +

If you have special requirements for large bulk orders, reach out to the team for assistance.

Contact our sales team

Satisfaction Guaranteed +

We stand behind every product we sell. If you're not completely satisfied with your purchase, we'll make it right.

Learn about our return policy

Our Price Protection Guarantee +

Shop with confidence. If you purchase an item from our site, we guarantee that if the price drops within 7 days from your order, that we will price match your order to the current lower price, upon request. One-time price match per order.

102 Bay Rackmount JBODs

Highlights

  • Up to 102 Ultrastar HDDs (SAS or SATA)
  • Up to 1.8PB raw capacity in 4U using 18TB CMR HDDs
  • Hybrid support for data acceleration tier with SSDs (SAS or SATA) in up to 24 of the drive slots
  • Dual-port SAS for high availability or single-port SATA for low cost
  • Enterprise-grade redundant and hot-swappable PSUs, I/O modules, and fans
  • 5-year limited warranty
  • Many configurations available, contact us via Live Chat or call us for more options

Applications and Workloads

  • SDS Environments
  • Big Data
  • Private Cloud
  • Data Analytics
  • Cloud Infrastructure

IsoVibe Vibration Isolation Technology
Precise cuts in the baseboard provide a suspension for the drives in the chassis, isolating them from transmitted vibration. The result is that consistent performance is maintained, even when all the drives are working hard.

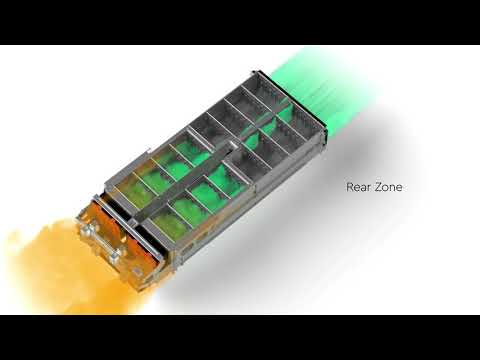

ArcticFlow Thermal Zone Cooling Technology
By introducing cool air into the center of the chassis, drives operate at lower and more consistent temperatures than conventional systems. This results in lower fan speeds, reduced vibration, lower power consumption, quieter operation and ultimately higher reliability.

Max. Drives

102 x 3.5" drive bays
Up to 24 SAS/SATA SSD
Drive Interface

12Gb/s SAS
6Gb/s SATA
Available Drive Capacities

HDD up to 18TB CMR
SSD up to 15.36TB
Host Interface

Dual redundant I/O Modules (IOM)
6 Mini-SAS HD ports per IOM
Weight

Without Drives: 31.8kg (70lbs)
With 60 HDDs: 118.8kg (262lbs)
LED Indicators Front/Rear: Power, ID, Fault
Drive: Activity, Fault
Physical Dimensions

Height: 175mm (6.89")
Width: 447mm (17.61")
Depth: 1047mm (41.25")
Depth in Rack: Max of 1197mm (47.13") w/ dual CMA
Management

SCSI Enclosure Services
Redfish (out of band, via RJ45)
Power

Dual 1600W, 80+ Platinum
200-240V AC input, auto ranging, 50-60Hz
Cooling

4 main enclosure fans, front-to-rear system cooling with zero-loss backflow prevention
1 IO module fan
Dual PSUs with built-in fans
Environmental

Operating Temperature: 5 C to 35 C
Non-op Temperature: -40 to 70 C
Humidity: 5 to 85% relative humidity
Operating Altitude: -300m to 3048m (-984 ft to 10,000 ft)
Sound Power: < 7.2Bels @ 23 C
Serviceability

Cable-free hot-swappable IOM, power supply, fans and drives
